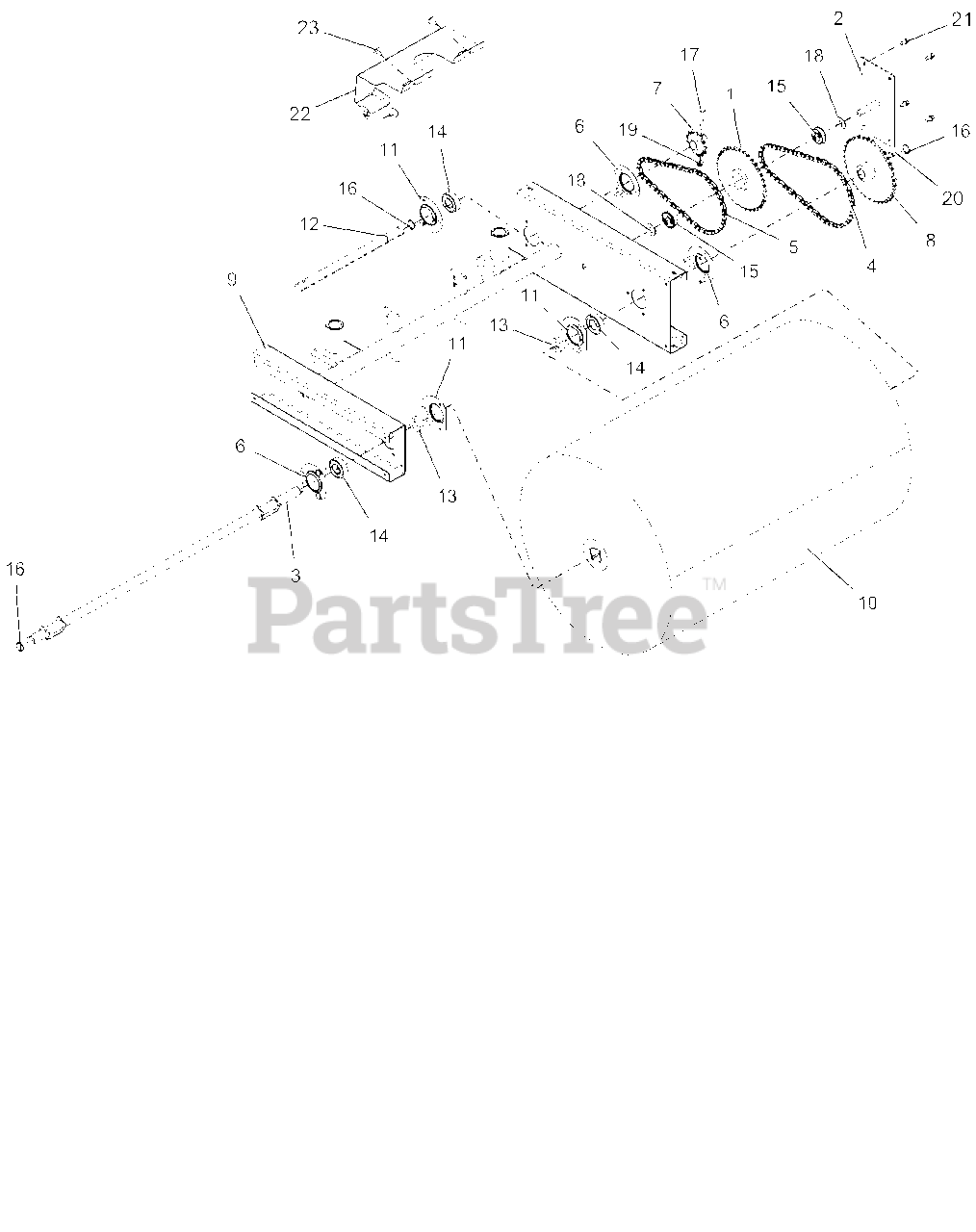

921313 - Ariens 28" Power Brush, 6hp Subaru (SN: 055000 - 055999) Brush Head Parts Diagram

28" Power Brush, 6hp Subaru

Brush Head Parts Diagram

  • Title

1

Ariens 00180600

SPROCKET, REDUCTION IDLER

$158.99

$

Usually ships in 4-12 days

0

2

Ariens 00180859

PLATE, IDLER REDUCTION MOUNT

Note: ORANGE

$40.99

$

Usually ships in 4-12 days

0

3

Ariens 00181200

SHAFT, 28" BRUSH

$85.99

$

Usually ships in 4-12 days

0

4

Ariens 00368500

CHAIN, #40-54 LINKS

$31.99

$

Usually ships in 4-12 days

0

5

Ariens 00386100

CHAIN, #41-50 LINKS

$31.99

$

Usually ships in 4-12 days

0

6

Ariens 00428700

BEARING FLANGE

$19.99

$

In Stock, Qty 11

0

7

Ariens 02997400

SPROCKET, DRIVE

$92.99

$

Usually ships in 4-12 days

0

8

Ariens 02997500

SPROCKET, DRIVEN

$127.99

$

Usually ships in 4-12 days

0

9

Ariens 03278451

FRAME, POWER BROOM-DELUXE

Note: BLACK

$329.99

$

Usually ships in 4-12 days

0

10

Ariens 00180100

BRUSH, 18"DIA X 28"WIDE

$593.99

$

Usually ships in 4-12 days

0

11

Ariens 01014200

BEARING FLANGE

$6.49

$

In Stock, Qty 20+

0

12

Ariens 02997600

SHAFT, TRANSMISSION

$40.99

$

Usually ships in 4-12 days

0

13

Ariens 03634600

SPACER .755X1.250X.370

$8.49

$

Usually ships in 4-12 days

0

14

Ariens 05406300

BRG-BALL .750X1.750X.50

$27.99

$

In Stock, Qty 20+

0

15

Ariens 05480000

BRG-BALL .50X1.38X.438 SEALED

$15.99

$

In Stock, Qty 20+

0

16

Ariens 05714600

RG-RTNG-EXT .689X.078

$2.99

$

In Stock, only 4 left!

0

17

Ariens 05964700

@BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, Qty 5

0

18

Ariens 06400828

WSHR-FL-STL .536X1.07X.109 YZ

$2.99

$

Usually ships in 4-12 days

0

19

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, only 4 left!

0

21

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 04363451

COVER, FRONT SHAFT - CE

Note: BLACK

$

$

Not available

23

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.99

$

In Stock, Qty 12

0
