921313 - Ariens 28" Power Brush, 6hp Subaru (SN: 055000 - 055999) Engine And Belt Drive Parts Diagram

28" Power Brush, 6hp Subaru

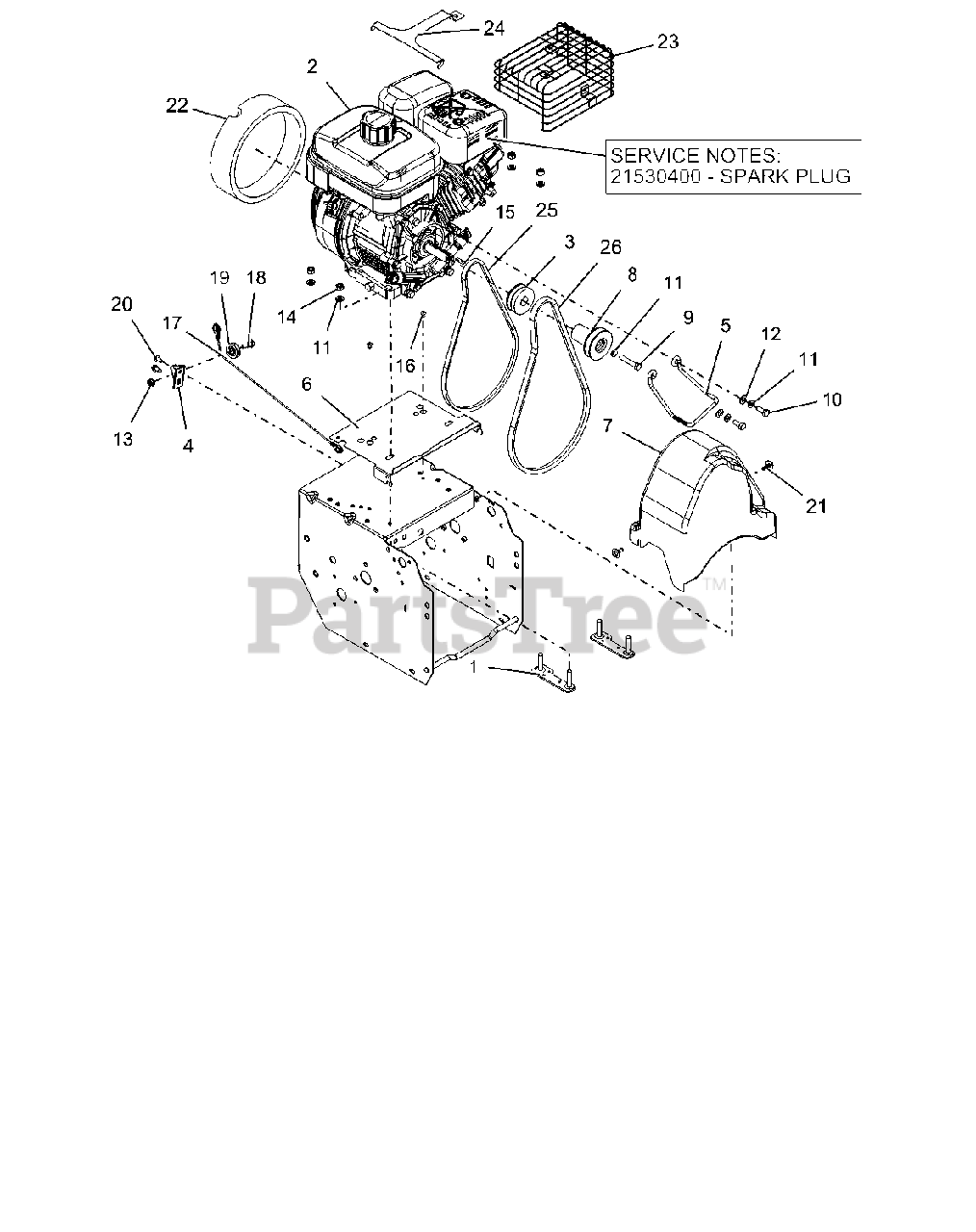

Engine And Belt Drive Parts Diagram

  • Title

1

Ariens 00188400

STRAP, ENGINE BOLT-WELDMENT

$20.99

$

Usually ships in 4-12 days

0

2

Ariens 21530400

PLUG, SPARK - TEC. SNO-THRO

Note: SERVICE PART

$

$

Not available

2

Ariens 08200706

SUBARU EX17 RECOIL ALL-SEASON

$

$

Not available

3

Ariens 00187900

PULLEY, TRACTION

$51.99

$

Usually ships in 4-12 days

0

4

Ariens 00373051

BRACKET, CABLE PULLEY

$20.99

$

Usually ships in 4-12 days

0

5

Ariens 03731800

BELT FINGER

$17.99

$

Usually ships in 4-12 days

0

6

Ariens 04895151

BAFFLE, COMPACT

Note: BLACK

$6.99

$

Usually ships in 4-12 days

0

7

Ariens 04209900

BELT COVER

$20.99

$

Usually ships in 4-12 days

0

8

Ariens 04502900

SHEAVE, AUGER DRIVE

$23.99

$

Usually ships in 4-12 days

0

9

Ariens 05901401

@BLT-HEX .31-24X1.75 GR5 YWZC
(Superseded to 05902007)

$2.99

$

In Stock, Qty 11

0

10

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

12

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

13

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 11

0

14

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

15

Ariens 06606100

KEY-SQ .188X.75X.188

$3.99

$

In Stock, only 1 left!

0

16

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 10

0

17

Ariens 06900505

CABLE, LOWER TRACTION (DELUXE)

Note: DELUXE

$18.99

$

In Stock, Qty 14

0

18

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 6

0

19

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, only 4 left!

0

20

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

In Stock, only 2 left!

0

22

Ariens 03972500

FOAM COVER, RECOIL-SUBARU

$20.99

$

Usually ships in 4-12 days

0

23

Ariens 04042300

GUARD,MUFFLER,SUB 20A-37303-11

$

$

Not available

24

Ariens 04258451

GUARD, SNOW-SUBARU EX17

Note: BLACK

$28.99

$

Usually ships in 4-12 days

0

25

Ariens 07200111

V-BELT, 3L-WRAPPED

Note: NO RUBBER BLEED THRU

$21.99

$

In Stock, Qty 20+

0

26

Ariens 07238500

V-BELT, HA-RAW EDGE

$28.99

$

In Stock, only 3 left!

0
