921313 - Ariens 28" Power Brush, 6hp Subaru (SN: 055000 - 055999) Frame And Shift Controls Parts Diagram

28" Power Brush, 6hp Subaru

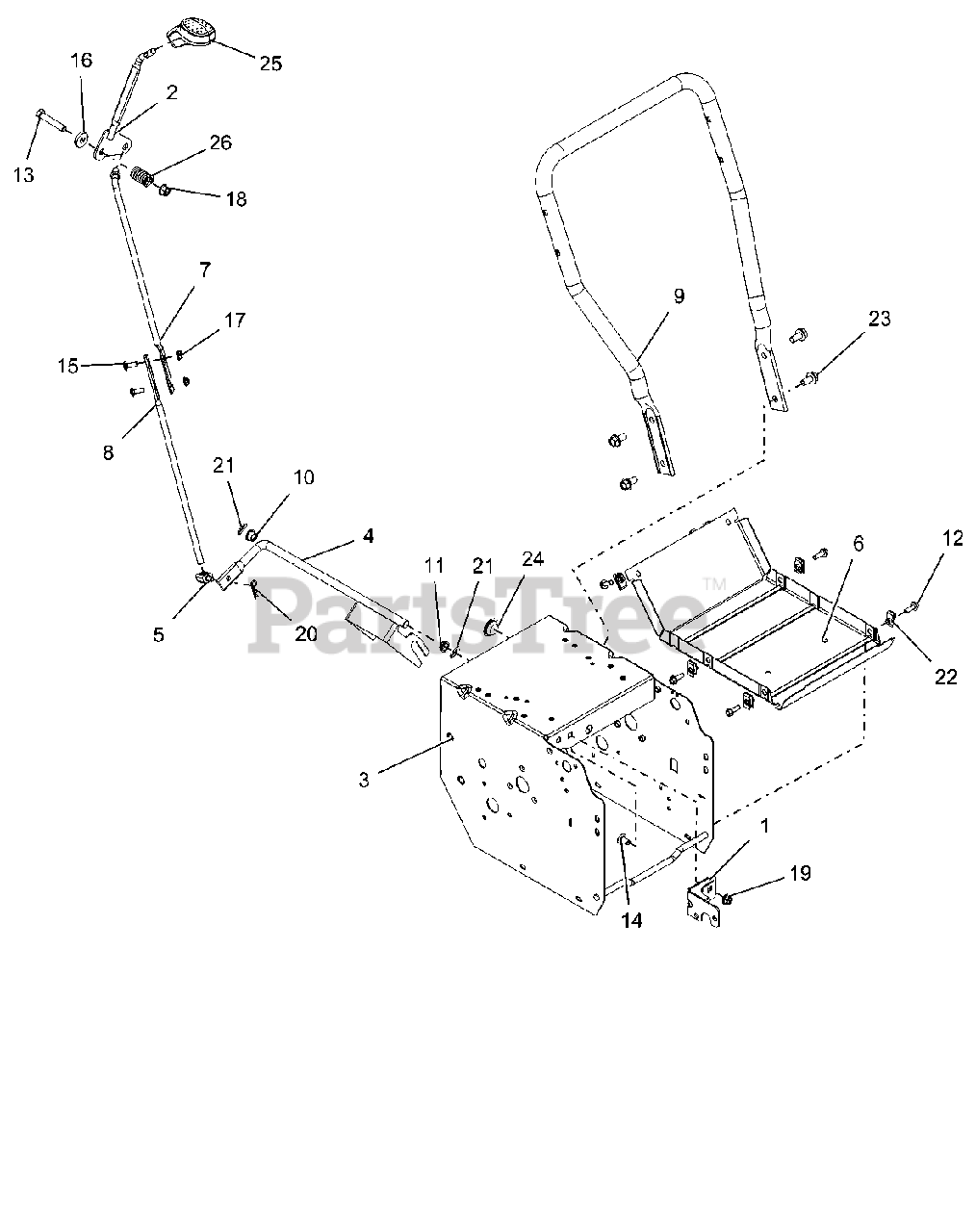

Frame And Shift Controls Parts Diagram

  • Title

1

Ariens 00657059

WELDMENT, FRAME BRACKET

$34.99

$

Usually ships in 4-12 days

0

2

Ariens 04846700

LEVER, CONTROL-SHIFT(WELDMENT)

Note: WELDMENT

$

$

Not available

3

Ariens 04585059

WELDMENT, FRAME - DELUXE 16"

$116.99

$

Usually ships in 4-12 days

0

4

Ariens 04655300

WELDMENT, SHIFT FORK

$46.99

$

Usually ships in 4-12 days

0

5

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

Note: TRUNN

$8.49

$

In Stock, Qty 7

0

6

Ariens 00492359

COVER, BOTTOM

$49.99

$

Usually ships in 4-12 days

0

7

Ariens 04334967

ROD, SHIFT - UPPER
(Superseded to 04334900)

$35.99

$

Usually ships in 4-12 days

0

8

Ariens 04425767

ROD, SHIFT - LOWER

Note: BLACK

$36.99

$

Usually ships in 4-12 days

0

9

Ariens 04749451

HANDLEBAR, LOWER - SM DELUXE

$104.99

$

Usually ships in 4-12 days

0

10

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, only 4 left!

0

11

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 9

0

12

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.99

$

In Stock, Qty 13

0

13

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 19

0

14

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

15

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 8

0

16

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

17

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 9

0

18

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06944800

CLIP, SPRING

$1.49

$

In Stock, Qty 6

0

22

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

23

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.99

$

In Stock, only 3 left!

0

24

Ariens 07500023

PLUG, HOLE - .875" NYLON

$1.99

$

Usually ships in 4-12 days

0

25

Ariens 04816300

KNOB, CONTROL, DASH

$9.49

$

In Stock, Qty 8

0

26

Ariens 08335700

SG-COMP .125X.781X1.250

$9.99

$

In Stock, Qty 8

0
