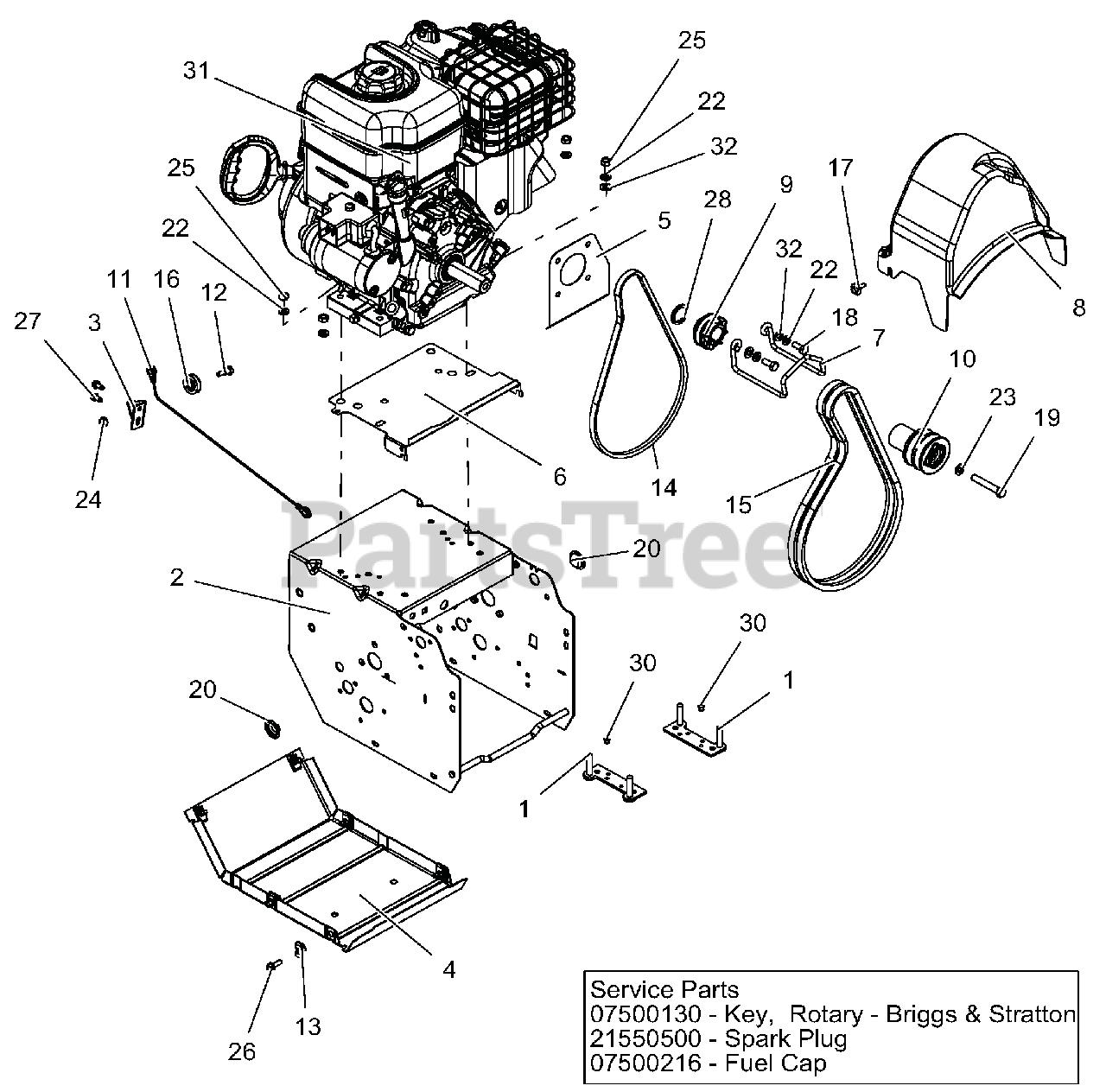

921314 - Ariens Deluxe 28" Snow Blower, Briggs & Stratton (SN: 095000 & Above) Engine, Frame And Belt Drive Parts Diagram

Deluxe 28" Snow Blower, Briggs & Stratton

Engine, Frame And Belt Drive Parts Diagram

  • Title
1

Ariens 00392000

STRAP, ENGINE BOLT-LARGE BRIGG

$15.93

$

Usually ships in 4-12 days

0

2

Ariens 04456159

FRAME, 920/921

$147.58

$

Usually ships in 4-12 days

0

3

Ariens 00373051

BRACKET, CABLE PULLEY

$20.24

$

In Stock, only 1 left!

0

4

Ariens 00492359

COVER, BOTTOM

$47.29

$

Usually ships in 4-12 days

0

5

Ariens 03815251

BAFFLE, PRIMARY WATER

$

$

Not available

6

Ariens 03880751

BAFFLE, BRIGGS MDL 20/21 WATER

$15.93

$

Usually ships in 4-12 days

0

7

Ariens 03882100

FINGER, BELT

$19.12

$

Usually ships in 4-12 days

0

8

Ariens 04083900

BELT COVER

$25.99

$

Usually ships in 4-12 days

0

9

Ariens 04409100

SHEAVE, DRIVE

$9.45

$

In Stock, only 3 left!

0

10

Ariens 04498700

SHEAVE,ATTACHMENT 2-GRV

$39.07

$

Usually ships in 4-12 days

0

11

Ariens 06900505

CABLE, LOWER TRACTION (DELUXE)

Note: (DELUXE)

$21.19

$

In Stock, Qty 7

0

12

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.58

$

Usually ships in 4-12 days

0

13

Ariens 07009000

NUT-RTNR .25-20X.56

$2.24

$

In Stock, Qty 20+

0

14

Ariens 07200111

V-BELT, 3L-WRAPPED

Note: (NO RUBBER BLEED THRU)

$19.90

$

In Stock, Qty 20+

0

15

Ariens 07200514

V-BELT, HA-RAW EDGE (SET)

Note: (SET)

$45.78

$

In Stock, Qty 20+

0

16

Ariens 07300012

PULLEY, CABLE

$6.65

$

In Stock, Qty 8

0

17

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.80

$

In Stock, Qty 7

0

18

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$2.24

$

In Stock, Qty 20+

0

19

Ariens 05901307

BLT-HEX .38-24X2.25 YWZC GR5
(Superseded to 05902006)

$3.63

$

Usually ships in 4-12 days

0

20

Ariens 07500023

PLUG, HOLE - .875" NYLON

$2.18

$

Usually ships in 4-12 days

0

22

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$2.24

$

In Stock, Qty 20+

0

23

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$2.52

$

In Stock, Qty 19

0

24

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$1.96

$

In Stock, Qty 8

0

25

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.96

$

In Stock, Qty 20+

0

26

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.96

$

In Stock, Qty 20+

0

27

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$2.24

$

In Stock, Qty 20+

0

28

Ariens 06400924

WSHR-FL-NYL 1.03 X 1.31 X .134

$2.74

$

Usually ships in 4-12 days

0

30

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (#64) YWZC

$1.96

$

In Stock, Qty 5

0

31

Ariens 08200503

ENGINE, BRIGGS SNOW 1450, 240V

Note: (240V)

$

$

Not available

32

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$2.52

$

In Stock, Qty 20+

0
