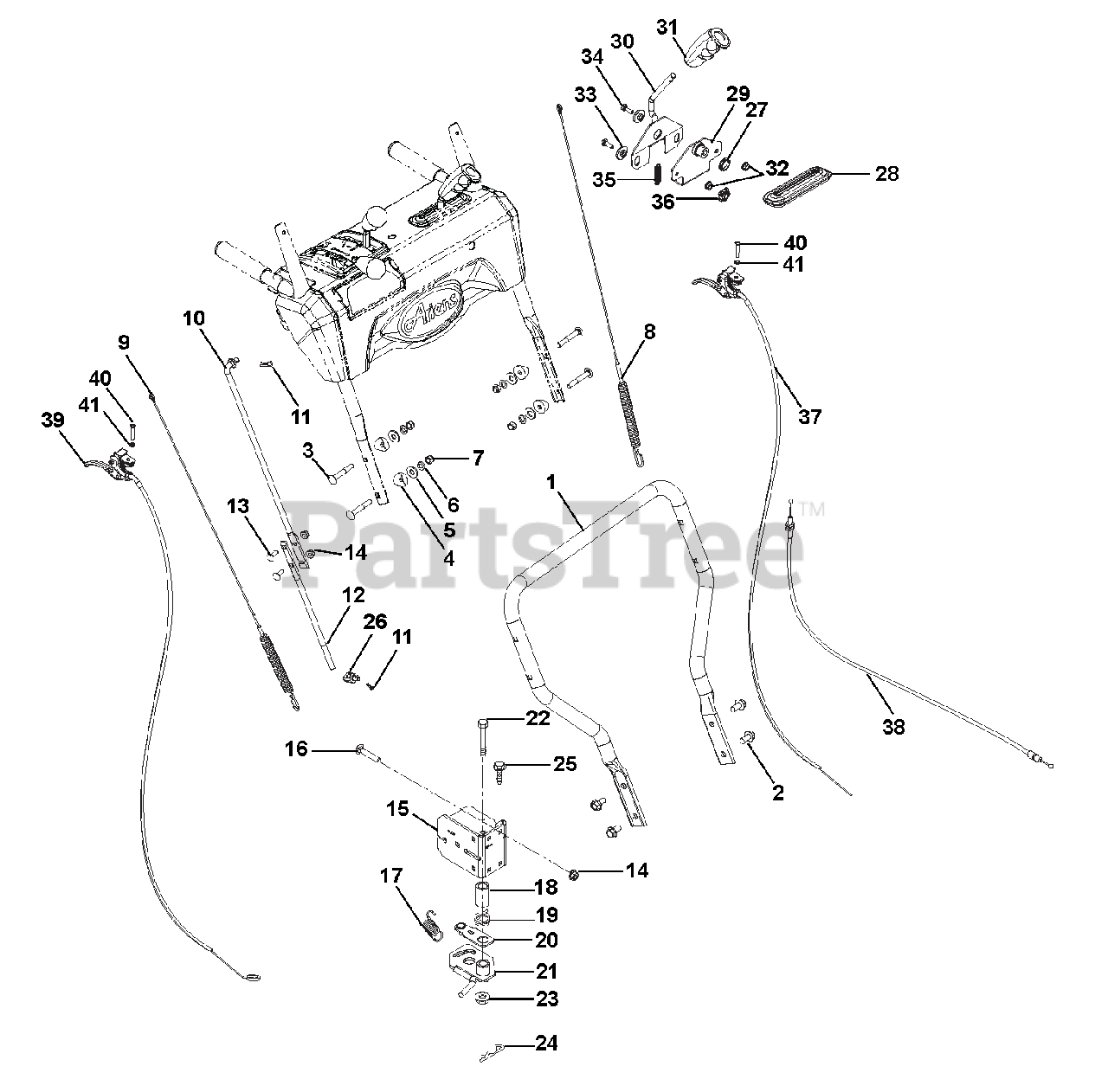

921317 - Ariens Deluxe 24" Track Snow Blower (SN: 000101 - 094999) Handlebars, Lever Controls, Panel And Dash Parts Diagram

Deluxe 24" Track Snow Blower

Handlebars, Lever Controls, Panel And Dash Parts Diagram

  • Title

1

Ariens 00866251

HANDLEBAR, LOWER - DELUXE

$186.99

$

Usually ships in 4-12 days

0

2

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.99

$

In Stock, only 3 left!

0

3

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$3.49

$

Usually ships in 4-12 days

0

4

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 5

0

5

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

6

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

7

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06900502

CABLE, UPPER TRACTION

$35.99

$

In Stock, only 4 left!

0

9

Ariens 06900439

CABLE, AUGER (DELUXE & PRO)

$31.99

$

In Stock, only 2 left!

0

10

Ariens 04336367

ROD, SHIFT - UPPER
(Superseded to 04336300)

$31.99

$

Usually ships in 4-12 days

0

11

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 04343867

ROD, SHIFT - LOWER

$35.99

$

Usually ships in 4-12 days

0

13

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 7

0

14

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (921013, 017, 018, 022, 031)

$1.49

$

In Stock, Qty 11

0

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (921023, 316, 317)

$1.49

$

In Stock, Qty 11

0

15

Ariens 03293951

BRACKET, HEIGHT ADJUSTER

Note: (921023, 316, 317)

$23.99

$

Usually ships in 4-12 days

0

16

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

Note: (921023, 316, 317)

$1.49

$

In Stock, Qty 7

0

17

Ariens 08300103

SPRING-EXT .047 X .438 X 1.85

Note: (921023, 316, 317)

$2.49

$

In Stock, Qty 16

0

18

Ariens 05500106

BSHG-SLV .385X.500X1.045

Note: (921023, 316, 317)

$1.99

$

In Stock, Qty 20+

0

19

Ariens 08300015

SG-TORS .067X.88

Note: (921023, 316, 317)

$2.49

$

In Stock, Qty 5

0

20

Ariens 03376200

ARM, OVERTRAVEL

Note: (921023, 316, 317)

$11.99

$

Usually ships in 4-12 days

0

21

Ariens 03294000

LOCK, HEIGHT ADJUSTER

Note: (921023, 316, 317)

$11.99

$

Usually ships in 4-12 days

0

22

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

Note: (921023, 316, 317)

$1.99

$

In Stock, only 4 left!

0

23

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

Note: (921023, 316, 317)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

Note: (921023, 316, 317)

$0.99

$

In Stock, Qty 5

0

25

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (921023, 316, 317)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$8.49

$

In Stock, Qty 7

0

27

Ariens 05500027

BUSHING, POLYLINER-.75 SNAPIN

Note: (921017, 018)

$2.49

$

In Stock, Qty 7

0

28

Ariens 04318600

GROMMET-BOOT, QUICKTURN

Note: (921017, 018)

$16.99

$

Usually ships in 4-12 days

0

29

Ariens 00184800

MOUNT, CHUTE CONTROL

Note: (921017, 018)

$59.99

$

Usually ships in 4-12 days

0

30

Ariens 04321800

LEVER, CHUTE CONTROL

Note: (921017, 018)

$50.99

$

Usually ships in 4-12 days

0

31

Ariens 07500205

CONTROL HANDLE, QUICK TURN

Note: (921017, 018)

$10.99

$

In Stock, only 1 left!

0

32

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (921017, 018)

$1.49

$

In Stock, Qty 11

0

33

Ariens 05500004

BSHG-FLG .265X.448X.243X1.00

Note: (921017, 018)

$3.99

$

In Stock, only 1 left!

0

34

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: (921017, 018)

$1.49

$

In Stock, Qty 13

0

35

Ariens 08310900

SG-TENS .048X.44X1.75 WLD 9

Note: (921017, 018)

$6.49

$

In Stock, Qty 8

0

36

Ariens 04322700

CRANK BUSHING, NYLON CHUTE BK

$5.49

$

In Stock, Qty 7

0

37

Ariens 06900509

CABLE, TRIGGER, REMOTE WHEEL

Note: (921013, 022, 027)

$65.99

$

Usually ships in 4-12 days

0

38

Ariens 06900421

CABLE, CHUTE LOCK

Note: (921017, 018)

$37.99

$

In Stock, only 2 left!

0

39

Ariens 06900510

CABLE, TRACK REMOTE

Note: (921023, 316, 317)

$65.99

$

In Stock, only 2 left!

0

40

Ariens 06100007

SCR-MCH .25-20X1.50 OVAL HD
(Superseded to 06100236)

Note: (921013, 022, 023, 027, 316, 317)

$3.99

$

In Stock, only 1 left!

0

41

Ariens 06305200

WSHR-LK-INT .250 TH TYA

Note: (921013, 022, 023, 027, 316, 317)

$3.49

$

Usually ships in 4-12 days

0
