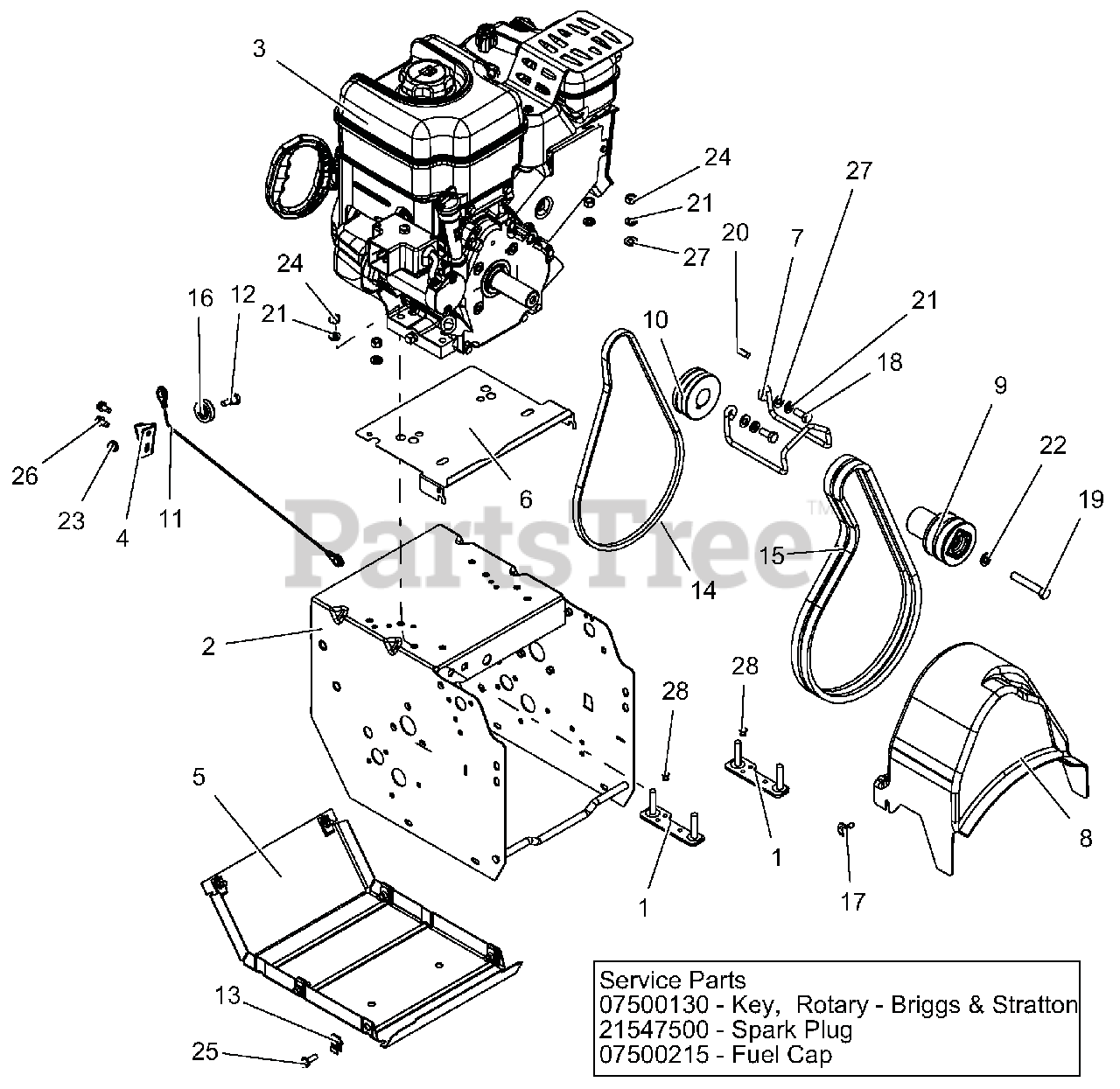

921317 - Ariens Deluxe 24" Track Snow Blower (SN: 095000 - 097999) Engine, Frame And Belt Drive Parts Diagram

Deluxe 24" Track Snow Blower

Engine, Frame And Belt Drive Parts Diagram

  • Title

1

Ariens 00188400

STRAP, ENGINE BOLT-WELDMENT

$21.99

$

Usually ships in 4-12 days

0

2

Ariens 04456159

FRAME, 920/921

$153.99

$

Usually ships in 4-12 days

0

3

Ariens 08200805

ENGINE, BRIGGS SNOW 1150, 240V

Note: (240V)

$

$

Not available

4

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$5.49

$

Usually ships in 4-12 days

0

5

Ariens 00492359

COVER, BOTTOM

$49.99

$

In Stock, only 1 left!

0

6

Ariens 03880851

BAFFLE,ENGINE,SMALL BLOCK

$65.99

$

Usually ships in 4-12 days

0

7

Ariens 03882100

FINGER, BELT

$23.99

$

In Stock, only 4 left!

0

8

Ariens 04083900

BELT COVER

$29.99

$

In Stock, only 2 left!

0

9

Ariens 04498700

SHEAVE,ATTACHMENT 2-GRV

$46.99

$

Usually ships in 4-12 days

0

10

Ariens 04542600

SHEAVE DRIVE

$171.99

$

Usually ships in 4-12 days

0

11

Ariens 06900505

CABLE, LOWER TRACTION (DELUXE)

Note: (DELUXE)

$20.99

$

In Stock, only 2 left!

0

12

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, only 4 left!

0

13

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

14

Ariens 07200114

V-BELT, 3L-WRAPPED

Note: (NO RUBBER BLEED THRU)

$25.99

$

In Stock, only 3 left!

0

15

Ariens 07200514

V-BELT, HA-RAW EDGE (SET)

Note: (SET)

$60.99

$

In Stock, only 4 left!

0

16

Ariens 07300012

PULLEY, CABLE

$5.49

$

In Stock, only 2 left!

0

17

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.99

$

In Stock, only 2 left!

0

18

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, only 1 left!

0

19

Ariens 05901307

BLT-HEX .38-24X2.25 YWZC GR5
(Superseded to 05902006)

$4.99

$

Usually ships in 4-12 days

0

20

Ariens 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, Qty 8

0

21

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

22

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 18

0

23

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 9

0

24

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

25

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.99

$

In Stock, Qty 15

0

26

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (#64) YWZC

$1.49

$

In Stock, only 3 left!

0
