921319 - Ariens Deluxe 24" Snow Blower, Ariens AX 254cc engine (SN: 000101 - 097999)

Deluxe 24" Snow Blower, Ariens AX 254cc engine

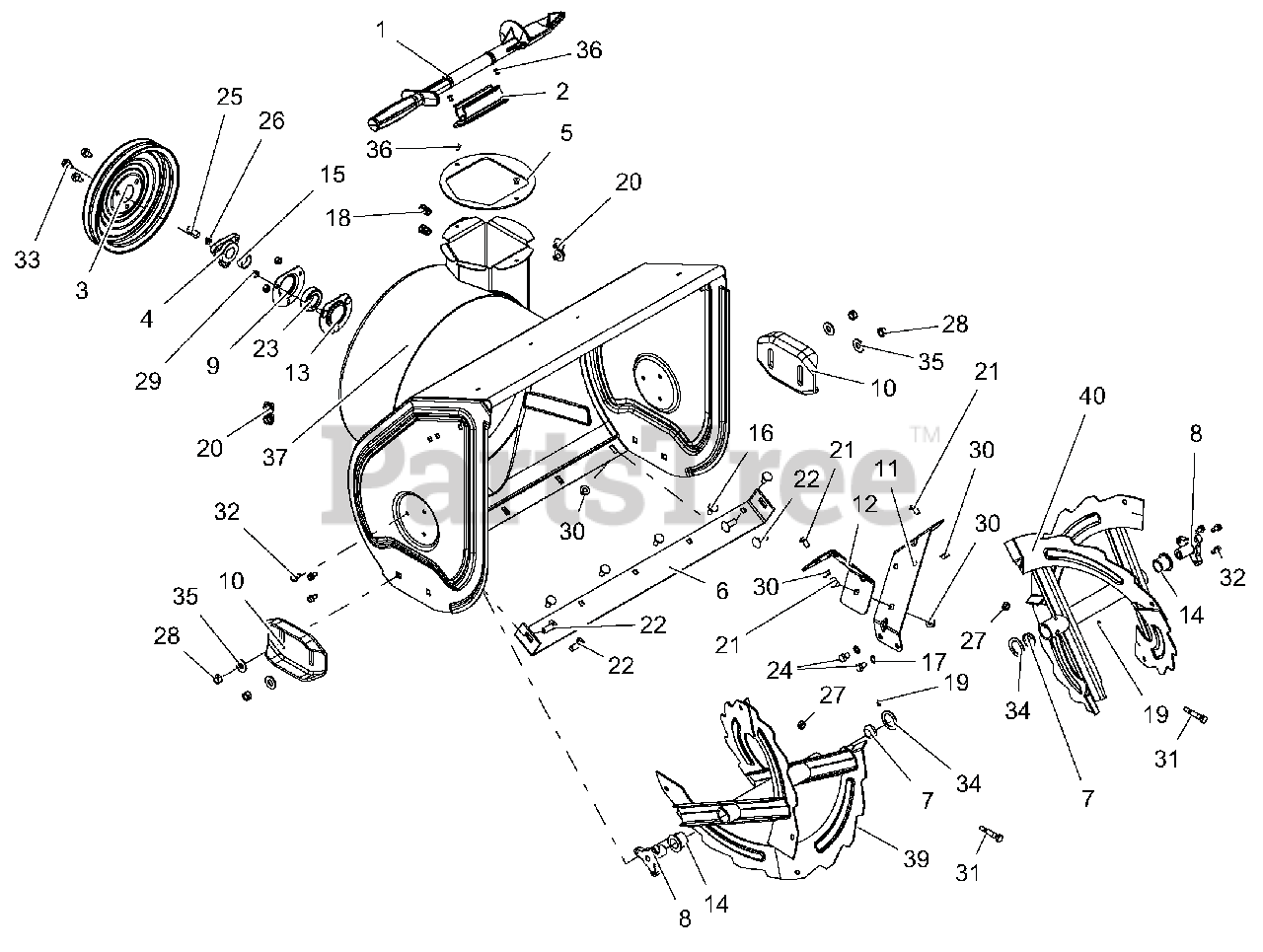

921319 - Ariens Deluxe 24" Snow Blower, Ariens AX 254cc engine (SN: 000101 - 097999) > Parts Diagrams (12) > Auger And Housing - 24 in.

  • Title
00170200

1

DEVICE, SNOW CLEAN OUT

Part# 00170200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $17.61

00170300

2

MOUNT, SNOW CLEAN OUT

Part# 00170300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

00268700

3

PULLEY, SPIN FORM DUAL GROOVE

Part# 00268700 (Superseded to 00268751)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $61.43

00268702

4

PULLEY HUB, D-BORE .87 DELUXE

Part# 00268702

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

00600100

5

BAFFLE, DISCHARGE NECK

Part# 00600100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

00658559

6

BLADE, SCRAPER-24"

Part# 00658559

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.30

04444000

7

PLUG, RAKE TUBE

Part# 04444000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

00659200

8

SUPPORT, RAKE BUSHING

Part# 00659200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

01014200

9

BEARING FLANGE

Part# 01014200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

02483859

10

SKID SHOE, REVERSIBLE - ORANGE

Part# 02483859

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $17.83

04319151

11

BRACKET, GEARCASE SUPPORT - LH

Part# 04319151

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.39

04319251

12

BRACKET, GEARCASE SUPPORT - RH

Part# 04319251

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.39

00428700

13

BEARING FLANGE

Part# 00428700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.71

05500114

14

BSHG-FLG, NY.778 ID X 1.018 OD

Part# 05500114

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05501109

15

BSHG-SPCR .895IDX1.065ODX.353

Part# 05501109

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06200209

16

BOLT, MODIFIED HEAD CARRIAGE

Part# 06200209

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06307200

17

@WSHR-LK-EXT.326X.599X.031YWZC

Part# 06307200

OEM Warranty Repair Part for Ariens

Not available

07001612

18

NUT, THREADED INSERT .38-16

Part# 07001612

OEM Warranty Repair Part for Ariens

Not available

07061300

19

ZERK,FITTING .25X.125 DRIVE IN

Part# 07061300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

07400030

20

SCR-TAP.31-18X.50 HWH TR YWZ

Part# 07400030

OEM Warranty Repair Part for Ariens

Not available

06200118

21

BLT-RDHDSQSHNK.31-18X.62 YZ-LK

Part# 06200118 (Superseded to 06200304)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

06212000

22

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ

Part# 06212000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05409300

23

BRG-BALL .876 X 1.750 X .50

Part# 05409300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $42.43

05947200

24

@BLT-HEX .31-18X.50 GR5 YWZC

Part# 05947200

OEM Warranty Repair Part for Ariens

Not available

05947300

25

BLT-HEX .31-24X.75 YWZC GR5

Part# 05947300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06307400

26

WSHR-LK .312X.097 HVY YWZC

Part# 06307400

OEM Warranty Repair Part for Ariens

Not available

06529800

27

@NUT-LK-CTR .31-18 YWZC

Part# 06529800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06529600

28

@NUT-LK-CTR .38-16 YWZC

Part# 06529600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06529700

29

@NUT-LK-CTR .25-20 YWZC

Part# 06529700

OEM Warranty Repair Part for Ariens

Not available

06543100

30

@NUT-LK-TOP-FLG .31-18 YWZC

Part# 06543100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.62

52100100

31

SHEAR BOLT SERVICE ASSEMBLY

Part# 52100100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.42

07400034

32

SCR-TAP .25-20X.50 HWH TR YWZ

Part# 07400034

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07411500

33

@SCR-TAP .31-18X.50 HWH TR YWZ

Part# 07411500 (Superseded to 07400124)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06436300

34

WSHR-FL-STL 1.010X1.505X.062YZ

Part# 06436300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06435900

35

@WSHR-FL-STL.438X1.00X.083 YWZ

Part# 06435900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06800028

36

RVT-POP .187 YZ

Part# 06800028

Note: (#64) YWZC

OEM Warranty Repair Part for Ariens

Not available

52101700

37

BLOWER HOUSING W/DECAL 24"

Part# 52101700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $332.60

52102700

39

RAKE, RH W/ZERK - 24"

Part# 52102700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $87.88

52102600

40

RAKE, LH W/ZERK - 24"

Part# 52102600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $87.88
