921319 - Ariens Deluxe 24" Snow Blower, Ariens AX 254cc engine (SN: 000101 - 097999) Wheels And Axles Parts Diagram
Deluxe 24" Snow Blower, Ariens AX 254cc engine

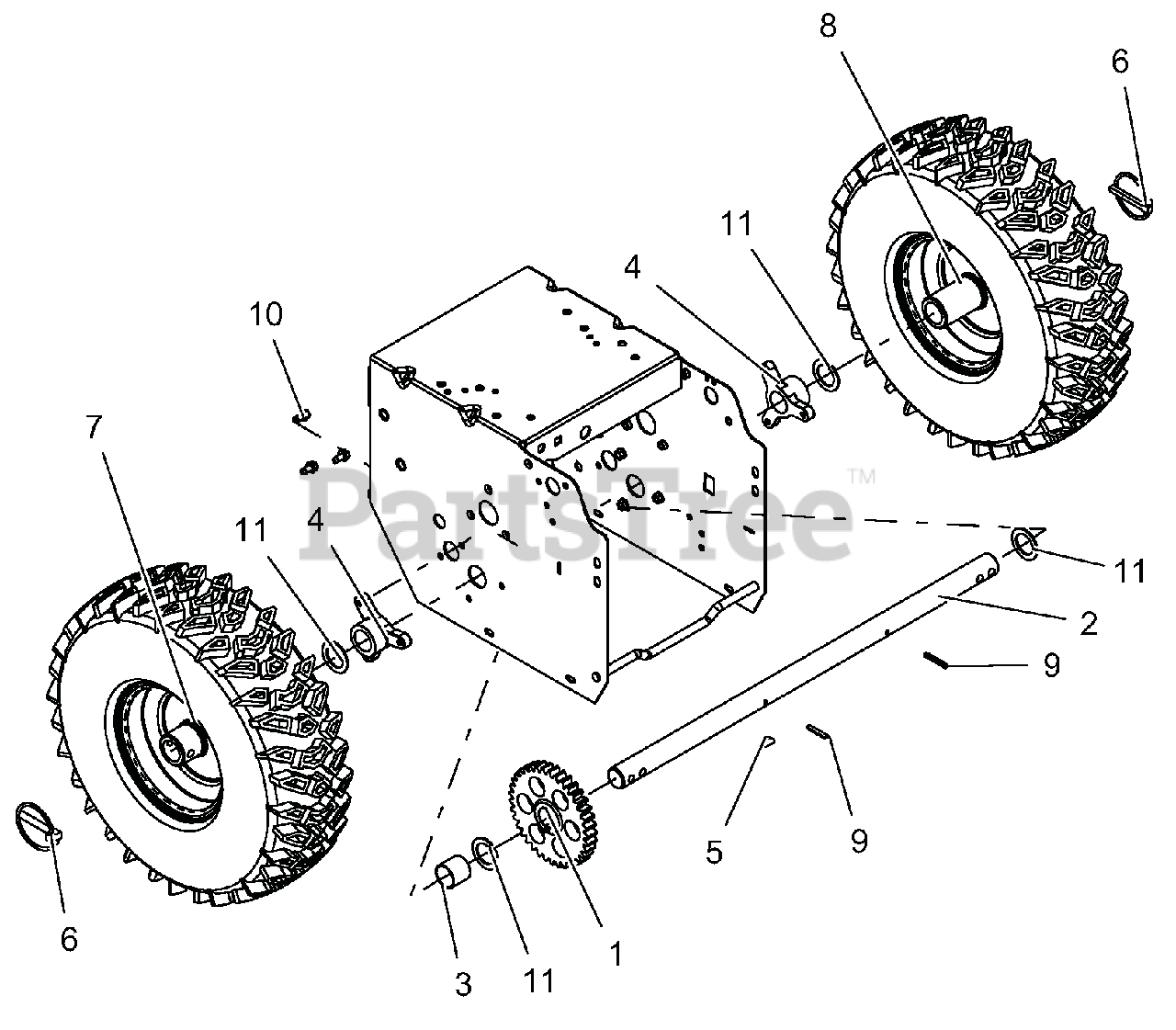

Wheels And Axles Parts Diagram
Ariens 00371000
GEAR, SPUR
$54.99
$
In Stock, only 2 left!
Ariens 00658100
AXLE, 1.00" SOLID
$91.99
$
Usually ships in 4-12 days
Ariens 05500122
BSHG-SLV, 1.012X1.125X1.00
$3.99
$
In Stock, Qty 15
Ariens 05500829
BUSHING, AXLE
$10.99
$
In Stock, only 2 left!
Ariens 06601200
KEY-WDRF .25X.750X.313 SAE91
$3.49
$
In Stock, Qty 19
Ariens 07015800
PIN-LOK .31X2.00
$7.49
$
Usually ships in 4-12 days
Ariens 07100225
TIRE/WHEEL, RH 15X5.00-6 PIN
$
$
Not available
Ariens 07100226
TIRE/WHEEL, LH 15X5.00-6 PIN
$
$
Not available
Ariens 05800300
PIN-ROLL .188X1.25
$0.99
$
In Stock, Qty 14
$0.99
$
In Stock, Qty 20+
$1.99
$
In Stock, Qty 16
