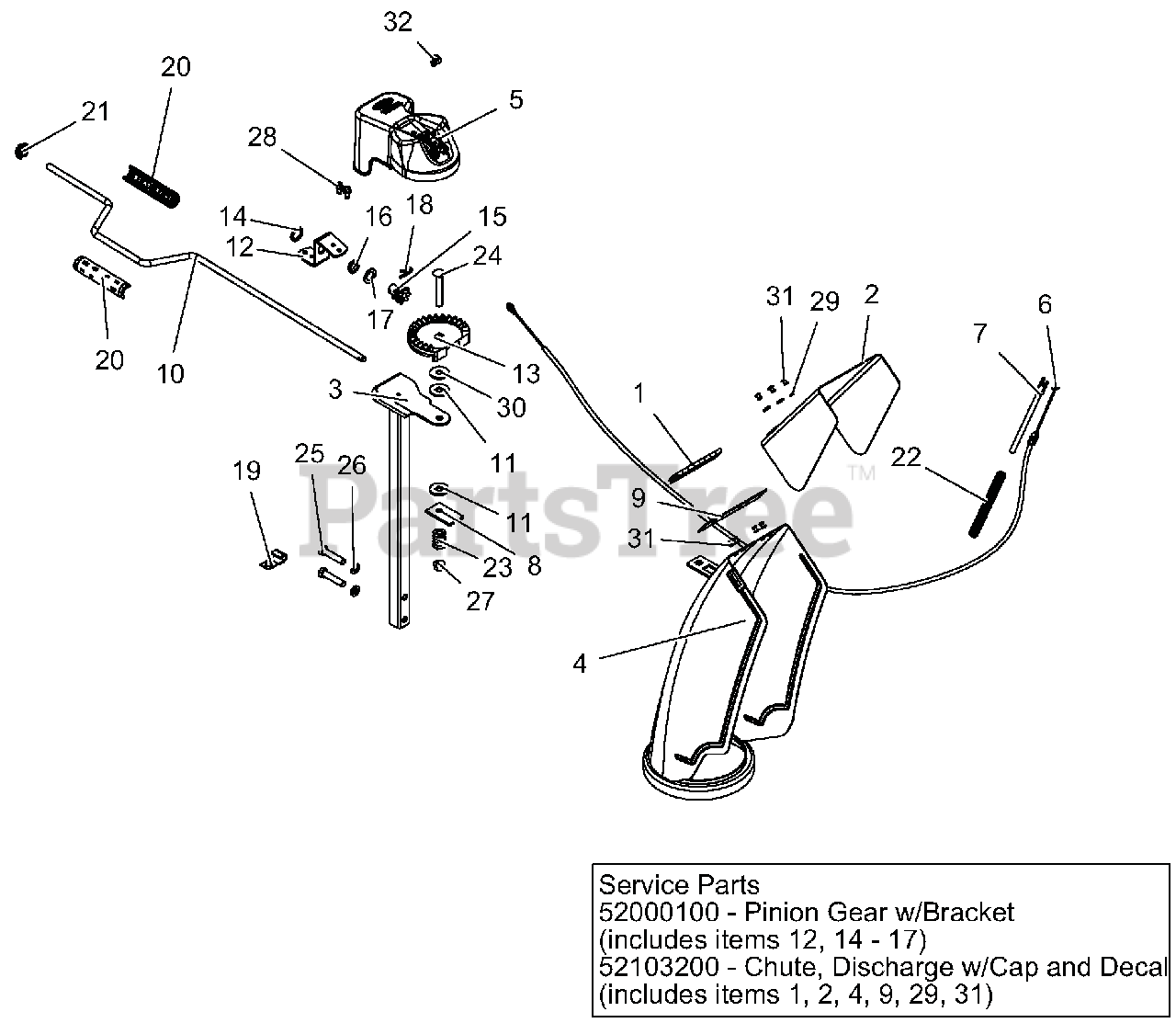

921322 - Ariens Deluxe 28" Track Snow Blower, Ariens AX 254cc engine (SN: 000101 & Above) > Parts Diagrams (12) > Dischargre Chute - Crank

  • Title
00170100

1

HINGE

Part# 00170100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

00387759

2

CAP, LARGE

Part# 00387759

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.07

00658351

3

PEDESTAL, CHUTE - CRANK

Part# 00658351

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $49.14

03985359

4

WELDMENT, DISCHARGE CHUTE

Part# 03985359

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $74.35

52105600

5

DELUXE COVER W/SHEAR BOLTS KIT

Part# 52105600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $36.84

06900406

6

CABLE, DEFLECTOR-COATED

Part# 06900406

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $42.43

00389000

7

ROD, DEFLECTOR CAP

Part# 00389000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.71

00398000

8

PLATE, FRICTION

Part# 00398000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.65

00628400

9

CAP SEAL 5.50

Part# 00628400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

00956500

10

ROD, CHUTE CRANK

Part# 00956500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $36.84

01123800

11

FRICTION WASHER

Part# 01123800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

01972451

12

BRACKET, PINION GEAR

Part# 01972451

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $12.24

03222900

13

CHUTE GEAR

Part# 03222900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

03224300

14

PUSHNUT .625

Part# 03224300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

03735300

15

PINION GEAR - CHUTE

Part# 03735300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.36

05500021

16

BUSHING, POLYLINER-.63 SNAPIN

Part# 05500021

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06400009

17

WSHR-THRST .625 X 1.0 X .03

Part# 06400009

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06714500

18

PIN, SPRING CLIP

Part# 06714500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06909400

19

J-CLAMP

Part# 06909400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

07500020

20

KNOB, CRANK-SNAP

Part# 07500020

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

04322700

21

CRANK BUSHING, NYLON CHUTE BK

Part# 04322700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

08300013

22

SG-COMP .08X.40X6.50 14#/IN

Part# 08300013

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

08320900

23

SG-COMP .187X.56X1.62

Part# 08320900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

06224400

24

@BLT-RDHDSQNK .38-16X2.50 G5YZ

Part# 06224400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05958500

25

@BLT-HEX .38-16X1.75 GR5 YWZC

Part# 05958500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06308800

26

@WSHR-LK .38X.094 REG YWZC

Part# 06308800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

06542000

27

@NUT-LK-TOP-FLG .38-16 YWZC

Part# 06542000 (Superseded to 06500822)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07400034

28

SCR-TAP .25-20X.50 HWH TR YWZ

Part# 07400034

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06400003

29

WSHR-FL-STL .196X.500X.06 YZ

Part# 06400003

OEM Warranty Repair Part for Ariens

Not available

06400917

30

@WSHR-FL-STL .406X1.25X.10 ZC

Part# 06400917

OEM Warranty Repair Part for Ariens

Not available

06800028

31

RVT-POP .187 YZ

Part# 06800028

Note: (#64) YWZC

OEM Warranty Repair Part for Ariens

Not available

07400104

32

SCR-TAP .25-20X.50 LGHWH TR YZ

Part# 07400104

OEM Warranty Repair Part for Ariens

Not available
