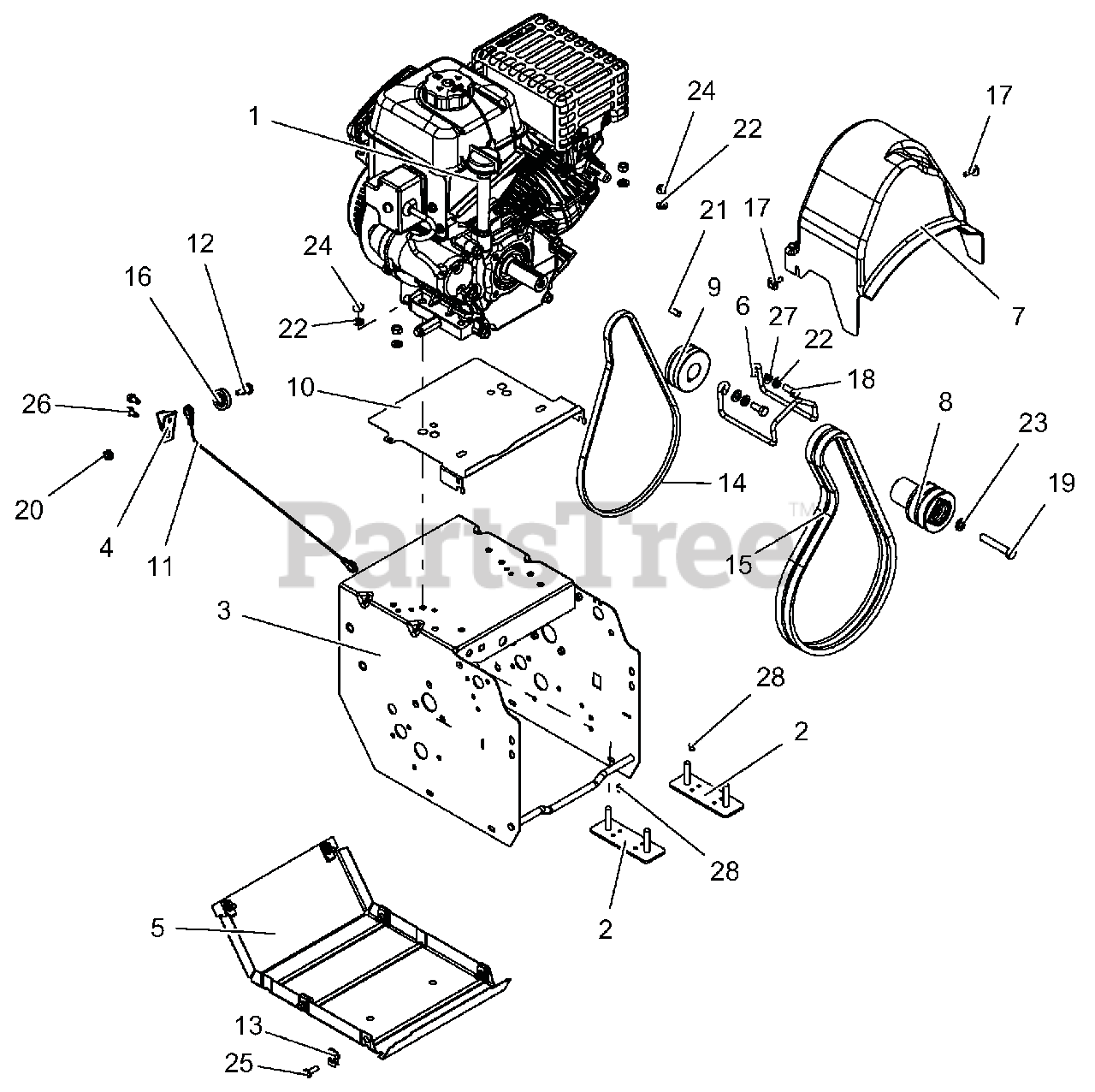

921322 - Ariens Deluxe 28" Track Snow Blower, Ariens AX 254cc engine (SN: 000101 & Above) > Parts Diagrams (12) > Engine, Frame And Belt Drive

  • Title
08200920

1

ENGINE, ARIENS AX254 240V/60W

Part# 08200920

OEM Warranty Repair Part for Ariens

Not available

04637900

2

STRAP,ENGINE BOLT,ARIENS SML

Part# 04637900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

04649559

3

WELDMENT, FRAME - DLX HYBRID

Part# 04649559

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.66

00373051

4

BRACKET, CABLE PULLEY

Part# 00373051

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.39

00492359

5

COVER, BOTTOM

Part# 00492359

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $42.99

03882100

6

FINGER, BELT

Part# 03882100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

04083900

7

BELT COVER

Part# 04083900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

04498700

8

SHEAVE,ATTACHMENT 2-GRV

Part# 04498700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.07

04542600

9

SHEAVE DRIVE

Part# 04542600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $49.14

04637851

10

BAFFLE,ENGINE,ARIENS SML BLOCK

Part# 04637851

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06900505

11

CABLE, LOWER TRACTION (DELUXE)

Part# 06900505

Note: (DELUXE)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

07000021

12

BOLT, SHLDR-.375X.375X.25-20

Part# 07000021

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

07009000

13

NUT-RTNR .25-20X.56

Part# 07009000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07200114

14

V-BELT, 3L-WRAPPED

Part# 07200114

Note: (NO RUBBER BLEED THRU)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $31.25

07200514

15

V-BELT, HA-RAW EDGE (SET)

Part# 07200514

Note: (SET)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $41.31

07300012

16

PULLEY, CABLE

Part# 07300012

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

07400108

17

SCR-TAP .25-20X.5 CAPTIVE

Part# 07400108

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

05947300

18

BLT-HEX .31-24X.75 YWZC GR5

Part# 05947300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05901307

19

BLT-HEX .38-24X2.25 YWZC GR5

Part# 05901307

OEM Warranty Repair Part for Ariens

Not available

06500710

20

@NUT-LK-CTR-FLG .25-20 YWZC

Part# 06500710

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06602700

21

KEY-SQ .25X.625X.25 SAE 8630

Part# 06602700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06307400

22

WSHR-LK .312X.097 HVY YWZC

Part# 06307400

OEM Warranty Repair Part for Ariens

Not available

06308800

23

@WSHR-LK .38X.094 REG YWZC

Part# 06308800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06529200

24

@NUT-HEX .31-18 YWZC

Part# 06529200

OEM Warranty Repair Part for Ariens

Not available

05900019

25

BLT-HEX .25-20X.75 HWH YZ GR5

Part# 05900019

OEM Warranty Repair Part for Ariens

Not available

07400034

26

SCR-TAP .25-20X.50 HWH TR YWZ

Part# 07400034

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06437200

27

@WSHR-FL-STL.344X.688X.065YWZC

Part# 06437200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06800028

28

RVT-POP .187 YZ

Part# 06800028

Note: (#64) YWZC

OEM Warranty Repair Part for Ariens

Not available
