921323 - Ariens Deluxe 24" Snow Blower, Ariens AX 254cc engine (SN: 035126 - 099999) Auger And Impeller - 24" Parts Diagram

Deluxe 24" Snow Blower, Ariens AX 254cc engine

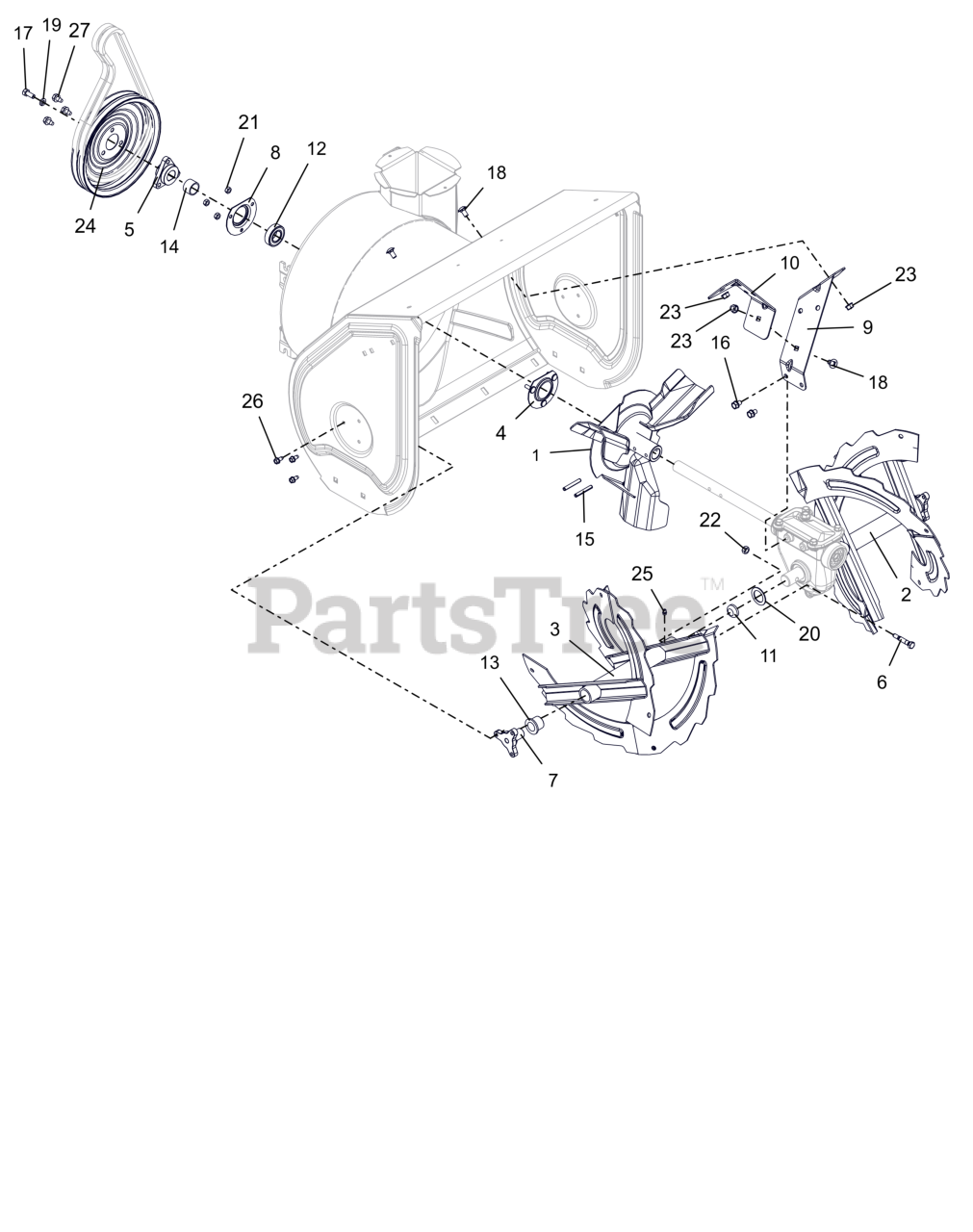

Auger And Impeller - 24" Parts Diagram

  • Title

1

Ariens 00485551

IMPELLER, 3 BLADE-14"

$100.99

$

In Stock, only 3 left!

0

2

Ariens 52102600

RAKE, LH W/ZERK - 24"

$94.99

$

In Stock, only 1 left!

0

3

Ariens 52102700

RAKE, RH W/ZERK - 24"

$94.99

$

Usually ships in 4-12 days

0

4

Ariens 00428700

BEARING FLANGE

$18.99

$

Usually ships in 4-12 days

0

5

Ariens 00268702

PULLEY HUB, D-BORE .87 DELUXE

$14.99

$

In Stock, Qty 8

0

6

Ariens 52100100

SHEAR BOLT SERVICE ASSEMBLY

$4.99

$

In Stock, Qty 20+

0

7

Ariens 00659200

SUPPORT, RAKE BUSHING

$20.99

$

In Stock, Qty 20+

0

8

Ariens 01014200

BEARING FLANGE

$5.99

$

In Stock, only 3 left!

0

9

Ariens 04319151

BRACKET, GEARCASE SUPPORT - LH

$20.99

$

Usually ships in 4-12 days

0

10

Ariens 04319251

BRACKET, GEARCASE SUPPORT - RH

$20.99

$

Usually ships in 4-12 days

0

11

Ariens 04444000

PLUG, RAKE TUBE

$7.49

$

Usually ships in 4-12 days

0

12

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

$34.99

$

In Stock, Qty 8

0

13

Ariens 05500114

BSHG-FLG, NY.778 ID X 1.018 OD

$3.99

$

In Stock, Qty 20+

0

14

Ariens 05501309

BSHG,SPCR .895X1.065X.693

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 05803700

PIN-ROLL .250X1.75

$2.49

$

In Stock, only 4 left!

0

16

Ariens 05902008

BLT, SEMS .31-18X.50 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

17

Ariens 05902014

BLT, HEX .31-24X.750 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06200304

BLT,RHSSN.31-18X.625 G5 ZCCP30

$2.99

$

Usually ships in 4-12 days

0

19

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

In Stock, only 4 left!

0

20

Ariens 06401132

WSHR, FLT 1.010X1.505X.062 ZCC

$1.49

$

In Stock, Qty 16

0

21

Ariens 06500812

NUT,LK-CTR .25-20 GA ZCC

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06500826

NUT,LK-CTR .31-18 GA ZCC

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

24

Ariens 00268751

PULLEY, SPIN FORM DUAL GROOVE

$45.99

$

In Stock, only 1 left!

0

25

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 15

0

26

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$1.49

$

In Stock, Qty 20+

0

27

Ariens 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0
