921323 - Ariens Deluxe 24" Snow Blower, Ariens AX 254cc engine (SN: 100000 - 179999) Wheels and Axle Parts Diagram

Deluxe 24" Snow Blower, Ariens AX 254cc engine

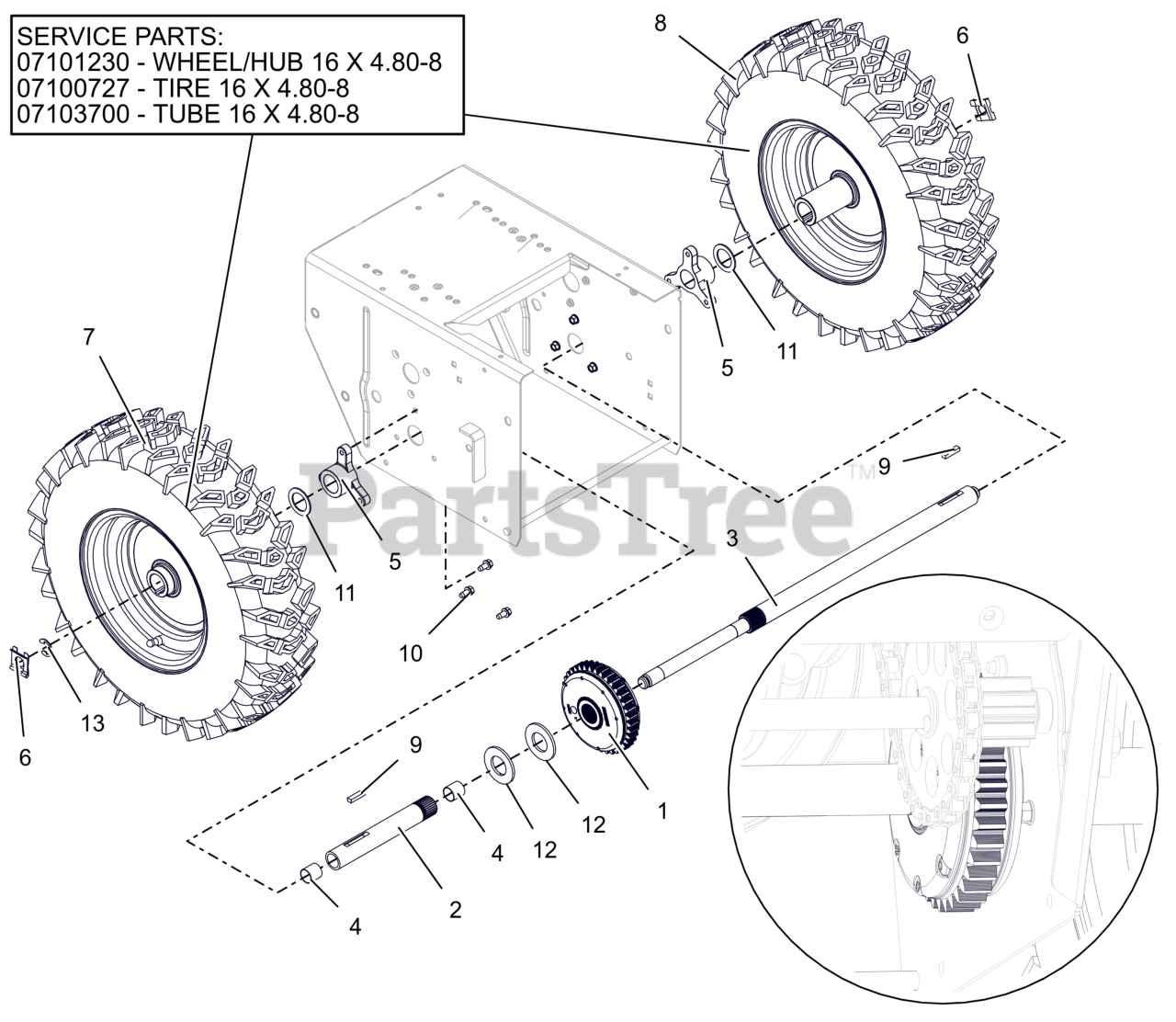

Wheels and Axle Parts Diagram

  • Title

1

Ariens 04584100

DIFFERENTIAL, AUTOMATIC

$161.99

$

In Stock, only 2 left!

0

2

Ariens 52109000

AXLE, SHORT - W/BUSHINGS

$45.99

$

Usually ships in 4-12 days

0

3

Ariens 04984800

AXLE,LONG-DELUXE AUTO DIFF

$91.99

$

Usually ships in 4-12 days

0

4

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

5

Ariens 05500829

BUSHING, AXLE

$10.99

$

In Stock, only 2 left!

0

6

Ariens 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 20+

0

7

Ariens 07101208

TIRE/WHEEL,RH 16X4.8-8 DIFF T2

$125.99

$

Usually ships in 4-12 days

0

8

Ariens 07101209

TIRE/WHEEL,LH 16X4.8-8 DIFF T2

$125.99

$

Usually ships in 4-12 days

0

Ariens 07101230

HUB, WHEEL-16X4.8-8

Note: Component Service Part

$70.99

$

Usually ships in 4-12 days

0

Ariens 07100727

TIRE, 4.80-8 K478

Note: Component Service Part

$75.99

$

Usually ships in 4-12 days

0

Ariens 07103700

TUBE

Note: Component Service Part (Optional)

$15.99

$

In Stock, only 2 left!

0

9

Ariens 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, Qty 12

0

10

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06401132

WSHR, FLT 1.010X1.505X.062 ZCC

$1.99

$

In Stock, Qty 18

0

12

Ariens 06401203

WSHR, FLT 1.062X2.000X.134 ZCC

$4.99

$

In Stock, Qty 20+

0

13

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 5

0
