921326 - Ariens Deluxe 28" Track Snow Blower, Ariens AX 369cc engine (SN: 000101 - 034999) Track - Dash Parts Diagram

Deluxe 28" Track Snow Blower, Ariens AX 369cc engine

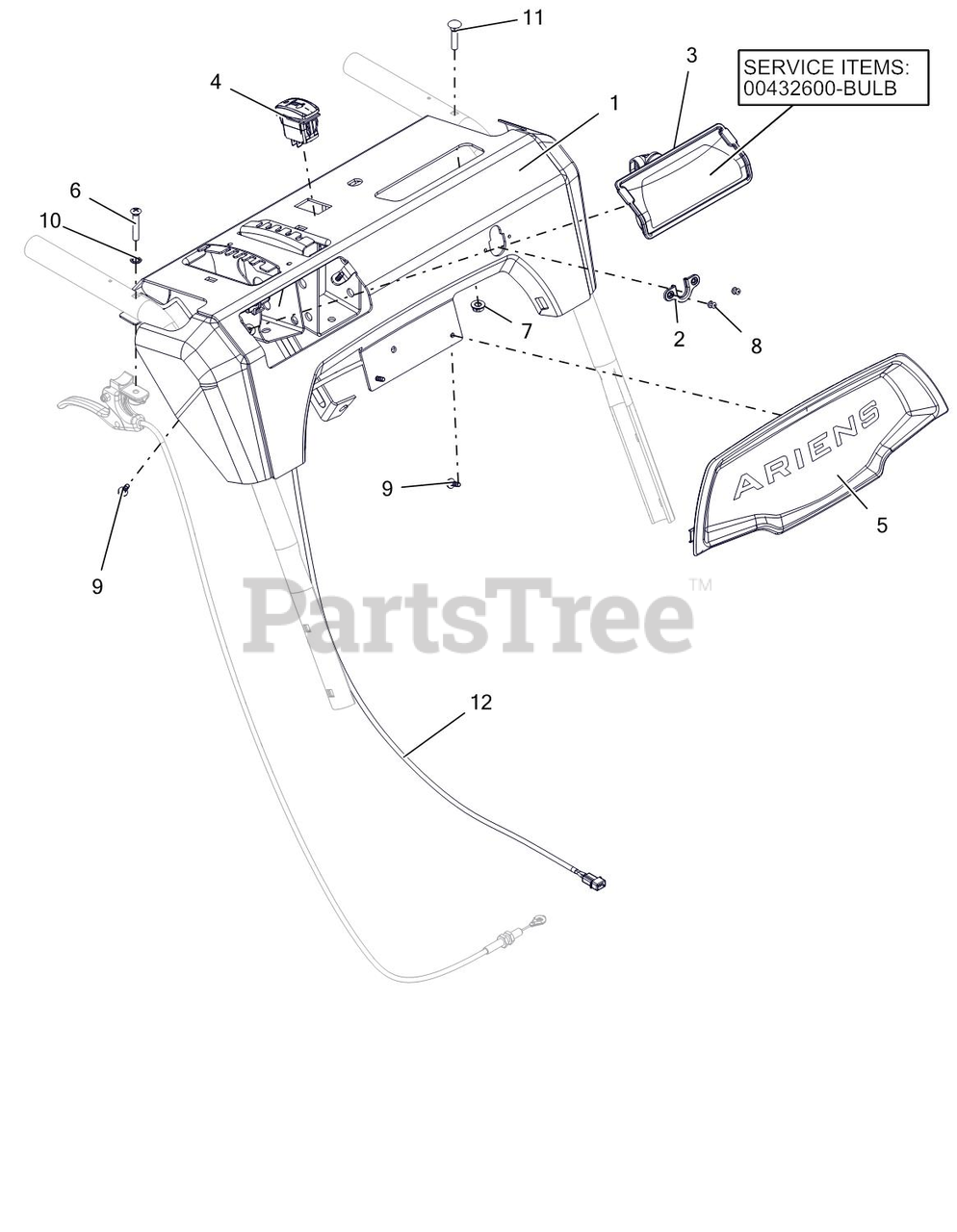

Track - Dash Parts Diagram

  • Title

1

Ariens 52107900

CONTROL PANEL W/DECAL FRIC-TRK

$180.99

$

Usually ships in 4-12 days

0

2

Ariens 04762800

GROMMET, CABLE, QUICK TURN 2

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 00432600

BULB, LIGHT-HALOGEN 20W

Note: SERVICE PART

$20.99

$

In Stock, Qty 12

0

3

Ariens 04812300

HEADLIGHT ASY, HALO 20W 2SHOT

$51.99

$

In Stock, only 4 left!

0

4

Ariens 04836700

SWITCH,ROCKER SPST-ON/OFF
(Superseded to 09395000)

$22.99

$

In Stock, only 4 left!

0

5

Ariens 04982200

BEZEL, DASH - ARIENS LG DASH

$30.99

$

In Stock, only 2 left!

0

6

Ariens 06100007

SCR-MCH .25-20X1.50 OVAL HD
(Superseded to 06100236)

$5.49

$

In Stock, only 2 left!

0

7

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06800038

RVT-POP #43 .125X.313 STL ZINC

$2.99

$

Usually ships in 4-12 days

0

9

Ariens 07400107

SCR-TAP #10X.50 BOSS INDHXHD

$3.99

$

Usually ships in 4-12 days

0

10

Ariens 06305200

WSHR-LK-INT .250 TH TYA

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$3.49

$

In Stock, Qty 8

0

12

Ariens 04329600

HARNESS, LIGHT & WARMER

$62.99

$

Usually ships in 4-12 days

0
