921326 - Ariens Deluxe 28" Track Snow Blower, Ariens AX 369cc engine (SN: 035000 & Above) Track Parts Diagram

Deluxe 28" Track Snow Blower, Ariens AX 369cc engine

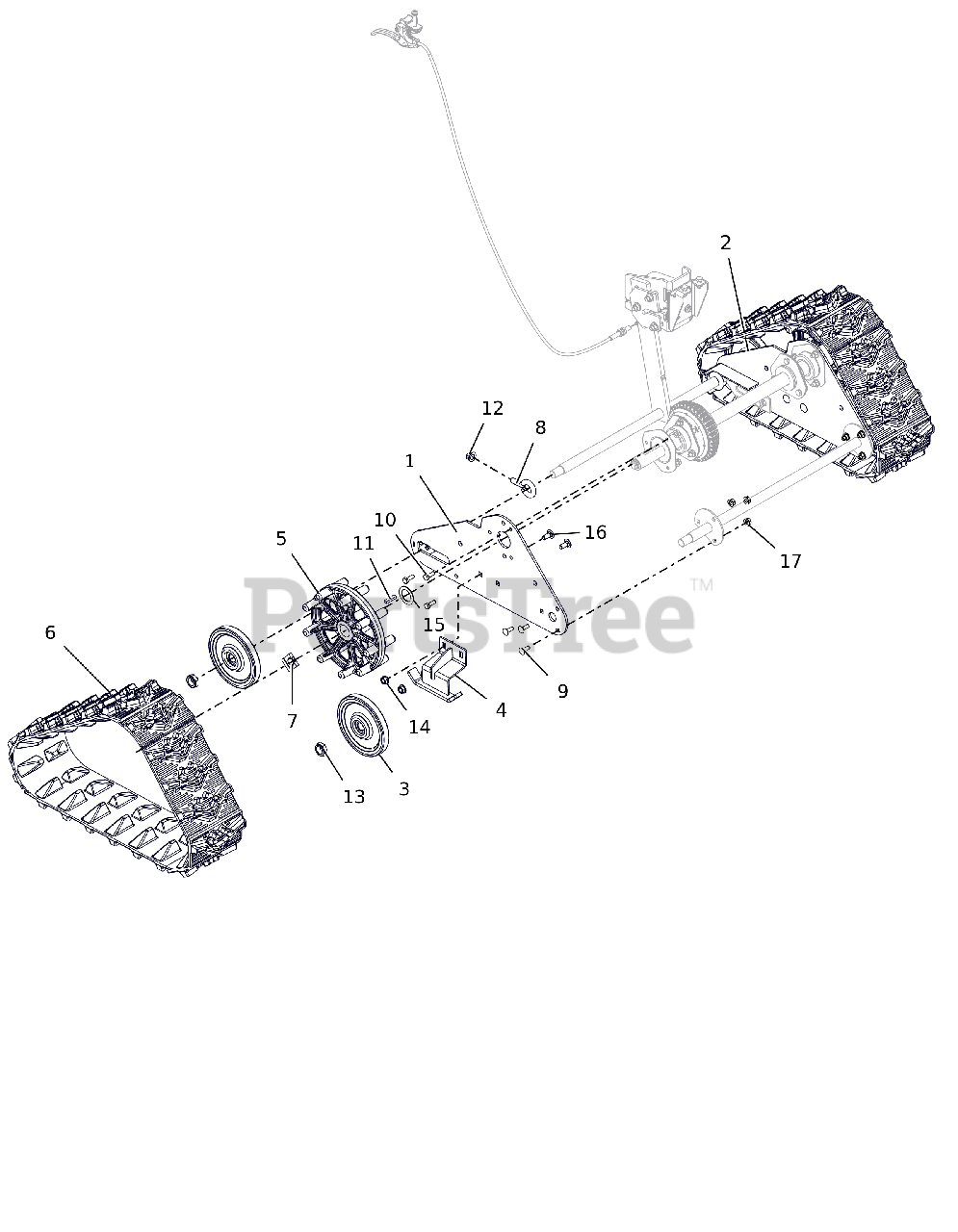

Track Parts Diagram

  • Title

1

Ariens 00669851

SIDE PLATE, RH-TRACK

$85.99

$

Usually ships in 4-12 days

0

2

Ariens 00669951

SIDE PLATE, LH-TRACK

$70.99

$

Usually ships in 4-12 days

0

3

Ariens 03293600

WHEEL, BOGIE - SINGLE BEARING

$29.99

$

Usually ships in 4-12 days

0

4

Ariens 00660751

RUNNER, GUIDE-TRACK

$23.99

$

Usually ships in 4-12 days

0

5

Ariens 04520000

WHEEL, MACHINED DRIVE

$128.99

$

Usually ships in 4-12 days

0

6

Ariens 00669700

TRACK, RUBBER

$215.99

$

Usually ships in 4-12 days

0

7

Ariens 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 20+

0

8

Ariens 07000040

BLT-EYE .375-16X.880 YWZC

$7.49

$

Usually ships in 4-12 days

0

9

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

10

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

11

Ariens 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, Qty 12

0

12

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06530300

@NUT-LK-NYL .625-18 YWZC
(Superseded to 06500936)

$4.99

$

In Stock, Qty 12

0

14

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 16

0

16

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

17

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0
