921327 - Ariens Platinum 24" SHO Snow Blower, Ariens AX 369cc EFI engine (SN: 180000 & Above) Discharge Chute Parts Diagram

Platinum 24" SHO Snow Blower, Ariens AX 369cc EFI engine

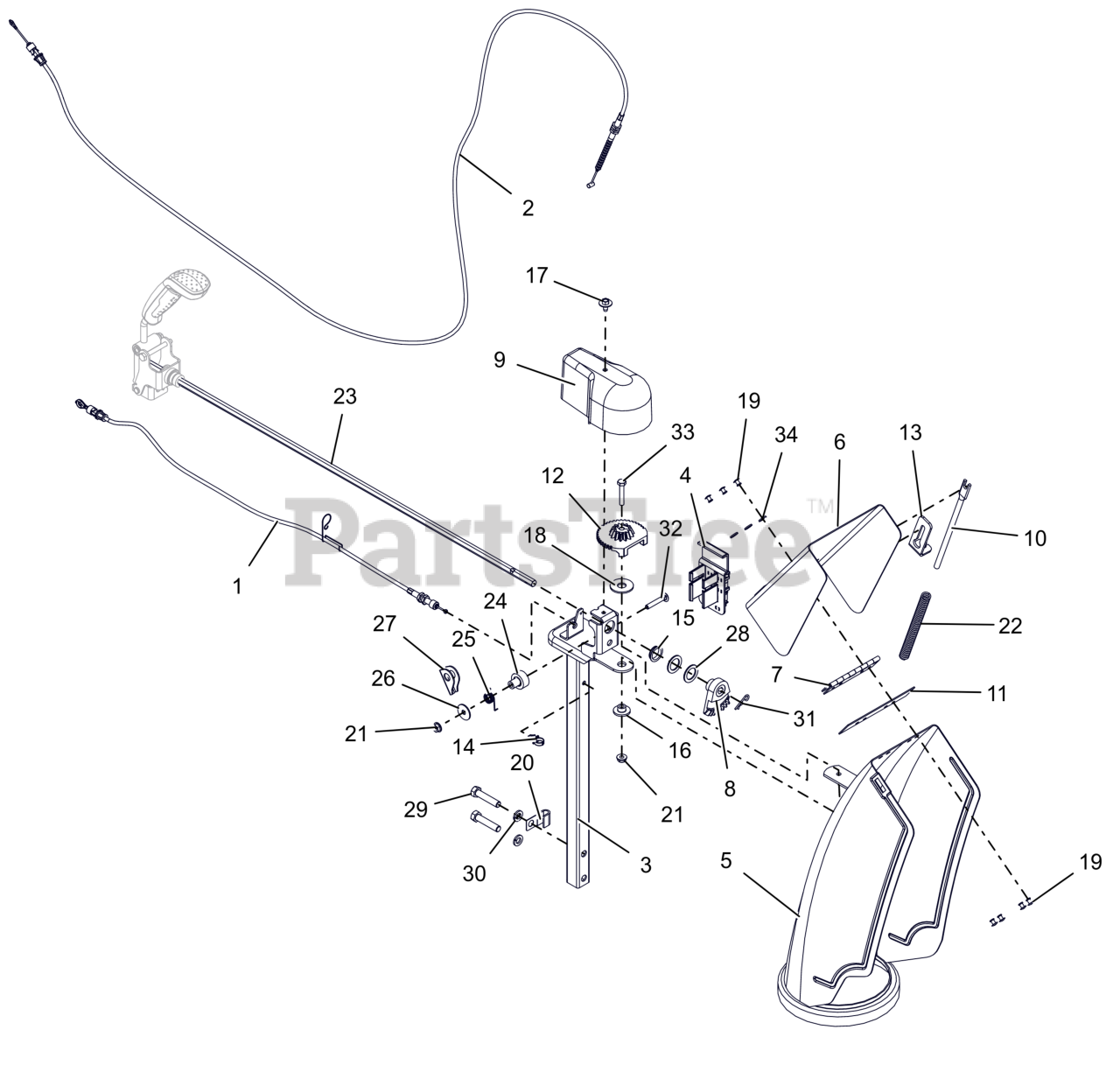

Discharge Chute Parts Diagram

  • Title

1

Ariens 06900615

CABLE, CHUTE LOCK, PRO

$47.99

$

In Stock, only 2 left!

0

2

Ariens 06900614

CABLE, DEFLECTOR - DELUXE

$61.99

$

In Stock, Qty 5

0

3

Ariens 03897451

PEDESTAL, CHUTE - QUICK STICK

$46.99

$

Usually ships in 4-12 days

0

4

Ariens 52104700

HOLDER W LARGE SHEAR BOLT /NUT

$26.99

$

Usually ships in 4-12 days

0

5

Ariens 04753259

CHUTE,DISCHARGE,NOTCHED,QT
(Superseded to 52110400)

$177.99

$

Usually ships in 4-12 days

0

6

Ariens 52110100

CAP, LARGE REMOTE W/DECAL

$51.99

$

In Stock, only 1 left!

0

7

Ariens 00170100

HINGE

$13.99

$

Usually ships in 4-12 days

0

8

Ariens 00184300

GEAR, CHUTE-ACTUATION
(Superseded to 09478700)

$9.99

$

In Stock, Qty 10

0

9

Ariens 00261700

COVER, CHUTE GEAR

$22.99

$

In Stock, only 4 left!

0

10

Ariens 00389000

ROD, DEFLECTOR CAP

$17.99

$

In Stock, only 2 left!

0

11

Ariens 00628400

CAP SEAL 5.50

$6.49

$

Usually ships in 4-12 days

0

12

Ariens 03898700

GEAR, CHUTE
(Superseded to 09478600)

$15.99

$

In Stock, only 4 left!

0

13

Ariens 05108359

BRACKET, ANCHOR-CHUTE CABLE
(Superseded to 05108300)

$5.49

$

In Stock, only 2 left!

0

14

Ariens 04451600

CLIP, CABLE GUIDE

$3.49

$

In Stock, only 2 left!

0

15

Ariens 05500027

BUSHING, POLYLINER-.75 SNAPIN

$3.99

$

In Stock, Qty 20+

0

16

Ariens 05500920

BSHG-FLG .265X.477X.375X1.00

$5.49

$

In Stock, Qty 6

0

17

Ariens 07400138

SCR, TAP .25-20X.50 LG HWH ZCC

$2.99

$

In Stock, only 2 left!

0

18

Ariens 06400904

WSHR-FLT-NYL .515X1.375X.093

$3.99

$

In Stock, only 2 left!

0

19

Ariens 06800140

RVT, POP .1875 ZCC

$2.49

$

In Stock, Qty 20+

0

20

Ariens 06909400

J-CLAMP

$4.99

$

In Stock, only 4 left!

0

21

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$1.49

$

In Stock, Qty 20+

0

22

Ariens 08300013

SG-COMP .08X.40X6.50 14#/IN

$10.99

$

In Stock, only 2 left!

0

23

Ariens 04507700

ROD, HEX - CHUTE ROTATION

$27.99

$

Usually ships in 4-12 days

0

24

Ariens 05500024

BUSHING, LOCK ARM

$5.49

$

In Stock, Qty 12

0

25

Ariens 08300014

SG-TORS

$2.49

$

In Stock, Qty 20+

0

26

Ariens 06401020

WSHR,FLT .281X1.000X.063 ZCC

$1.99

$

In Stock, Qty 20+

0

27

Ariens 05081900

ARM, LOCKING

$6.49

$

In Stock, Qty 20+

0

28

Ariens 06401119

WSHR, FLT .754X1.125X.062 ZCC

$2.49

$

In Stock, Qty 14

0

29

Ariens 05901809

BLT, HEX .38-16X1.75 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

30

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$1.99

$

In Stock, Qty 20+

0

31

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$1.99

$

In Stock, Qty 20+

0

32

Ariens 06200331

BLT, RHSN .25-20X1.50 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

33

Ariens 05901739

BLT, HEX .25-20X1.50 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

34

Ariens 06401029

WSHR,FLT .196X.500X.066 ZCC

$3.49

$

Usually ships in 4-12 days

0
