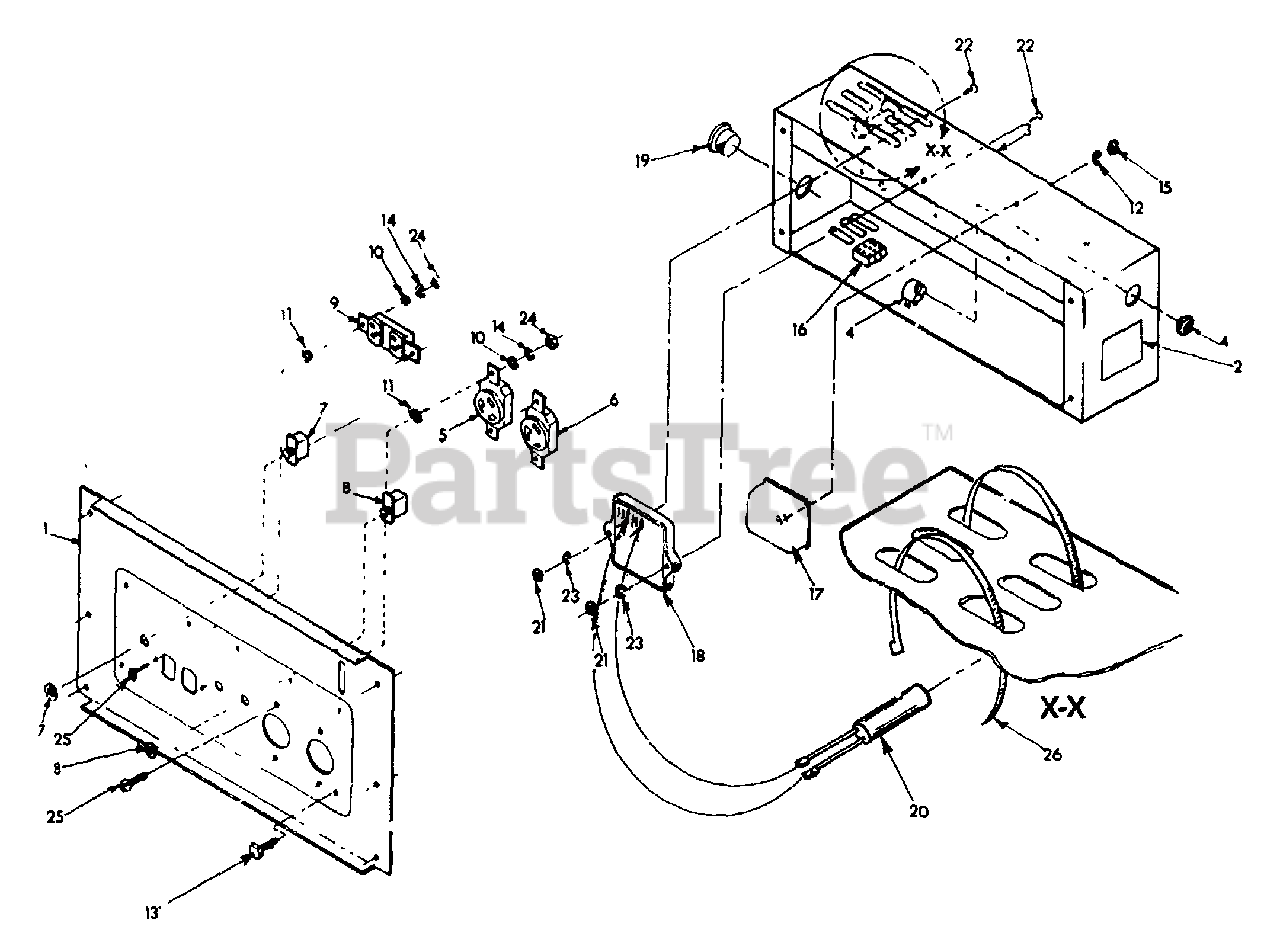

9216-0 - Generac 5,000 Watt Portable Generator Receptacle Panel Parts Diagram

5,000 Watt Portable Generator

Receptacle Panel Parts Diagram

  • Title

1

Briggs & Stratton 77060A

Receptacle Panel

$

$

Currently unavailable

2

Briggs & Stratton 78850

Start Instructions Decal

$

$

Currently unavailable

3

Briggs & Stratton 77064

Panel Back

$

$

Currently unavailable

4

Briggs & Stratton 34303

Start Switch

$

$

Currently unavailable

5

Briggs & Stratton 68867

120/240 Volts, 20 Amp Outlet
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 68868

120 Volts, 30 Amp Receptacle
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 75207

20 Amp Circuit Breaker
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

8

75207A

30 Amp Circuit Breaker

$

$

Not available

9

Briggs & Stratton 68759

120 Volts, 20 Amp Duplex Outlet
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 38150

No. 8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 23365

No. 8 Shakeproof Washer
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 22155

No. 6 Lock Washer
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 63036

No. 8-18 x 1/4" Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 22264

No. 8 Lock Washer

$

$

Not available

15

Briggs & Stratton 22188

No. 6-32 Hex Nut

$

$

Currently unavailable

16

Briggs & Stratton 63993

9-Pin Connector

$

$

Currently unavailable

17

Briggs & Stratton 40366

120 Volt, A-C Relay
(Superseded to 7040604YP)

$18.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 74074

A-C Voltage Regulator

$

$

Currently unavailable

19

Briggs & Stratton 58221

1-3/4" dia. Button Plug

$

$

Not available

20

Briggs & Stratton 77244

Field Boost Assembly

$

$

Currently unavailable

21

Briggs & Stratton 22158

No. 10-32 Hex Nut
(Superseded to 5022158)

$30.99

$

In Stock, only 4 left!

0

22

Briggs & Stratton 33534

No. 10-32 x 1-1/8" Screw

$

$

Currently unavailable

23

Briggs & Stratton 22152

No. 10 Lock Washer
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 51715

M4.0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

26

Briggs & Stratton 31980

Tie Wrap

$

$

Currently unavailable
