9217-0 - Generac 2,400 Watt Portable Generator Receptacle Panel Parts Diagram

2,400 Watt Portable Generator

Receptacle Panel Parts Diagram

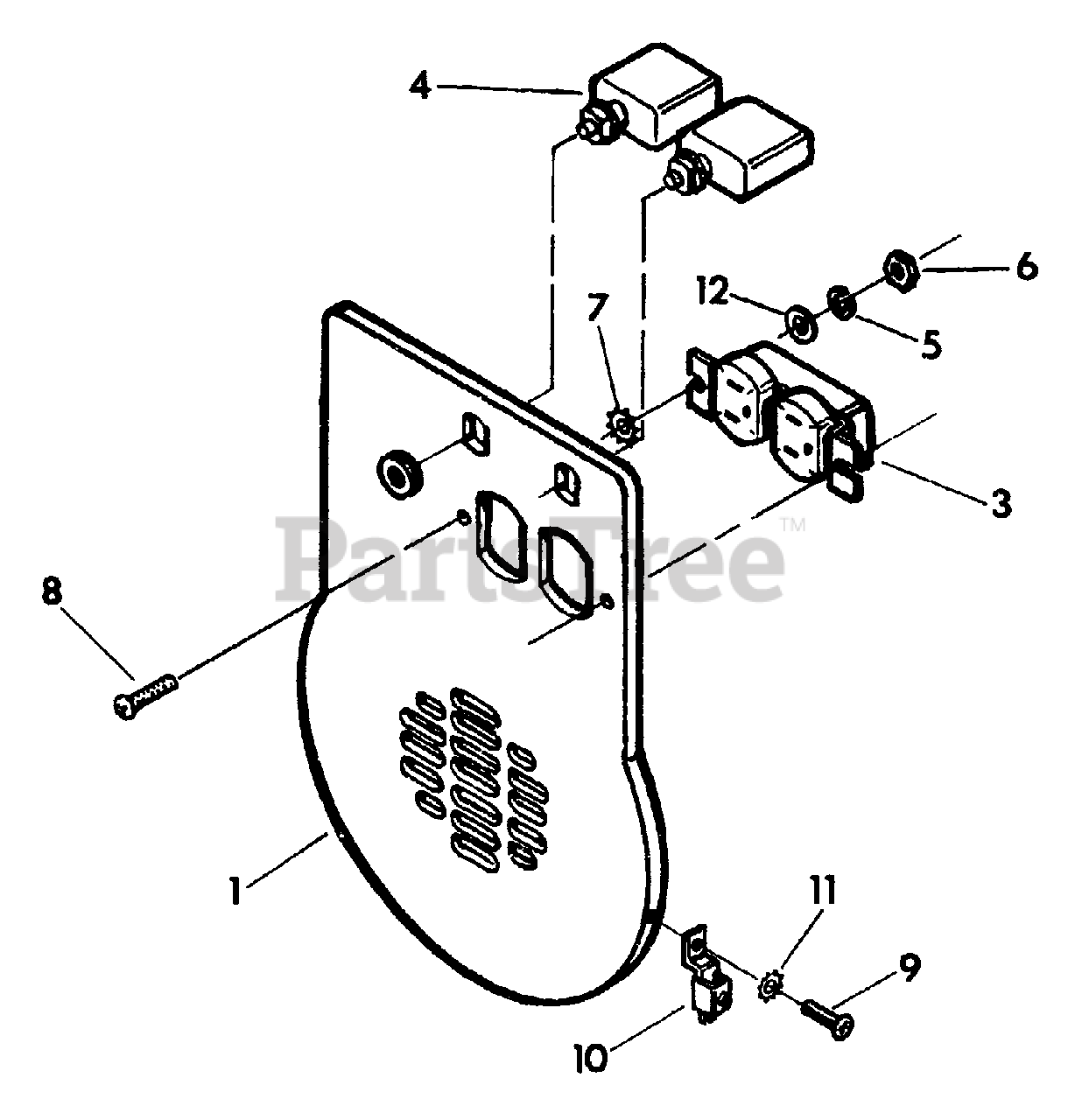

  • Title

1

Briggs & Stratton 79006

Receptacle panel

$

$

Currently unavailable

3

Briggs & Stratton 63025

120 volts, 15 amp ("Duplex") Receptacle
(Superseded to 63025GS)

Note: Receptacle is a NEMA 5-15R "Duplex" type.

$12.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 75207

15 amp Circuit breaker
(Superseded to 209872GS)

Note: Refer to info on "Connecting Electrical Loads". Do NOT connect loads in excess of circuit breaker rating.

$9.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 22264

M4 Lockwasher

$

$

Not available

6

Briggs & Stratton 51715

M4-0.70 Hex hut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 23365

M4 Serrated washer
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 76522

M4-0.70 x 10mm long Pan head machine screw

$

$

Not available

9

Briggs & Stratton 24489

No. 10-32 x 3/8" Screw

$

$

Currently unavailable

10

Briggs & Stratton 25433

Grounding lug

Note: Refer to info on "Grounding the Generator"

$

$

Not available

11

Briggs & Stratton 22769

No. 10 Shakeproof washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 38150

No. 8 Flatwasher
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0
