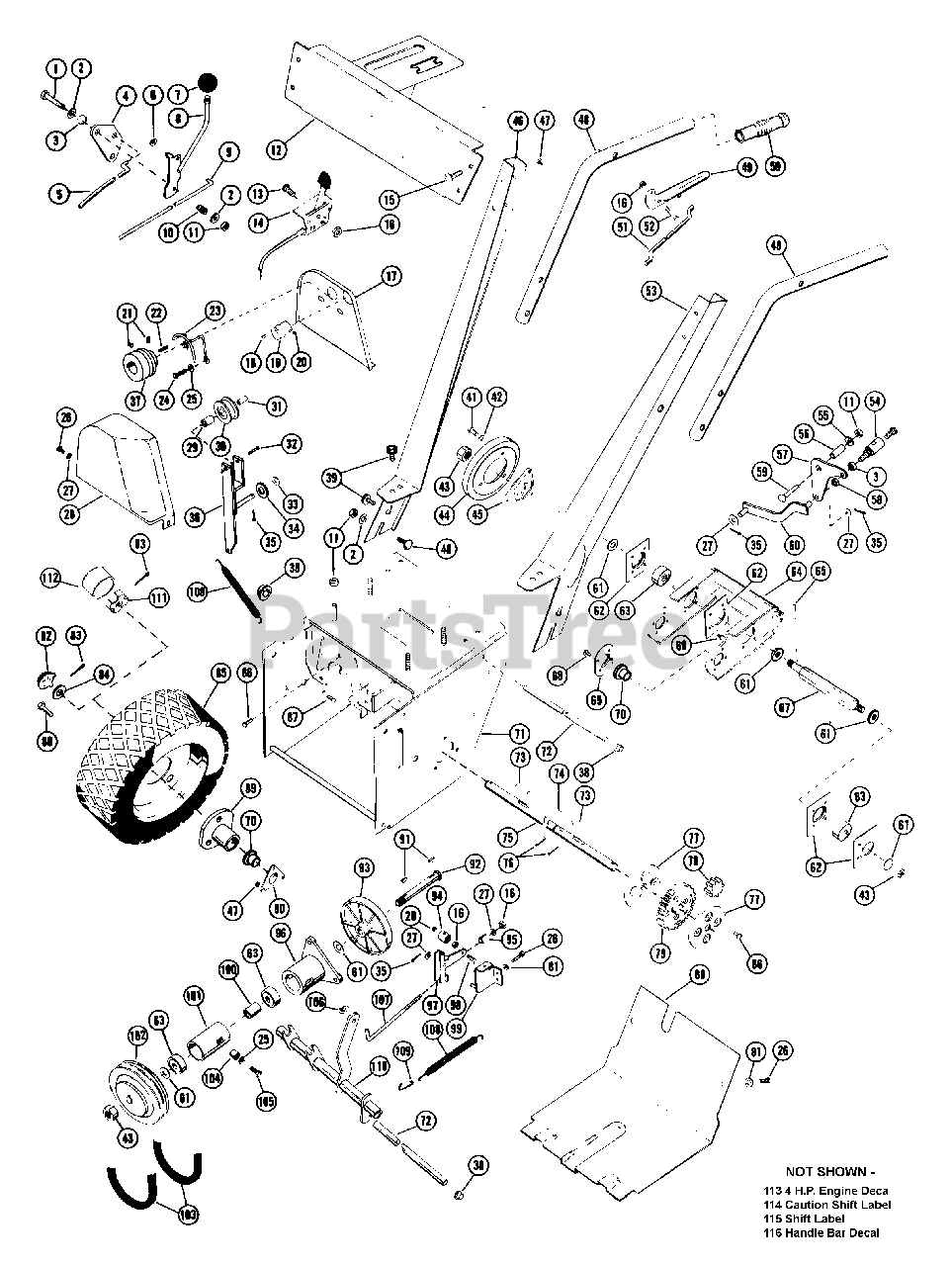

922003 - Ariens 20" Sno-Thro Attachment (SN: 000001 - 010599) > Parts Diagrams (2) > TRACTOR PARTS LIST

  • Title
05907300

1

BLT-HEX .31-18X1.75 PL GR2

Part# 05907300 (Superseded to 05957400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06400700

2

WSHR-FL-STL.312X.734X.065PL

Part# 06400700 (Superseded to 06435800)

OEM Warranty Repair Part for Ariens

Not available

00607100

3

SPACER BUSHING .5 X .32 X .21

Part# 00607100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

02205900

4

LINK

Part# 02205900

OEM Warranty Repair Part for Ariens

Not available

02205800

5

LOWER CLTCH ROD

Part# 02205800

OEM Warranty Repair Part for Ariens

Not available

02202800

6

SPRINGGRIP FASTENER

Part# 02202800

OEM Warranty Repair Part for Ariens

Not available

07500100

7

SHIFT BALL

Part# 07500100 (Superseded to 07505200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

02204400

8

SHIFT HANDLE

Part# 02204400

OEM Warranty Repair Part for Ariens

Not available

02203400

9

SHIFT ROD

Part# 02203400

OEM Warranty Repair Part for Ariens

Not available

08302900

10

SG-COMP .092X.375X2.53

Part# 08302900 (Superseded to 08309000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.07

06504200

11

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

02206000

12

HNDLBR BRCKT

Part# 02206000

OEM Warranty Repair Part for Ariens

Not available

05900100

13

BLT-HEX .25-20X.75 PL GR2

Part# 05900100 (Superseded to 05946800)

OEM Warranty Repair Part for Ariens

Not available

06903200

14

THROTTLE CONTROL

Part# 06903200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $58.08

06202100

15

BLT-RDHDSQNK .25-20X1.50 SHTPL

Part# 06202100

OEM Warranty Repair Part for Ariens

Not available

06504000

16

NUT-LK-CTR .250-20 PL

Part# 06504000 (Superseded to 06529700)

OEM Warranty Repair Part for Ariens

Not available

02211800

17

INNER BELT COVER

Part# 02211800 (Superseded to 02210000)

OEM Warranty Repair Part for Ariens

Not available

06601500

18

KEY-WDRF .125X.625X.250 SAE5

Part# 06601500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

02204900

19

CAMSHAFT SHEAVE

Part# 02204900 (Superseded to 02208900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $47.29

06001400

20

SCR-SET .25-20X.25 SKHCUPNY OH

Part# 06001400 (Superseded to 06005400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06001200

21

SCR-SET .32-18X.38 SKHCUPNL OH

Part# 06001200 (Superseded to 06005500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06601300

22

KEY-SQ .188X1.0X.188 SAE 8630

Part# 06601300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

02200700

23

BELT FINGER

Part# 02200700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

05905300

24

BLT-HEX .31-24X.75 PL GR5

Part# 05905300 (Superseded to 05947300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06300300

25

WSHR-LK .312X.097 PL HVY

Part# 06300300 (Superseded to 06307400)

OEM Warranty Repair Part for Ariens

Not available

05902800

26

BLT-HEX .25-20X.50 PL GR2

Part# 05902800 (Superseded to 05947900)

OEM Warranty Repair Part for Ariens

Not available

06400100

27

WSHR-FL-STL .250X.562X.049 PL

Part# 06400100 (Superseded to 06442300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02211700

28

OUTER BELT COVER

Part# 02211700 (Superseded to 02217400)

OEM Warranty Repair Part for Ariens

Not available

05504800

29

BSHG-SLV .500X.625X.937

Part# 05504800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $58.08

02204700

30

IDLER

Part# 02204700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $49.14

02205300

31

IDLER SHAFT

Part# 02205300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

06804500

32

RVT-TBLR .187X1.343 OH ST YZWC

Part# 06804500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06406500

33

WSHR-FL-STL .268X.562X.046 PL

Part# 06406500 (Superseded to 06437300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06403700

34

WSHR-FL-STL .281X1.250X.048PL

Part# 06403700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06700100

35

PIN-COTR .09X.75 PL

Part# 06700100 (Superseded to 06706900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02205000

36

IDLER ARM

Part# 02205000

OEM Warranty Repair Part for Ariens

Not available

01029400

37

ENGINE SHEAVE

Part# 01029400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $73.73

01208600

38

CAP, .50 ROD YWZC

Part# 01208600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

07000900

39

BLT-SERHFWH .31-18X.50 PL

Part# 07000900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06200900

40

BLT-RDHDSQSHNK .31-18X.50 YZ

Part# 06200900 (Superseded to 06222000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05910400

41

BLT-HEX .25-20X.38 PL GR2

Part# 05910400 (Superseded to 05947600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06301700

42

WSHR-LK-EXT. 250 ID

Part# 06301700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06505400

43

NUT-LK-CTR .50-20 PL

Part# 06505400 (Superseded to 06530000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

02201300

44

FRICTION DISC

Part# 02201300 (Superseded to 03248300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $33.48

02201400

45

FRICTION DISC HUB

Part# 02201400

OEM Warranty Repair Part for Ariens

Not available

02202000

46

R H LOWER HANDLE BAR

Part# 02202000 (Superseded to 02214500)

OEM Warranty Repair Part for Ariens

Not available

06505600

47

NUT-LK-FLG .250-20 PL

Part# 06505600 (Superseded to 06530100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02205500

48

HANDLE BARS

Part# 02205500

OEM Warranty Repair Part for Ariens

Not available

00203800

49

CLUTCH HANDLE

Part# 00203800 (Superseded to 00203851)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $24.48

07500600

50

GRIP

Part# 07500600 (Superseded to 07500113)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

02205700

51

UPPER CLTCH ROD

Part# 02205700

OEM Warranty Repair Part for Ariens

Not available

05905000

52

BLT-HEX .25-20X1.50 PL GR5

Part# 05905000 (Superseded to 05952500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

02202100

53

L H LOWER HANDLE BAR

Part# 02202100 (Superseded to 02209500)

OEM Warranty Repair Part for Ariens

Not available

01024700

54

BALL JOINT

Part# 01024700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

06400200

55

WSHR-FL-STL .38X.875X.083 PL

Part# 06400200 (Superseded to 06435700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02202900

56

BSHG-SLV .334 X .502 X 1.437

Part# 02202900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

02203500

57

SHIFT LEVER

Part# 02203500

OEM Warranty Repair Part for Ariens

Not available

06504300

58

NUT-LK-CTR .312-24 PL

Part# 06504300 (Superseded to 06537000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06202400

59

BLT-RDHDSQNK .31-18X2.0 SHT PL

Part# 06202400

OEM Warranty Repair Part for Ariens

Not available

02203800

60

SHIFT LINK

Part# 02203800

OEM Warranty Repair Part for Ariens

Not available

06405800

61

WSHR-FL-STL .505X1.000X.062

Part# 06405800 (Superseded to 06439200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

02204200

62

BEARING RETAINER

Part# 02204200 (Superseded to 02414100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.81

05408000

63

BRG-BALL .500X1.38X.437

Part# 05408000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

02200800

64

CARRIER

Part# 02200800 (Superseded to 02215800)

OEM Warranty Repair Part for Ariens

Not available

05801600

65

PIN-ROLL .188X1.00

Part# 05801600 (Superseded to 02470401)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06802500

66

RVT-POP .187X.402 DOME ST

Part# 06802500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02201000

67

HEX SHAFT

Part# 02201000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

06803100

68

RVT-POP.125 X .294 DOME

Part# 06803100

OEM Warranty Repair Part for Ariens

Not available

02201500

69

BEARING RETAINER

Part# 02201500

OEM Warranty Repair Part for Ariens

Not available

05503900

70

BSHG-FLG .750X1.000X.625X1.250

Part# 05503900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.65

02206600

71

TRACTOR FRAME

Part# 02206600

OEM Warranty Repair Part for Ariens

Not available

02200900

72

SHAFT

Part# 02200900

OEM Warranty Repair Part for Ariens

Not available

06601100

73

KEY-FTHR .188X1.25X.187 SAE

Part# 06601100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06601200

74

KEY-WDRF .25X.750X.313 SAE91

Part# 06601200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

02201700

75

AXLE SHAFT

Part# 02201700

Note: (Used Only On Model(s): 922999).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $72.61

02206900

75

AXLE SHAFT

Part# 02206900

Note: (Used Only On Model(s): 922002).

OEM Warranty Repair Part for Ariens

Not available

05800900

76

PIN-ROLL .125X1.00

Part# 05800900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02205400

77

RETAINER PLATE

Part# 02205400

OEM Warranty Repair Part for Ariens

Not available

02201100

78

PINION

Part# 02201100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

01021100

79

SPUR GEAR, FELLOWS 35T .750 ID

Part# 01021100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $75.97

02204000

80

COVER

Part# 02204000

OEM Warranty Repair Part for Ariens

Not available

06300200

81

WSHR-LK .250X.077 HVY PL

Part# 06300200 (Superseded to 06308000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01028800

82

HUB CAP

Part# 01028800

OEM Warranty Repair Part for Ariens

Not available

06701400

83

PIN-COTR .12 X 1.25 PL

Part# 06701400 (Superseded to 06712600)

OEM Warranty Repair Part for Ariens

Not available

06404200

84

WSHR-FL-STL .755X2.000X.125

Part# 06404200 (Superseded to 06444800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

07107500

85

WHL 10.25 IN O.D.

Part# 07107500 (Superseded to 52202400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $290.24

07402500

86

SCR-TAP .312-18X.50 CRPH PL 1A

Part# 07402500

OEM Warranty Repair Part for Ariens

Not available

07001100

87

SCR-SLTR-SERNK .25-20X.62 PL

Part# 07001100 (Superseded to 07028600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

07000500

88

BLT-WHL .50-20X.50 GR5 PL

Part# 07000500 (Superseded to 07416900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

02201800

89

WHEEL HUB

Part# 02201800

Note: (Used Only On Model(s): 922999).

OEM Warranty Repair Part for Ariens

Not available

02207000

89

WHEEL HUB

Part# 02207000

Note: (Used Only On Model(s): 922002).

OEM Warranty Repair Part for Ariens

Not available

01202300

90

SUPPORT, BEARING

Part# 01202300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $58.98

06600600

91

KEY-WDRF .125X.500X.203 SAE 3

Part# 06600600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

02200400

92

SPINDLE

Part# 02200400

OEM Warranty Repair Part for Ariens

Not available

02200500

93

DRIVE DISK

Part# 02200500

OEM Warranty Repair Part for Ariens

Not available

02205100

94

ROD ADAPTER

Part# 02205100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.36

00327900

95

SPACER

Part# 00327900

OEM Warranty Repair Part for Ariens

Not available

02200300

96

DRIVE SPINDLE HOUSING

Part# 02200300 (Superseded to 52406000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $141.37

02203000

97

DEADMAN LEVER

Part# 02203000 (Superseded to 02214300)

OEM Warranty Repair Part for Ariens

Not available

05908200

98

BLT-HEX .25-20X.75 PL GR5

Part# 05908200 (Superseded to 05946800)

OEM Warranty Repair Part for Ariens

Not available

02202500

99

DEADMAN BRACKET

Part# 02202500

OEM Warranty Repair Part for Ariens

Not available

02200600

100

BEARING SPACER .75 X .5 X.88

Part# 02200600

OEM Warranty Repair Part for Ariens

Not available

02200200

101

SPINDLE HOUSING

Part# 02200200 (Superseded to 52406000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $141.37

02204800

102

DRIVE SHEAVE

Part# 02204800

OEM Warranty Repair Part for Ariens

Not available

07202300

103

V-BELT, SPECIAL-RAW EDGE (SET)

Part# 07202300

Note: (Matched pairs only)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $31.25

00303400

104

ROLLER

Part# 00303400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

05900300

105

BLT-HEX .31-18X1.00 PL GR 2

Part# 05900300 (Superseded to 05946900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01037600

106

RATCHET PLATE

Part# 01037600

OEM Warranty Repair Part for Ariens

Not available

02201200

107

ADJUSTMENT LINK

Part# 02201200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.00

08302600

108

SG-TENS .063X.44X2.81 WLD 18

Part# 08302600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

02204500

109

SPRING HOOK

Part# 02204500

OEM Warranty Repair Part for Ariens

Not available

02206400

110

FORK

Part# 02206400

OEM Warranty Repair Part for Ariens

Not available

00337600

111

SPINDLE CUP

Part# 00337600 (Superseded to 01238200)

Note: (Used Only On Model(s): 922002).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.47

00337700

112

HUB CAP

Part# 00337700

Note: (Used Only On Model(s): 922002).

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

07803300

113

4 HP ENGINE DECAL

Part# 07803300

Note: (Not Shown)

OEM Warranty Repair Part for Ariens

Not available

07805900

114

CAUTION DECAL

Part# 07805900 (Superseded to 52416300)

Note: (Not Shown)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $42.99

07806000

115

SHIFT DECAL

Part# 07806000

Note: (Not Shown)

OEM Warranty Repair Part for Ariens

Not available

07806100

116

HANDLEBAR DECAL

Part# 07806100 (Superseded to 07798500)

Note: (Not Shown)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $52.02
