922024 - Ariens 20" Sno-Thro Attachment (SN: 018001 & Above) SNO-THRO PARTS LIST Parts Diagram

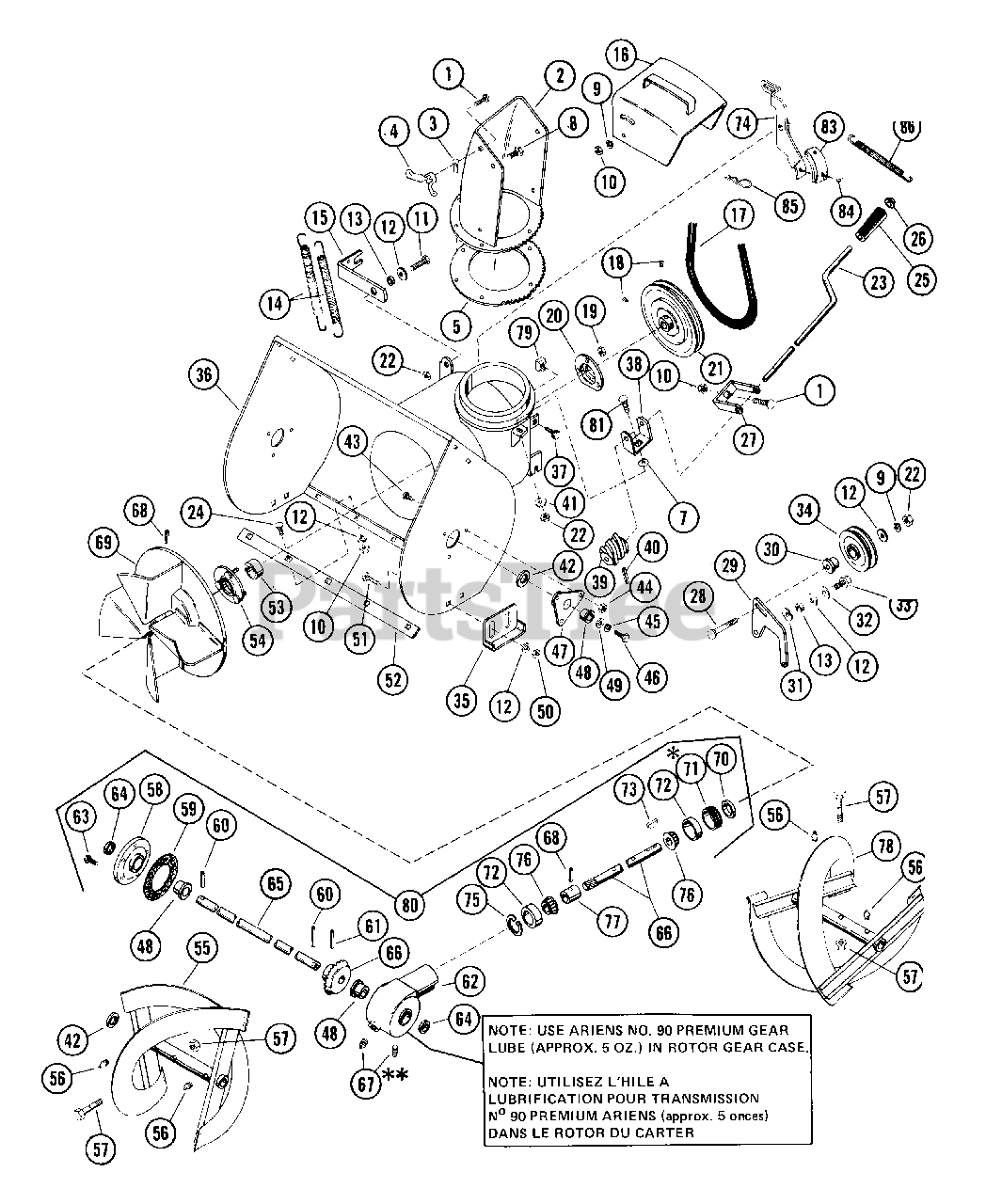

20" Sno-Thro Attachment

SNO-THRO PARTS LIST Parts Diagram

  • Title

1

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

$3.49

$

In Stock, Qty 13

0

2

Ariens 02215900

CHUTE - DISCHARGE
(Superseded to 03214800)

$

$

Not available

3

Ariens 07403400

SCR-TAP 8-32X.38 SL HWH PL 23
(Superseded to 07414500)

$2.49

$

Usually ships in 4-12 days

0

4

Ariens 01101200

WING NUT, .312-18
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

5

Ariens 02216000

GEAR - LOWER COLLAR

$

$

Not available

7

Ariens 06303200

WSHR-LK-EXT .313X.030 PL

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.99

$

In Stock, Qty 13

0

9

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 5

0

10

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

11

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

13

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$

$

Not available

14

Ariens 08300400

SG-TENS .125X.437X5.5 WLD 20

$30.99

$

In Stock, only 2 left!

0

15

Ariens 02217500

CLUTCH LEVER

$

$

Not available

16

Ariens 52200600

DEFLECTOR SERVICE ASSEMBLY
(Superseded to 53201300)

$

$

Not available

17

Ariens 07205600

V-BELT, 4L-WRAPPED

$36.99

$

In Stock, only 1 left!

0

18

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$3.49

$

In Stock, only 2 left!

0

19

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 01014200

BEARING FLANGE

$6.49

$

In Stock, Qty 5

0

21

Ariens 07307100

PLY-V 8.00 X .75 W/KEY SALEM

$

$

Not available

22

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$1.49

$

In Stock, Qty 8

0

23

Ariens 02208100

CHUTE CONTROL CRANK

$

$

Not available

24

Ariens 06202600

BLT-RDHDSQNK .312-18X.62 PL
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

25

Ariens 07503900

GRIP

$

$

Not available

26

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, only 2 left!

0

27

Ariens 52201700

BRACKET ASSEMBLY

$

$

Not available

28

Ariens 06202200

BLT-RDHDSQNK .31-18X1.38SHT PL
(Superseded to 06212100)

$1.99

$

In Stock, Qty 5

0

29

Ariens 01038900

IDLER ARM

$34.99

$

Usually ships in 4-12 days

0

30

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.99

$

In Stock, Qty 11

0

31

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$1.49

$

In Stock, Qty 20+

0

32

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 1 left!

0

33

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$1.99

$

Usually ships in 4-12 days

0

34

Ariens 01213200

IDLER
(Superseded to 52007000)

$40.99

$

In Stock, only 2 left!

0

35

Ariens 01016500

RUNNER
(Superseded to 02483859)

$20.99

$

In Stock, Qty 8

0

36

Ariens 52201500

BLOWER HOUSING ASSEMBLY

Note: (Used Only On Model(s): 922018,922020,922024).

$

$

Not available

36

Ariens 52201600

BLOWER HOUSING ASSEMBLY

Note: (Used Only On Model(s): 922022,922025).

$

$

Not available

37

Ariens 07003100

BLT-SCRHFWH .38-16X.75 PL
(Superseded to 07028500)

$1.99

$

In Stock, Qty 6

0

38

Ariens 02212300

WORM CLEVIS

$16.99

$

Usually ships in 4-12 days

0

39

Ariens 02211000

WORM GEAR

$

$

Not available

40

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, only 4 left!

0

41

Ariens 06302300

WSHR-LK .313X.062
(Superseded to 06310600)

$6.49

$

In Stock, only 2 left!

0

42

Ariens 06404600

WSHR-FL-STL 1.010X1.505X.062PL
(Superseded to 06436300)

$1.99

$

In Stock, Qty 12

0

43

Ariens 07001100

SCR-SLTR-SERNK .25-20X.62 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 6

0

44

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

Usually ships in 4-12 days

0

46

Ariens 05902400

BLT-HEX .50-13X1.00 PL GR2
(Superseded to 05947100)

$2.99

$

In Stock, Qty 7

0

47

Ariens 01018400

BEARING SUPPORT

$

$

Not available

48

Ariens 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$13.99

$

In Stock, Qty 6

0

49

Ariens 06404700

WSHR-FL-STL .511X1.441X.125 PL
(Superseded to 06436400)

$3.49

$

In Stock, Qty 20+

0

50

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

51

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

52

Ariens 02210700

SCRAPER BLADE

Note: (Used Only On Model(s): 922018,922020,922024).

$31.99

$

Usually ships in 4-12 days

0

52

Ariens 02209600

SCRAPER BLADE
(Superseded to 03884459)

Note: (Used Only On Model(s): 922022,922025).

$27.99

$

In Stock, only 2 left!

0

53

Ariens 05406300

BRG-BALL .750X1.750X.50

$27.99

$

In Stock, only 2 left!

0

54

Ariens 00301700

BEARING FLANGE

$17.99

$

In Stock, only 2 left!

0

55

Ariens 52200200

RAKE, RIGHT-20"(1ID X 13.88OD)

Note: (Used Only On Model(s): 922018,922020,922024).

$

$

Not available

55

Ariens 52200400

RAKE, RIGHT-24"(1ID X 13.75OD)

Note: (Used Only On Model(s): 922022,922025).

$

$

Not available

56

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

57

Ariens 51001500

SHEAR BOLT SERVICE ASSEMBLY

$5.99

$

In Stock, Qty 20+

0

58

Ariens 01018100

GEAR CASE FLANGE

$

$

Not available

59

Ariens 01010800

GASKET

$6.49

$

In Stock, only 1 left!

0

60

Ariens 05803000

PIN-ROLL .188X1.50

$1.49

$

In Stock, only 2 left!

0

61

Ariens 05802200

PIN-ROLL .313X1.38

$2.99

$

In Stock, only 1 left!

0

62

Ariens 01018000

CASE, GEAR - C.I.

$

$

Not available

63

Ariens 07001200

BLT-SERHFWH .25-20X.75 PL
(Superseded to 07049400)

$2.99

$

Usually ships in 4-12 days

0

64

Ariens 05606100

SEAL 1.000X1.312X.150

$13.99

$

In Stock, only 2 left!

0

65

Ariens 02210200

FRONT GEAR SHAFT

Note: (Used Only On Model(s): 922018,922020,922024).

$

$

Not available

65

Ariens 01029900

FRONT GEAR SHAFT

Note: (Used Only On Model(s): 922022,922025).

$

$

Not available

66

Ariens 52201000

SHAFT & GEAR SERVICE ASSEMBLY

$475.99

$

Usually ships in 4-12 days

0

67

Ariens 00113800

PIPE PLUG

$6.49

$

Usually ships in 4-12 days

0

68

Ariens 05800700

PIN-ROLL .250X1.25

$1.49

$

In Stock, Qty 18

0

69

Ariens 02210400

FAN

$

$

Not available

70

Ariens 05606200

SEAL .750X1.499X.225

$7.49

$

In Stock, Qty 11

0

71

Ariens 01037100

ADJUSTMENT PLUG

$

$

Not available

72

Ariens 05404400

BRG-CUP 1.781X.475

$11.99

$

In Stock, Qty 20+

0

73

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, only 4 left!

0

74

Ariens 62202900

BRAKE ASSEMBLY
(Superseded to 52202300)

$

$

Not available

75

Ariens 05703200

RG-RTNG INT 1.781 HSG X.062
(Superseded to 05707500)

$9.99

$

In Stock, Qty 8

0

76

Ariens 05404500

BRG-CONE .750X.61

$29.99

$

In Stock, Qty 11

0

77

Ariens 01010700

BEARING SPACER

$

$

Not available

78

Ariens 52200300

RAKE, LEFT-20"(1ID X 13.88 OD)

Note: (Used Only On Model(s): 922018,922020,922024).

$

$

Not available

78

Ariens 52200500

RAKE, LEFT-24"(1ID X 13.75 OD)

Note: (Used Only On Model(s): 922022,922025).

$

$

Not available

79

Ariens 07002600

NUT-RETNR .38-16 TINRMAN

$9.99

$

In Stock, Qty 7

0

80

Ariens 52200100

GEAR CASE - C.I.

Note: (Used Only On Model(s): 922018,922020,922024).

$

$

Not available

80

Ariens 52200800

GEAR CASE - 24" - CAST IRON

Note: (Used Only On Model(s): 922022,922025).

$

$

Not available

81

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

83

Ariens 02217800

BRAKE LINING

$9.99

$

In Stock, Qty 11

0

84

Ariens 06806200

RVT-TBLR .187X.375 OH ST PL

$

$

Not available

85

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

86

Ariens 08316400

SG-TENS .062X.56X8.0 WLD 11
(Superseded to 08300538)

$15.99

$

In Stock, Qty 19

0
