924 HV (961930052-00) - Husqvarna 24" Snow Blower (2010-04) Chassis / Engine / Pulleys Parts Diagram

24" Snow Blower

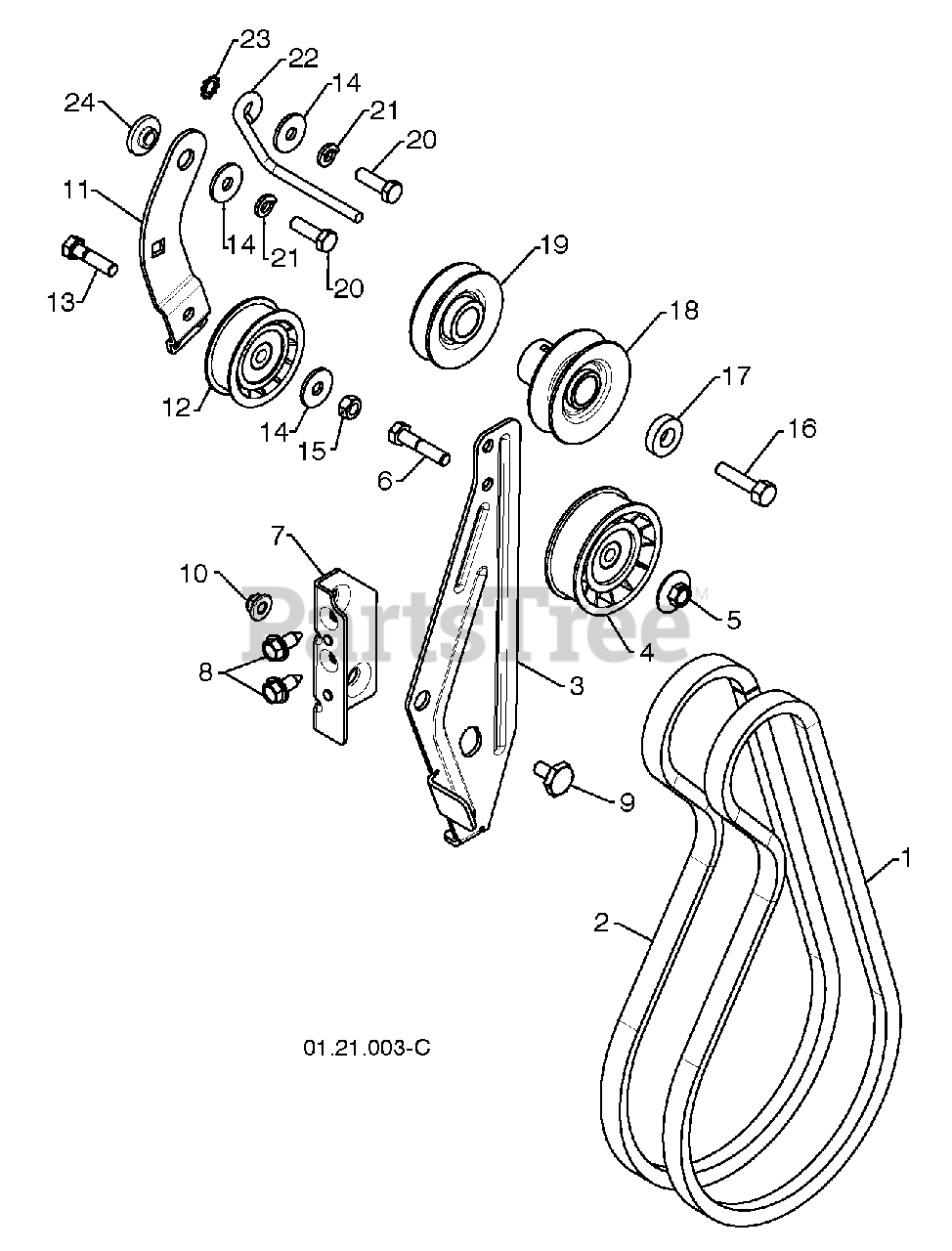

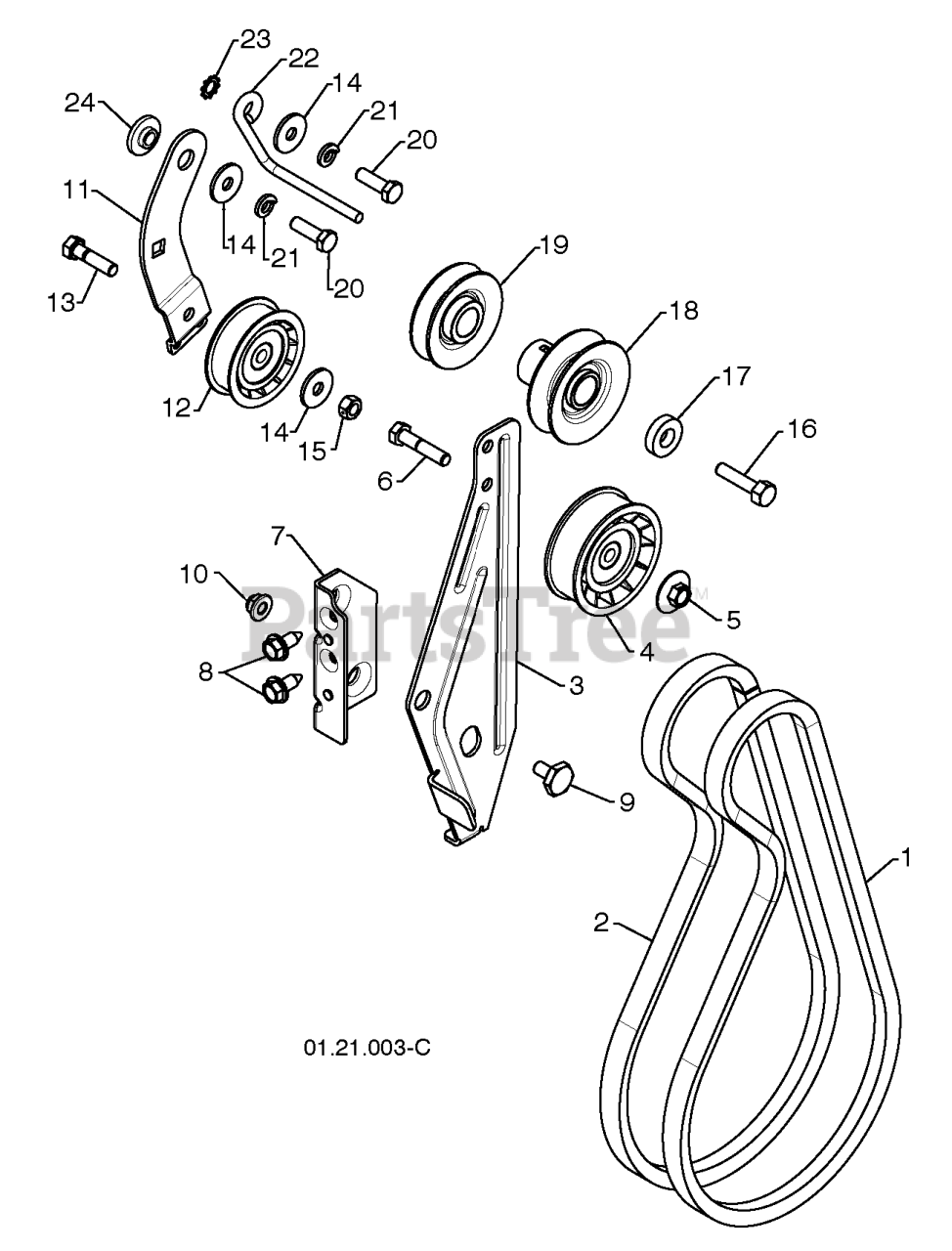

Chassis / Engine / Pulleys Parts Diagram

  • Title

1

Husqvarna 532408007

Impeller Belt

$40.99

$

In Stock, only 2 left!

0

2

Husqvarna 532419744

Traction Belt

$34.99

$

In Stock, only 1 left!

0

3

Husqvarna 532435802

Idler Arm Bracket
(Superseded to 584232402)

$

$

Not available

4

Husqvarna 532180523

Idler Pulley

$24.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532426589

Nut 5/16-18

$6.49

$

In Stock, Qty 18

0

6

Husqvarna 874780524

Screw 5/16-18 X 1.50
(Superseded to 539976935)

$1.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532435801

Idler Bracket
(Superseded to 532423990)

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532428867

Screw 5/16-18 X .625

$6.49

$

In Stock, Qty 20+

0

9

Husqvarna 532424297

Shoulder Bolt 5/16-18 X .500

$

$

Not available

10

Husqvarna 532751153

Nut 5/16-18 Nylock

$4.99

$

In Stock, Qty 9

0

11

Husqvarna 532187786

Traction Idler Arm
(Superseded to 585238401)

$44.99

$

In Stock, only 2 left!

0

12

Husqvarna 532180522

Traction Pulley

$31.99

$

Usually ships in 3-10 days

0

13

Husqvarna 874780520

Screw 5/16-18 X 1.00
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532059289

Washer

$4.99

$

In Stock, only 3 left!

0

15

Husqvarna 873800500

Nut 5/16-18

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532851084

Screw 3/8-24 X 1.375
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532400026

Washer

$4.99

$

In Stock, only 3 left!

0

18

Husqvarna 532426491

Pulley Eng Impeller

$26.99

$

In Stock, only 2 left!

0

19

Husqvarna 532426490

Pulley Eng Traction

$15.99

$

In Stock, only 1 left!

0

20

Husqvarna 874610516

Screw 5/16-18 X 1.00

$4.99

$

In Stock, only 4 left!

0

21

Husqvarna 810040500

Lockwasher 5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 532155452

Belt Guide

$6.49

$

In Stock, only 1 left!

0

23

Husqvarna 811050500

Lockwasher 5/16
(Superseded to 810040500)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 532175331

Idler Bushing
(Superseded to 587343701)

$4.99

$

In Stock, only 1 left!

0
