924 HV (961930052-00) - Husqvarna 24" Snow Blower (2010-04) Drive Parts Diagram

24" Snow Blower

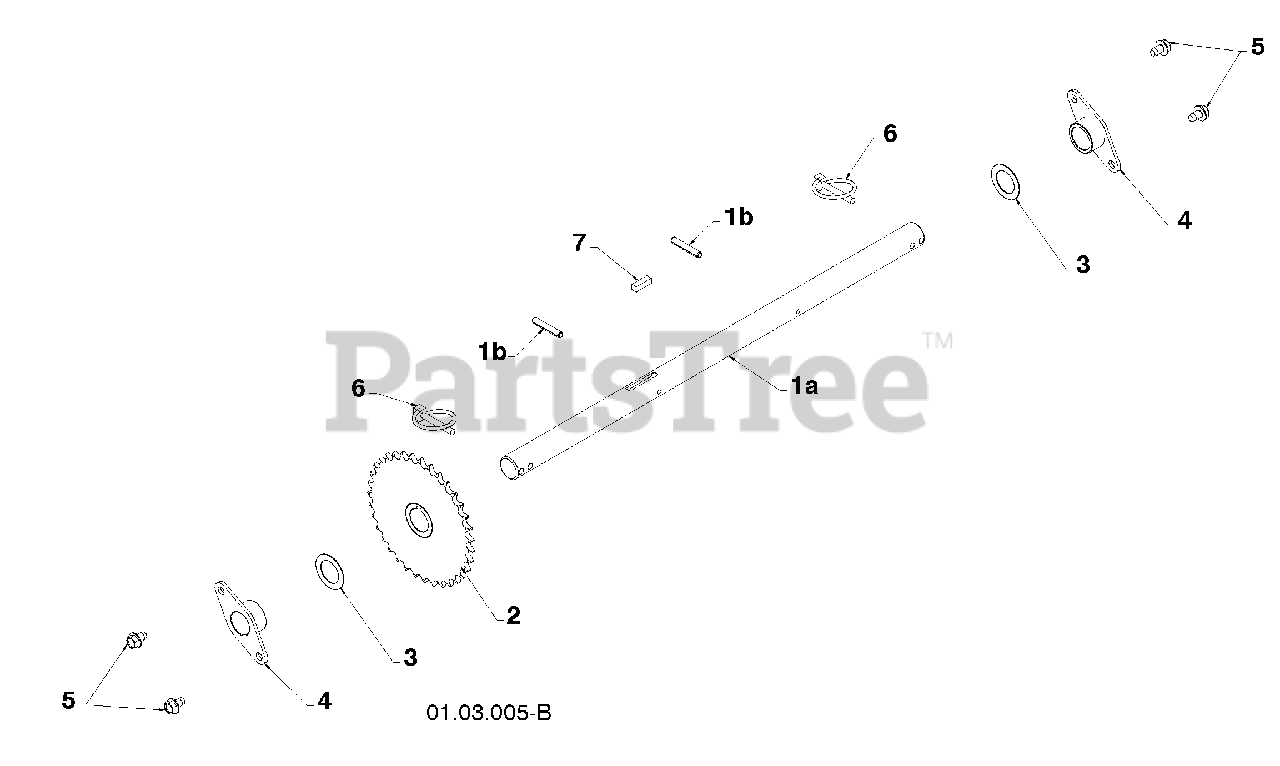

Drive Parts Diagram

  • Title

1

Husqvarna 532188226

(Assy of 1A,1B) Axle Assembly

$48.99

$

Usually ships in 3-10 days

0

1a

Husqvarna 532179352

Axle Shaft

$60.99

$

Usually ships in 3-10 days

0

1b

Husqvarna 532184206

Roll Pin 3/16

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532402691

Sprocket

$60.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532174697

Thrust Washer
(Superseded to 532007396)

$

$

Not available

4

Husqvarna 532179830

Bearing

$24.99

$

In Stock, only 2 left!

0

5

Husqvarna 817490508

Bolt 5/16-18 X .500
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532155443

Clik Pin

$8.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532189282

Square Key

$7.49

$

In Stock, only 1 left!

0
