924 HV (961930052-00) - Husqvarna 24" Snow Blower (2010-04) Drive Parts Diagram

24" Snow Blower

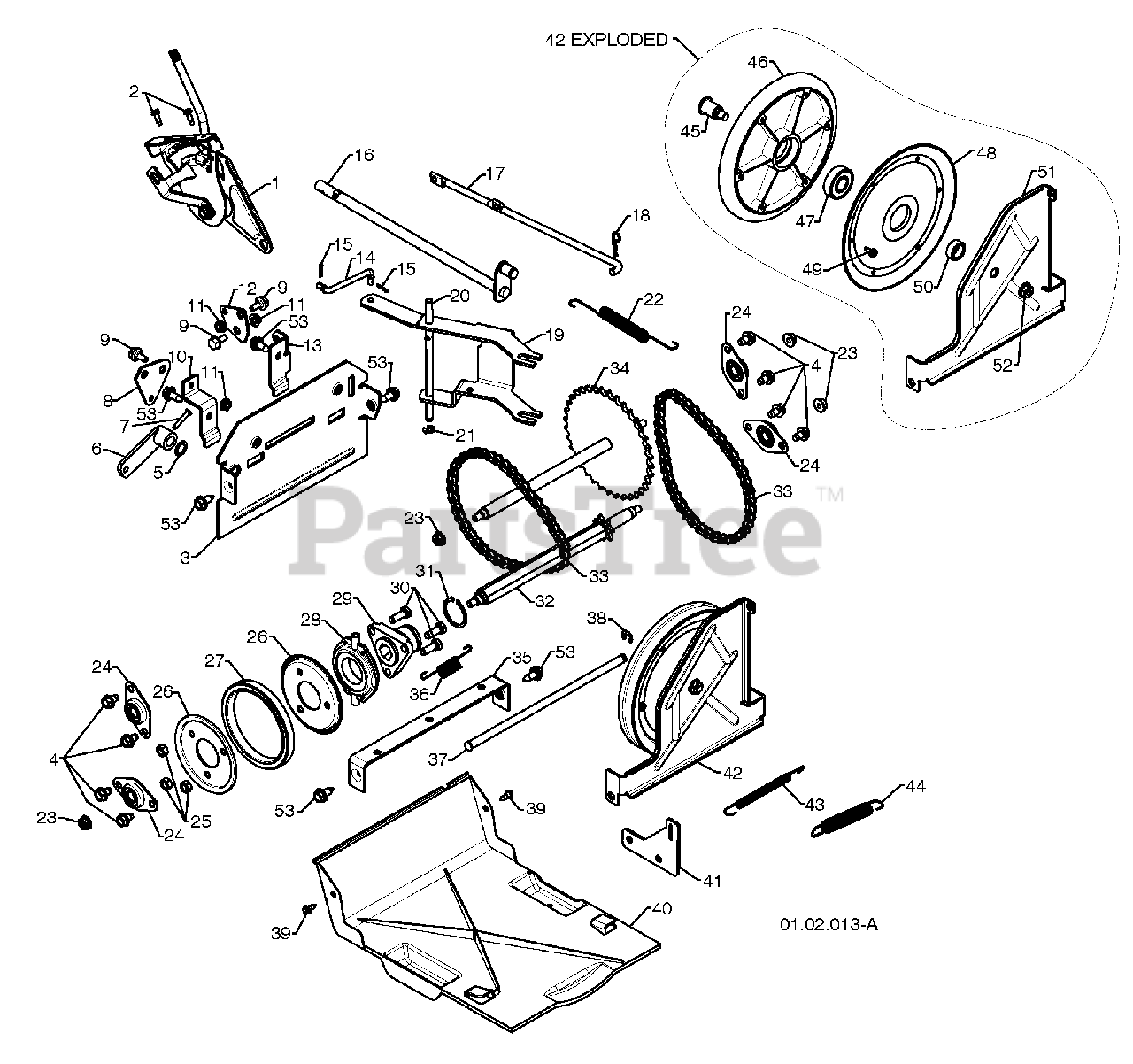

Drive Parts Diagram

  • Title

1

Husqvarna 532198875

Speed Selector Assembly
(Superseded to 532429667)

$

$

Not available

2

Husqvarna 817501010

Screw 10-24 X .625

$

$

Not available

3

Husqvarna 532436080

End Plate

$24.99

$

Usually ships in 3-10 days

0

4

Husqvarna 817490508

Screw 5/16-18 X .50 .625
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532057079

Washer

$6.49

$

In Stock, Qty 20+

0

6

Husqvarna 532405485

Control Arm

$10.99

$

In Stock, only 1 left!

0

7

Husqvarna 532198580

Clevis Pin

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532435800

Shifter Plate

$2.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532402881

Shoulder Bolt

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532435797

Shifter Bracket

$2.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532191730

Nut 1/4-20

$7.49

$

In Stock, Qty 8

0

12

Husqvarna 532435799

Clutch Plate
(Superseded to 532415435)

$2.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532435796

Clutch Bracket
(Superseded to 532416864)

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532187101

Shifter Link

$

$

Not available

15

Husqvarna 532700279

Retainer

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532427542

Control Shaft
(Superseded to 532429668)

$47.99

$

In Stock, only 1 left!

0

17

Husqvarna 532402568

Clutch Rod

$

$

Not available

18

Husqvarna 532169675

Retainer

$7.49

$

In Stock, only 4 left!

0

19

Husqvarna 532401732

Shifter Yoke
(Superseded to 581422501)

$26.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532402310

Pivot Rod

$6.49

$

In Stock, only 1 left!

0

21

Husqvarna 812000036

Retainer

$6.49

$

In Stock, only 1 left!

0

22

Husqvarna 532402878

Return Spring

$6.49

$

In Stock, only 2 left!

0

23

Husqvarna 532751153

Nut 5/16-18

$4.99

$

In Stock, Qty 9

0

24

Husqvarna 532408981

Bearing

$9.99

$

Usually ships in 3-10 days

0

25

Husqvarna 873930500

Nut 5/16-18

$7.49

$

In Stock, only 2 left!

0

26

Husqvarna 532435789

Rubber Wheel Plate

$

$

Not available

27

Husqvarna 532179831

Rubber Ring
(Superseded to 585021001)

$24.99

$

In Stock, Qty 8

0

28

Husqvarna 532175344

Bearing
(Superseded to 597412801)

$17.99

$

In Stock, only 1 left!

0

29

Husqvarna 532178613

Wheel Hub

$30.99

$

Usually ships in 3-10 days

0

30

Husqvarna 874760514

Screw 5/16-18-.875
(Superseded to 596322201)

$3.99

$

In Stock, only 2 left!

0

31

Husqvarna 812000012

Retainer Ring
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532402187

Sprocket Shaft

$

$

Not available

33

Husqvarna 532401619

Chain

$15.99

$

In Stock, only 2 left!

0

34

Husqvarna 532417234

Sprocket Weldment
(Superseded to 532437303)

$47.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532435955

Shifter Bracket
(Superseded to 532401984)

$9.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532180135

Spring

$6.49

$

In Stock, Qty 10

0

37

Husqvarna 532402652

Plate Pivot Rod

$21.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532428288

E-Ring .375

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532184471

Shoulder Screw

$4.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532410877

Bottom Pan

$31.99

$

In Stock, only 1 left!

0

41

Husqvarna 532435772

Spring Bracket
(Superseded to 532416682)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532402689

Drive Plate Assembly
(Superseded to 585111201)

$

$

Not available

43

Husqvarna 532414557

Idler Spring

$6.49

$

In Stock, only 4 left!

0

44

Husqvarna 532178828

Idler Spring

$6.49

$

In Stock, Qty 12

0

45

Husqvarna 532429279

Pulley Shaft

$

$

Currently unavailable

46

Husqvarna 532401820

Drive Plate
(Superseded to 585111201)

$

$

Not available

47

Husqvarna 532198791

Bearing

$18.99

$

In Stock, only 1 left!

0

48

Husqvarna 532402393

Pulley Half
(Superseded to 585111201)

$

$

Not available

49

Husqvarna 817541008

Screw 10-24 X .50

$4.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532402511

Spacer Bearing

$4.99

$

In Stock, only 1 left!

0

51

Husqvarna 532435953

Swing Plate
(Superseded to 532422941)

$

$

Not available

52

Husqvarna 532132010

Nut 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

53

Husqvarna 532428867

Screw 5/16-18 X .750

$6.49

$

In Stock, Qty 20+

0
