924 I (1695302) - Simplicity 24" Snow Thrower, 9hp Gear Case Assembly (1734573) Parts Diagram

24" Snow Thrower, 9hp

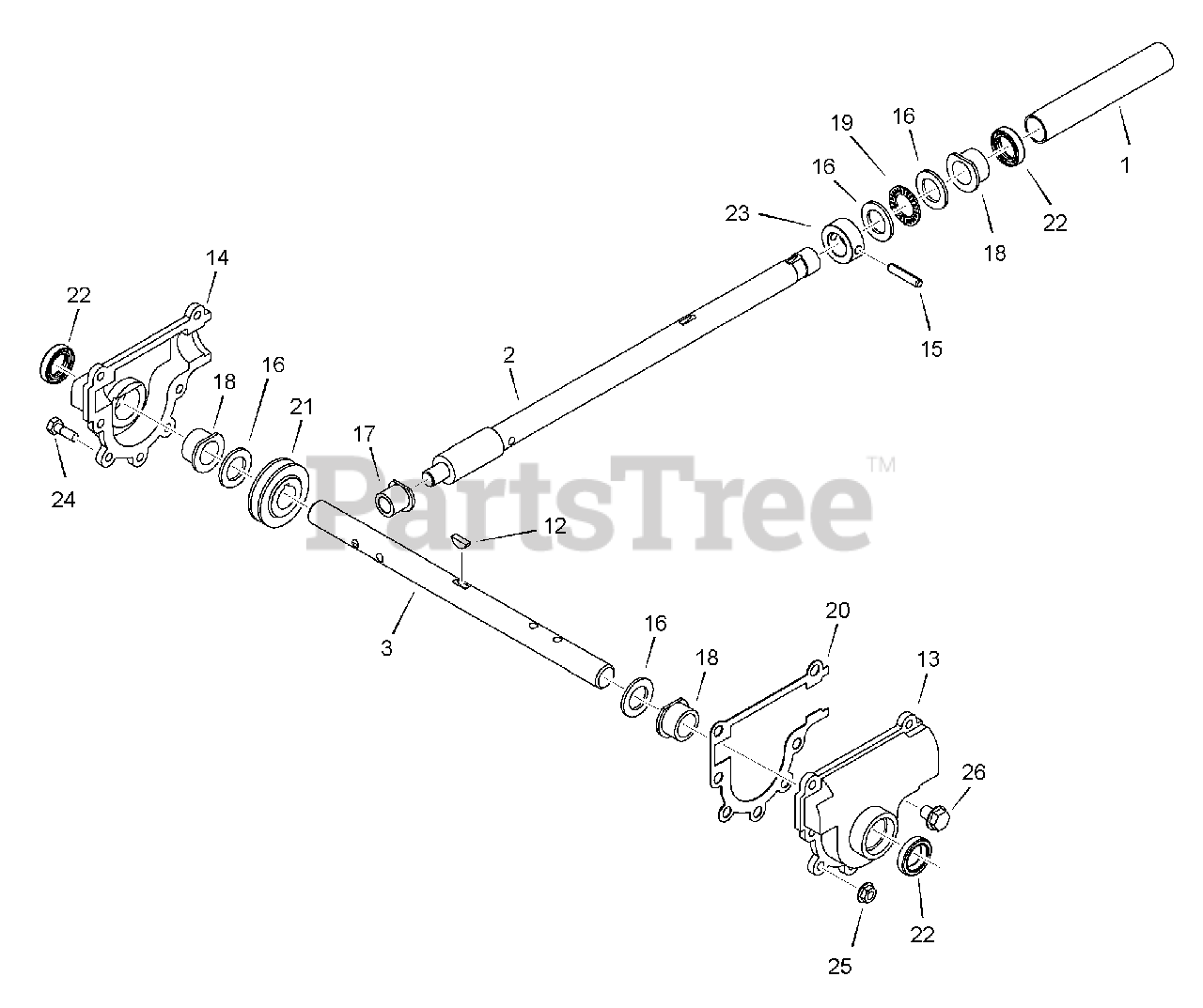

Gear Case Assembly (1734573) Parts Diagram

  • Title

1

Simplicity 1612112SM

TUBE, Plastic

$12.99

$

In Stock, only 1 left!

0

2

Simplicity 1734356SM

SHAFT, Impeller

$32.99

$

Usually ships in 2-12 days

0

3

Simplicity 1734368SM

SHAFT, Auger Intermediate

$46.99

$

Usually ships in 2-12 days

0

12

Simplicity 431787MA

KEY, Woodruff, #61, 5/8 x 3/16
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

13

Simplicity 10576MA

GEAR CASE, LH

$22.99

$

Usually ships in 2-12 days

0

14

Simplicity 10577MA

GEAR CASE, RH

$22.99

$

Usually ships in 2-12 days

0

15

Simplicity 454565MA

PIN, Spring

$

$

Not available

16

Simplicity 48275MA

WASHER, Thrust

$6.49

$

In Stock, Qty 10

0

17

Simplicity 50221MA

BUSHING, Worm

$8.49

$

Usually ships in 2-12 days

0

18

Simplicity 50304MA

BUSHING, Shaft

$8.49

$

In Stock, Qty 16

0

19

Simplicity 50684MA

BEARING, Needle Thrust

$6.49

$

In Stock, only 3 left!

0

20

Simplicity 51279MA

GASKET

$12.99

$

In Stock, only 2 left!

0

21

Simplicity 51405MA

GEAR, Worm

$78.99

$

In Stock, only 3 left!

0

22

Simplicity 9566MA

SEAL, Oil

$12.99

$

In Stock, Qty 10

0

23

Simplicity 580295MA

COLLAR, Thrust, 3/4 X 1-1/4

$22.99

$

Usually ships in 2-12 days

0

24

Simplicity 710025MA

CAPSCREW, 1/4-20 X 3/4

$4.49

$

Usually ships in 2-12 days

0

25

Simplicity 15X143MA

NUT, Hex-Flange, Center-Lock, 1/4-20

$4.99

$

In Stock, only 4 left!

0

26

Simplicity 9344MA

SCREW, 3/8-16 X 1/2
(Superseded to 704213)

$5.49

$

In Stock, only 1 left!

0
