924 I (1695302) - Simplicity 24" Snow Thrower, 9hp Handles & Controls Group Parts Diagram

24" Snow Thrower, 9hp

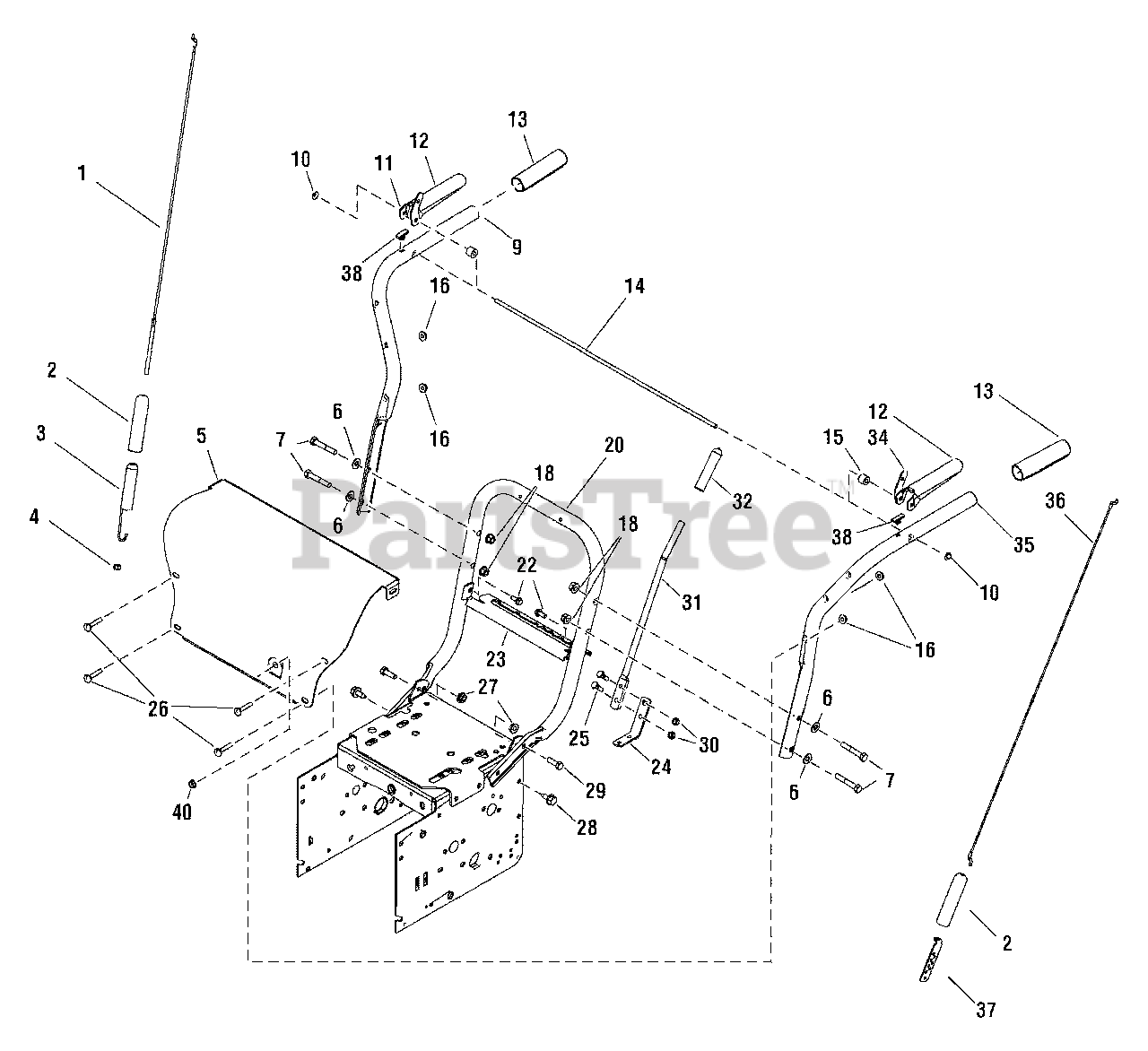

Handles & Controls Group Parts Diagram

  • Title

1

Simplicity 761872MA

CABLE, Auger

$15.99

$

In Stock, only 1 left!

0

2

Simplicity 308146MA

BOOT, Spring End Cover

$6.49

$

In Stock, only 1 left!

0

3

Simplicity 1673MA

SPRING, Auger Control

$8.99

$

In Stock, Qty 19

0

4

Simplicity 1920397SM

NUT, Hex Lock Esna Light 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 1734250CSM

PANEL, Dash Upper

$112.99

$

Usually ships in 2-12 days

0

6

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 13

0

7

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, Qty 6

0

9

Simplicity 1740573ASM

HANDLE, Upper

$58.99

$

Usually ships in 2-12 days

0

10

Simplicity 1960126SM

NUT, Push Pal 1/4 Diameter Stud Capped
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

11

Simplicity 337816E701MA

LEVER ASSEMBLY, Clutch R.H.
(Superseded to 1740700AYP)

$39.99

$

Usually ships in 2-12 days

0

12

Simplicity 337380MA

GRIP, Control Lever

$8.49

$

In Stock, only 2 left!

0

13

Simplicity 337399MA

GRIP, Handle

$5.49

$

Usually ships in 2-12 days

0

14

Simplicity 1734522SM

ROD, 1/4 Diamter 21.81 Large

$11.99

$

Usually ships in 2-12 days

0

15

Simplicity 1734396SM

SPACER

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 1960694SM

NUT, Hex Flange 1/4-20 Esna
(Superseded to 703463)

$4.49

$

In Stock, only 3 left!

0

18

Simplicity 1960686SM

NUT, Hex Flange 5/16-18 Esna
(Superseded to 703115)

$3.49

$

In Stock, only 4 left!

0

20

Simplicity 1740701ASM

HANDLE, Lower

$140.99

$

Usually ships in 2-12 days

0

22

Simplicity 1927429SM

SCREW, Hex Washer Head Taptite 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 2 left!

0

23

Simplicity 1740698ASM

BRACKET, Gear Select

$19.99

$

Usually ships in 2-12 days

0

24

Simplicity 760564MA

LEVER, Spring Shift

$9.99

$

Usually ships in 2-12 days

0

25

Simplicity 1923341SM

CAPSCREW, Hex Head 1/4-20 x 3/4 G5

$4.49

$

In Stock, Qty 8

0

26

Simplicity 1960633SM

CARRIAGE BOLT, 1/4-20 x 1-1/2 G5
(Superseded to 704214)

$3.99

$

Usually ships in 2-12 days

0

27

Simplicity 1935048SM

NUT, Hex Flange 5/16-18 Two-Way Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

28

Simplicity 1664847SM

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 1921333SM

CAPSCREW, Hex Head 5/16-18 x 1 G5
(Superseded to 703585)

$4.99

$

In Stock, Qty 6

0

30

Simplicity 1923358SM

NUT, Hex Centerlock 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

31

Simplicity 336702E701MA

ROD, Shift No Thread

$170.99

$

Usually ships in 2-12 days

0

32

Simplicity 331624MA

GRIP, Ball End

$5.99

$

In Stock, only 1 left!

0

34

Simplicity 337815E701MA

LEVER ASSEMBLY, Clutch L.H.
(Superseded to 1740699AYP)

$39.99

$

In Stock, only 1 left!

0

35

Simplicity 1740587ASM

HANDLE, Upper L.H.

$76.99

$

Usually ships in 2-12 days

0

36

Simplicity 1501123MA

CABLE, Front Drive

$12.99

$

In Stock, Qty 9

0

37

Simplicity 313441MA

BRACKET, Cable Adjusting

$

$

Not available

38

Simplicity 4049MA

BUMPER

$

$

Not available

40

Simplicity 1667588SM

BUSHING

$5.99

$

In Stock, Qty 15

0
