924 SB (961930045-00) - Husqvarna 24" Snow Blower (2009-06) Control Panel / Discharge Chute - B Parts Diagram

24" Snow Blower

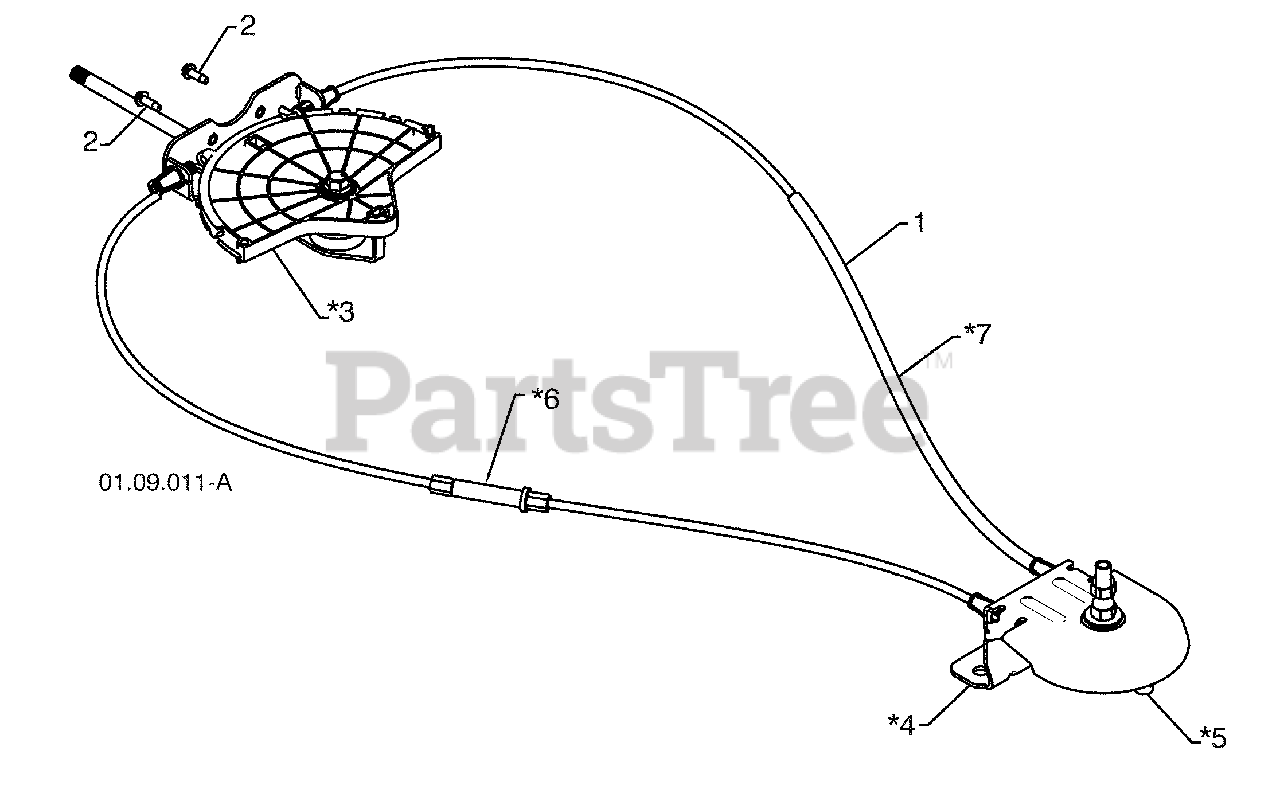

Control Panel / Discharge Chute - B Parts Diagram

  • Title

1

Husqvarna 532428274

LEVER/CABLE ROTATOR ASSEMBLY
(Superseded to 532429673)

$

$

Not available

2

Husqvarna 817501010

SCREW 10-24 X .625

$

$

Not available

3

Husqvarna 532420678

ROTATOR HEAD

Note: ITEMS INDICATED WITH AN * ARE LISTED AS REFERENCE FOR SERVICE PARTS ONLY.

$133.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532422823

ROTATOR PIVOT BRACKET

Note: ITEMS INDICATED WITH AN * ARE LISTED AS REFERENCE FOR SERVICE PARTS ONLY.

$47.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532420675

PULLEY PIVOT

Note: ITEMS INDICATED WITH AN * ARE LISTED AS REFERENCE FOR SERVICE PARTS ONLY.

$42.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532428275

CABLE ASSEMBLY ADJUSTABLE
(Superseded to 532428273)

Note: ITEMS INDICATED WITH AN * ARE LISTED AS REFERENCE FOR SERVICE PARTS ONLY.

$47.99

$

In Stock, only 1 left!

0

7

Husqvarna 532428311

CABLE ASSEMBLY HEAT SHIELD

Note: ITEMS INDICATED WITH AN * ARE LISTED AS REFERENCE FOR SERVICE PARTS ONLY.

$34.99

$

Usually ships in 3-10 days

0
