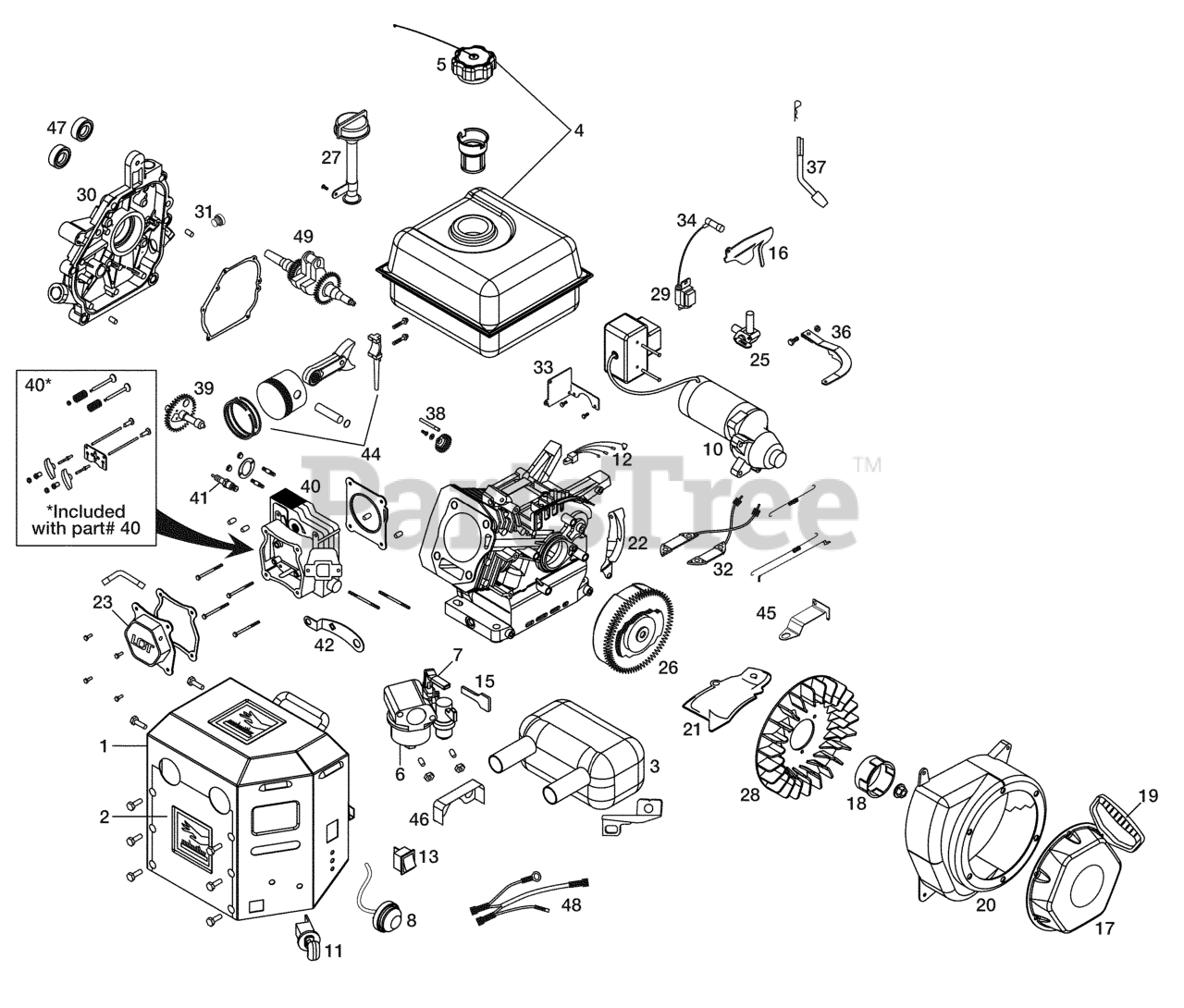

924 SB (961930045-00) - Husqvarna 24" Snow Blower (2009-06) Engine Parts Diagram

24" Snow Blower

Engine Parts Diagram

  • Title

1

Husqvarna 532424932

ASSY.SNOW.HEATER.BOX(SKSN-010

$

$

Not available

2

Husqvarna 532424934

KIT.FASTENER.HEATER(SKSN-0101)

$

$

Not available

3

Husqvarna 532424937

ASSY.SNOW.MUFFLER(SKSN-0200)

$

$

Not available

4

Husqvarna 532424938

ASSY.SNOW.FUEL.TANK(SKSN-0300)

$

$

Not available

5

Husqvarna 532424942

FUEL CAP OVERSIZED CLICK STYLE

Note: (CLICK STYLE)

$20.99

$

In Stock, only 2 left!

0

6

Husqvarna 532424944

ASSY.SNOW.CARB(SKSN-0302)
(Superseded to 585020401)

$90.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532424947

RP SNOW.CHOKE.LVR.CARB
(Superseded to 532424958)

$

$

Not available

8

Husqvarna 532424949

PRIMER.BULB.WITH HOSE (SNOW)
(Superseded to 595079601)

$11.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532424953

ASSY.ELECT.STARTER(SKSN-0400)

$

$

Not available

11

Husqvarna 532424954

SWITH.KEY.ASSEM.SNOW.SINGLE.ST

$31.99

$

In Stock, only 1 left!

0

12

Husqvarna 532424955

CDI.BOX SNOW

$26.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532424957

SWITCH.ON/OFF(SKSN-0403)

$43.99

$

In Stock, only 3 left!

0

15

Husqvarna 532424958

THROT/CHOKE.HND(RED)(SKSN-0500

Note: (RED)

$

$

Not available

16

Husqvarna 532424960

GOVERNOR.LINK.SHIELD PLATE

$

$

Not available

17

Husqvarna 532424962

RECOIL.ASSY(HEX-BLACK)SNOW

Note: (HEX STYLE - BLACK)

$45.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532424966

STARTER.CUP.SMALL(SKSN-0601.1)

$20.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532424968

STARTER.GRIP.SNOW.LCT.SKSN0603
(Superseded to 532443899)

$20.99

$

In Stock, only 2 left!

0

20

Husqvarna 532424971

BLOW.HSG.ASSY.ELEC(SKSN-0602)
(Superseded to 580960501)

$

$

Not available

20A

Husqvarna 532429230

BLOW.HSG.ASSY.ELEC(SKSN-0612)

$

$

Not available

21

Husqvarna 532424973

SHILED.FLYWEEL.SYS(SKSN-0604)

$

$

Not available

22

Husqvarna 532424975

SHLD.ELEC.START.FLY(SKSN-0605)

$

$

Not available

23

Husqvarna 532420580

VALVE COVER ASSEMBLY
(Superseded to 587176901)

$56.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532420592

FUEL.PETCOCK.LQA.3/16".LCT
(Superseded to 532429597)

$22.99

$

In Stock, only 2 left!

0

26

Husqvarna 532424970

ELECT.FLYWHEEL.ASSY(SKSN-0405)
(Superseded to 532429235)

$250.99

$

Usually ships in 3-10 days

0

26A

Husqvarna 532429236

FLYWHL.ASSY.MANUL.SK2081700

$68.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532424969

HIGH OIL FILL DIPSTICK ASSEM

$28.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532420586

FLYWHEEL FAN 420586

$13.99

$

In Stock, only 2 left!

0

29

Husqvarna 532420595

KIT.IGNITION.COIL

$56.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532420606

CRANKCASE COVER ASSY
(Superseded to 583630001)

$85.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532420961

DIPSTICK SMALL

$13.99

$

In Stock, only 2 left!

0

32

Husqvarna 532424959

CHARGING.COIL(ELEC)SKSN0406.1

$45.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532429244

ELECTRIC.START.BRKT(SKSN0606)

$

$

Not available

34

Husqvarna 532429246

SPARK.PLUG.BOOT(SK2083800)

$17.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532420601

RP_IT.GOVERNOR.ARM(SUMMER ENG)
(Superseded to 581768701)

$9.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532420602

KIT.GOVERNOR.CRANK(SK208-3100)
(Superseded to 581768701)

$9.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532429251

THROTTLE CONTROL ASSEM

$39.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532420584

KIT.CAMSHAFT.208CC.LCT
(Superseded to 582051401)

$113.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532420578

CYLINDR.HEAD.SRV.KIT W/GASKET
(Superseded to 582045701)

$193.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532424939

SPARK.PLUG(2083810)

$15.99

$

In Stock, Qty 7

0

42

Husqvarna 532424936

CDI.BOX.BRACKET SNOW

$

$

Not available

44

Husqvarna 532420582

KIT.PISTON.SRV(SK208-1400)

$125.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532429259

SPEED.CTRL.BRKT.(SKSN0150)

$20.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532429260

SHIELD.VAPOR.SNOW

$20.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532429261

OIL.SHIELD.KIT
(Superseded to 532429599)

$20.99

$

In Stock, only 2 left!

0

48

Husqvarna 532429262

WIRE.HARNESS.SNOW
(Superseded to 532429284)

$34.99

$

In Stock, only 3 left!

0

49

Husqvarna 532429263

CRANKSHAFT-KEYED

$

$

Not available
