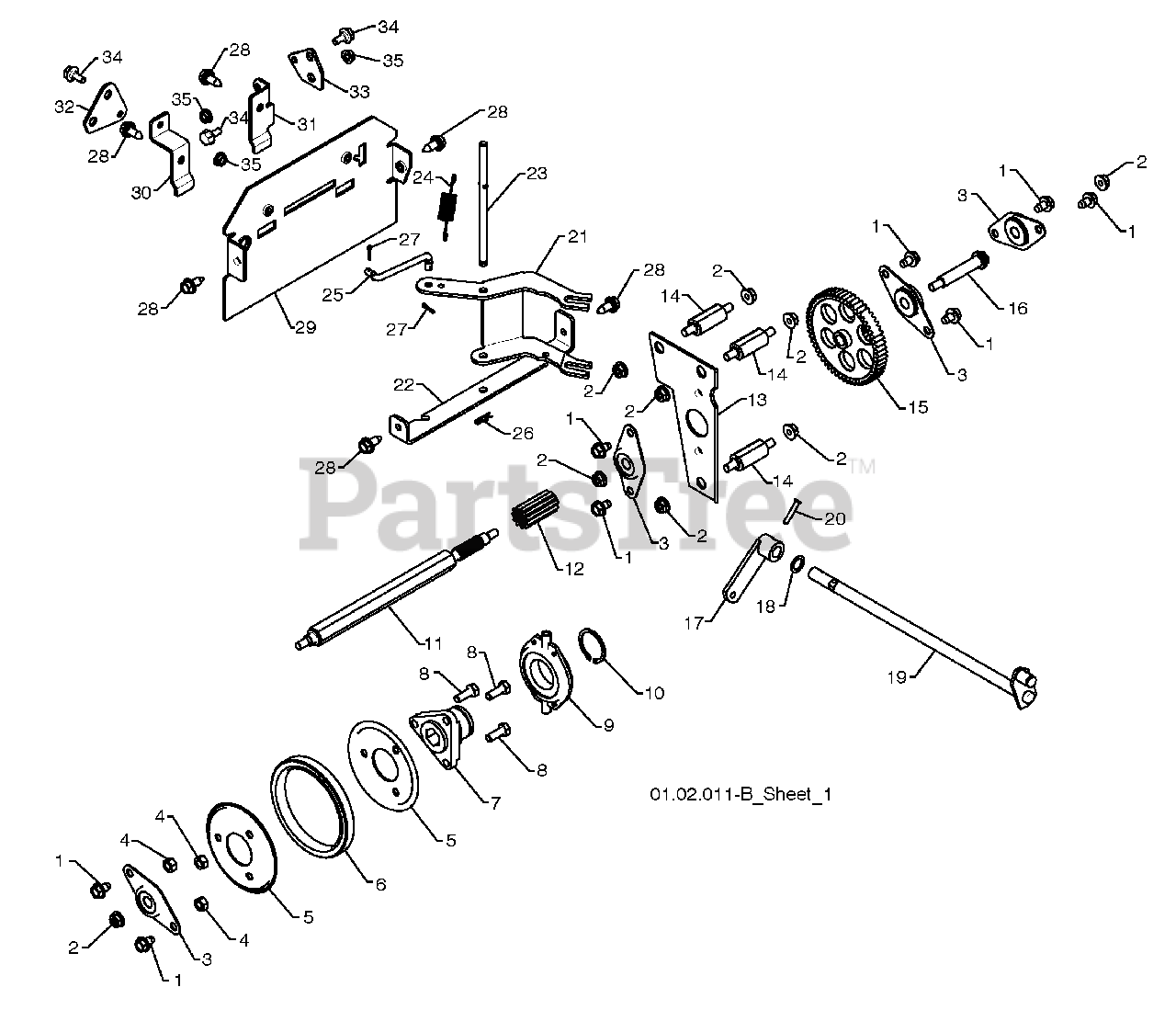

924 SB (961930063-00) - Husqvarna 24" Snow Blower (2010-04) Drive Parts Diagram

24" Snow Blower

Drive Parts Diagram

  • Title

1

Husqvarna 817490508

BOLT 5/16-18 X .500
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532751153

NUT 5/16-18

$4.99

$

In Stock, Qty 9

0

3

Husqvarna 532180017

FLANGE BEARING

$24.99

$

Usually ships in 3-10 days

0

4

Husqvarna 873930500

NUT 5/16-18

$7.49

$

In Stock, only 2 left!

0

5

Husqvarna 532435789

RUBBER WHEEL PLATE

$

$

Not available

6

Husqvarna 532179831

RUBBER WHEEL RING
(Superseded to 585021001)

$24.99

$

In Stock, Qty 8

0

7

Husqvarna 532178613

RUBBER WHEEL HUB

$30.99

$

Usually ships in 3-10 days

0

8

Husqvarna 874760514

BOLT 5/16-18 X .875
(Superseded to 596322201)

$3.99

$

In Stock, only 2 left!

0

9

Husqvarna 532175344

TRUNNION BEARING ASSEMBLY
(Superseded to 597412801)

$17.99

$

In Stock, only 1 left!

0

10

Husqvarna 812000012

RETAINER
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532180066

HEX SHAFT

$

$

Not available

12

Husqvarna 532180065

PINION GEAR

$

$

Not available

13

Husqvarna 532435790

AUXILIARY PLATE
(Superseded to 532192616)

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532179270

SPACER PLATE

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532180082

INTERMEDIATE GEAR
(Superseded to 532441417)

$265.99

$

In Stock, only 1 left!

0

16

Husqvarna 532180134

AUXILIARY SHAFT

$

$

Not available

17

Husqvarna 532405485

CONTROL ARM

$10.99

$

In Stock, only 1 left!

0

18

Husqvarna 532057079

WASHER

$6.49

$

In Stock, Qty 20+

0

19

Husqvarna 532427542

CONTROL SHAFT ASSEMBLY
(Superseded to 532429668)

$47.99

$

In Stock, only 1 left!

0

20

Husqvarna 532198580

CLEVIS PIN

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532435792

SHIFTER LEVER
(Superseded to 532184080)

$

$

Not available

22

Husqvarna 532435793

PIVOT BRACKET

$7.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532178807

PIVOT PIN

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532180135

SPRING

$6.49

$

In Stock, Qty 10

0

25

Husqvarna 532187101

SHIFTER LINK

$

$

Not available

26

Husqvarna 532085179

RETAINER

$7.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532700279

CLIP

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532428867

SCREW 5/16-18 x .750

$6.49

$

In Stock, Qty 20+

0

29

Husqvarna 532416921

REAR PLATE

$

$

Not available

30

Husqvarna 532435797

SHIFTER PLATE BRACKET

$2.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532435796

CLUTCH PLATE BRACKET
(Superseded to 532416864)

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532435800

SHIFTER PLATE

$2.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532435799

CLUTCH PLATE
(Superseded to 532415435)

$2.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532402881

SHOULDER BOLT 1/4-20 X .500

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532191730

NUT 1/4-20

$7.49

$

In Stock, Qty 8

0
