924 SBE (961930022-02) - Husqvarna 24" Snow Blower (2007-10) Chassis / Engine / Pulleys Parts Diagram

24" Snow Blower

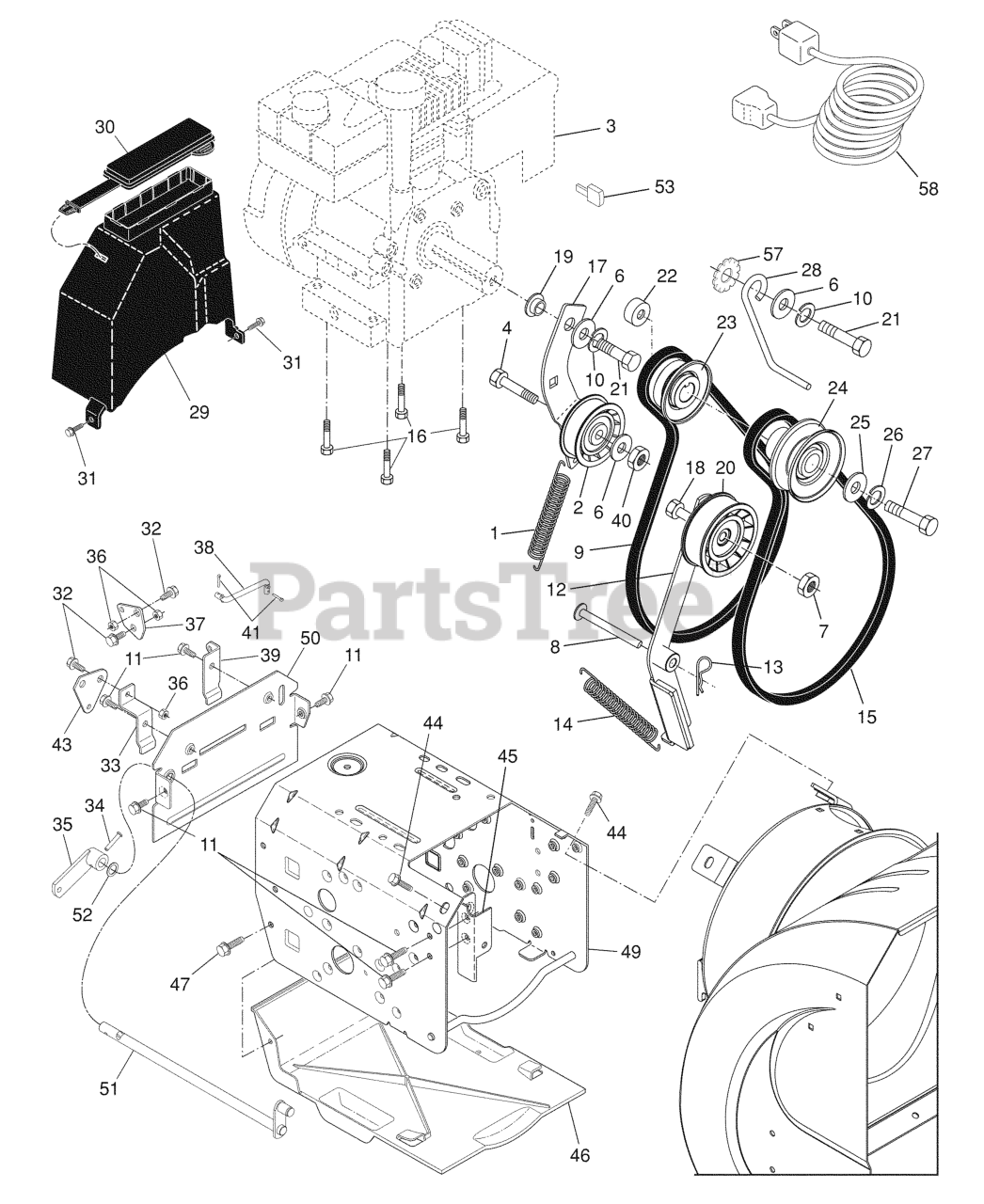

Chassis / Engine / Pulleys Parts Diagram

  • Title

1

Husqvarna 532181044

RP SPRING, TRACTION IDLER
(Superseded to 532414557)

$6.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532180522

PULLEY.W/SPACER.2.25

$28.99

$

In Stock, Qty 5

0

3

Engine, Tecumseh, Model Number LH358SA-159622A (For engine service and replacement parts, call Tecumseh Products at 1-800-558-5402)

$

$

Not available

4

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 595305701)

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532059289

STEEL WASHER

$4.99

$

In Stock, Qty 5

0

7

Husqvarna 532166785

LOCKNUT 5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, Qty 15

0

8

Husqvarna 532175330

PIN, IDLER PIVOT

$5.99

$

In Stock, Qty 10

0

9

Husqvarna 532179092

V-BELT, TRACTION DRIVE
(Superseded to 532416954)

$

$

Not available

10

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 817490508

Screw, Hex Head 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

12

Husqvarna 532410420

ARM PAD ASSY
(Superseded to 532422111)

$

$

Not available

13

Husqvarna 532085179

RETAINER CLIP PM

$

$

Not available

14

Husqvarna 532178828

SPRING, BRAKE

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532408010

BELT.V.IMPELLER.DRIVE

$

$

Not available

16

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, Qty 12

0

17

Husqvarna 532179521

IDLER ARM ASM.

$

$

Not available

18

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$1.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532175331

RP BUSHING, IDLER PIVOT
(Superseded to 587343701)

$6.99

$

In Stock, only 4 left!

0

20

Husqvarna 532180523

PULLEY.W/SPACER.2.75
(Superseded to 594095301)

$13.99

$

Usually ships in 3-10 days

0

21

Husqvarna 874610516

SCREW

$4.99

$

In Stock, only 4 left!

0

22

Husqvarna 532409475

SPACER.ENGINE.PULLEY

$

$

Not available

23

Husqvarna 532180478

PULLEY,ENGINE TRACTION DRIVE
(Superseded to 595926601)

$37.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532179157

PULLEY, ENGINE IMPELLER DRIVE
(Superseded to 532426491)

$20.99

$

In Stock, only 2 left!

0

25

Husqvarna 532400026

WASHER, FLAT 3/8

$9.49

$

In Stock, only 2 left!

0

26

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0
