924029 - Ariens 32" Sno-Thro Attachment (SN: 012001 & Above) SNO-THRO 32" Parts Diagram

32" Sno-Thro Attachment

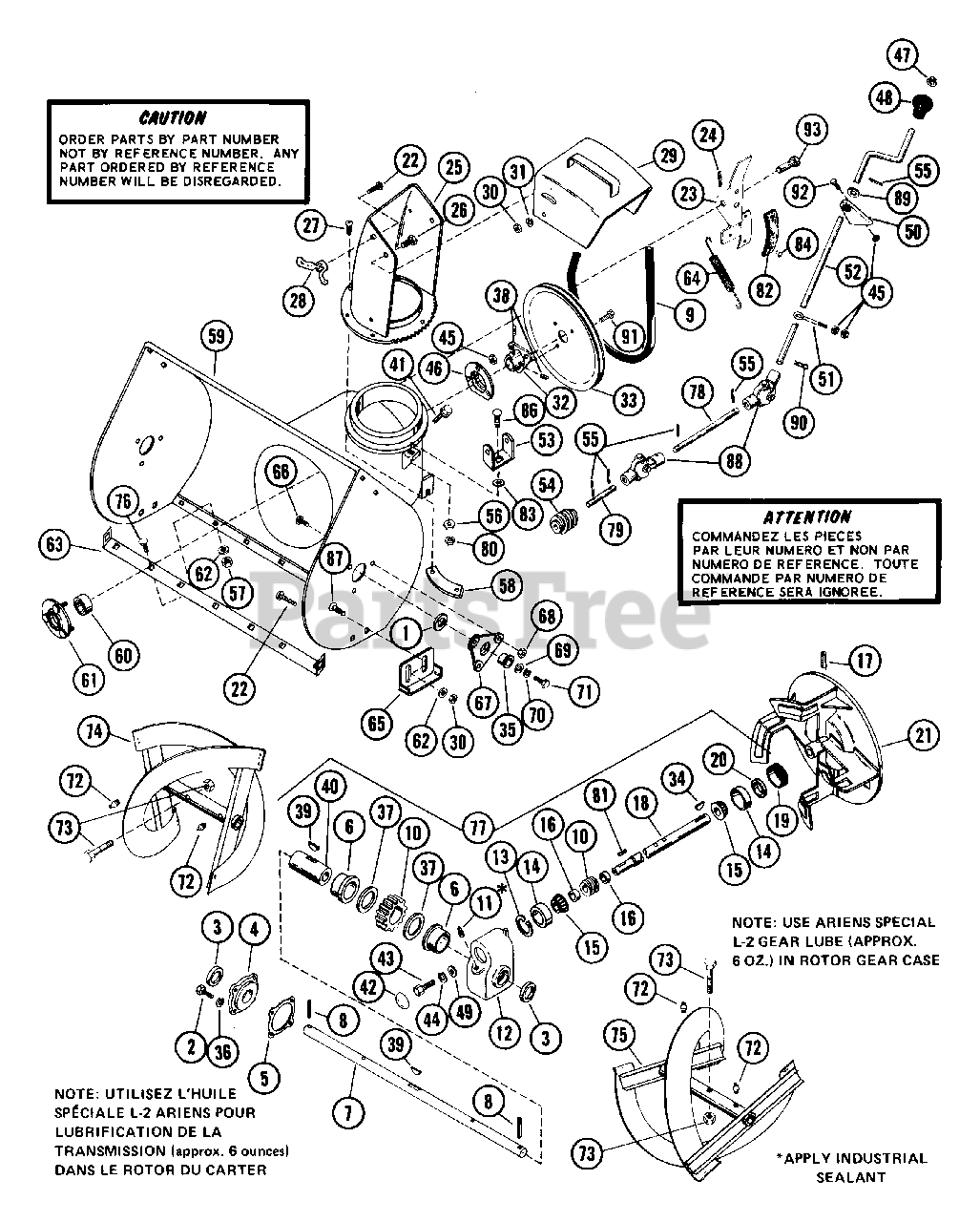

SNO-THRO 32" Parts Diagram

  • Title

1

Ariens 06404600

WSHR-FL-STL 1.010X1.505X.062PL
(Superseded to 06436300)

$1.99

$

In Stock, Qty 20+

0

2

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$1.49

$

In Stock, Qty 13

0

3

Ariens 05607000

SEAL 1.625X2.125X.250

$10.99

$

In Stock, Qty 19

0

4

Ariens 02401300

GEAR CASE COVER

$139.99

$

Usually ships in 4-12 days

0

5

Ariens 00200800

GASKET

$3.99

$

In Stock, Qty 17

0

6

Ariens 05505900

BSHG-FLG .683X1.87X1.68X2.250

$15.99

$

In Stock, Qty 5

0

7

Ariens 02406500

SHAFT, 32" RAKE - 1.00 DIA.

$223.99

$

Usually ships in 4-12 days

0

8

Ariens 05803000

PIN-ROLL .188X1.50

$1.49

$

In Stock, only 2 left!

0

9

Ariens 07210800

V-BELT, 4L-RAW EDGE

$47.99

$

In Stock, Qty 14

0

10

Ariens 52400900

WORM & GEAR SERVICE ASSEMBLY

$180.99

$

Usually ships in 4-12 days

0

11

Ariens 00113800

PIPE PLUG

$6.49

$

Usually ships in 4-12 days

0

12

Ariens 02400200

GEAR CASE - CAST IRON

$

$

Not available

13

Ariens 05703200

RG-RTNG INT 1.781 HSG X.062
(Superseded to 05707500)

$9.99

$

In Stock, Qty 8

0

14

Ariens 05404400

BRG-CUP 1.781X.475

$11.99

$

In Stock, Qty 20+

0

15

Ariens 05404500

BRG-CONE .750X.61

$29.99

$

In Stock, only 3 left!

0

16

Ariens 00200500

BSHG, SPCR .755X1.12X.50 PM

$7.49

$

In Stock, Qty 11

0

17

Ariens 05801500

PIN-ROLL .313X1.75

$2.99

$

In Stock, only 4 left!

0

18

Ariens 02406200

SHAFT, WORM - 1.00 DIA.

$263.99

$

Usually ships in 4-12 days

0

19

Ariens 02401500

ADJUSTMENT PLUG - 1" SHAFT

$94.99

$

Usually ships in 4-12 days

0

20

Ariens 05606100

SEAL 1.000X1.312X.150

$13.99

$

In Stock, only 3 left!

0

21

Ariens 02418500

FAN, 12"
(Superseded to 02418551)

$210.99

$

Usually ships in 4-12 days

0

22

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

23

Ariens 62403500

BRAKE ARM ASSEMBLY
(Superseded to 52404800)

$28.99

$

In Stock, only 2 left!

0

24

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 5

0

25

Ariens 02434900

DISCHARGE CHUTE
(Superseded to 52408500)

$194.99

$

In Stock, only 1 left!

0

26

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.99

$

In Stock, Qty 11

0

27

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

28

Ariens 01019300

WING NUT

$

$

Not available

29

Ariens 51001200

SERVICE DEFLECTOR ASSM
(Superseded to 52406100)

$152.99

$

Usually ships in 4-12 days

0

30

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$4.99

$

In Stock, Qty 17

0

32

Ariens 02421600

PULLEY HUB
(Superseded to 52408600)

$159.99

$

Usually ships in 4-12 days

0

33

Ariens 07307000

PLY-V 9.0 X 1.25 3BLT

$52.99

$

In Stock, only 2 left!

0

34

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$3.49

$

In Stock, Qty 9

0

35

Ariens 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$13.99

$

In Stock, only 2 left!

0

36

Ariens 06301700

WSHR-LK-EXT. 250 ID

$2.49

$

Usually ships in 4-12 days

0

37

Ariens 06408700

WSHR-FL-STL 1.625X2.500X.012

$11.99

$

In Stock, only 4 left!

0

38

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$3.49

$

In Stock, only 2 left!

0

39

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

$3.99

$

In Stock, only 1 left!

0

40

Ariens 02406400

GEAR CASE SHAFT

$184.99

$

Usually ships in 4-12 days

0

41

Ariens 07003100

BLT-SCRHFWH .38-16X.75 PL
(Superseded to 07028500)

$1.99

$

In Stock, only 3 left!

0

42

Ariens 00403700

DUST CAP

$18.99

$

In Stock, only 2 left!

0

43

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.99

$

In Stock, Qty 20+

0

44

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 3 left!

0

45

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

46

Ariens 01014200

BEARING FLANGE

$6.49

$

In Stock, Qty 7

0

47

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, only 2 left!

0

48

Ariens 07508300

KNOB

$14.99

$

In Stock, only 2 left!

0

49

Ariens 06408200

WSHR-FL-STL .328X1.0X.094
(Superseded to 06437500)

$3.99

$

In Stock, only 1 left!

0

50

Ariens 02434100

ROD HANGER

$68.99

$

In Stock, only 1 left!

0

51

Ariens 02432700

EYEBOLT
(Superseded to 02440100)

$11.99

$

Usually ships in 4-12 days

0

52

Ariens 02434000

CRANK, CHUTE

$

$

Not available

53

Ariens 02212300

WORM CLEVIS

$16.99

$

Usually ships in 4-12 days

0

54

Ariens 02211000

WORM GEAR

$

$

Not available

55

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, only 2 left!

0

56

Ariens 06302300

WSHR-LK .313X.062
(Superseded to 06310600)

$6.49

$

In Stock, only 2 left!

0

57

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

58

Ariens 01043800

CHUTE CLAMP
(Superseded to 52409200)

$30.99

$

In Stock, only 1 left!

0

59

Ariens 52402200

32 IN BLOWER HOUSING ASSY

Note: (32")

$

$

Not available

60

Ariens 05406300

BRG-BALL .750X1.750X.50

$27.99

$

In Stock, only 3 left!

0

61

Ariens 00301700

BEARING FLANGE

$17.99

$

In Stock, only 2 left!

0

62

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

63

Ariens 02425600

SCRAPER BLADE

$63.99

$

Usually ships in 4-12 days

0

64

Ariens 08316400

SG-TENS .062X.56X8.0 WLD 11
(Superseded to 08300538)

$15.99

$

In Stock, Qty 20+

0

65

Ariens 01016500

RUNNER
(Superseded to 02483859)

$20.99

$

In Stock, Qty 9

0

66

Ariens 07001100

SCR-SLTR-SERNK .25-20X.62 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 6

0

67

Ariens 01018400

BEARING SUPPORT

$

$

Not available

68

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.49

$

In Stock, Qty 20+

0

69

Ariens 06404700

WSHR-FL-STL .511X1.441X.125 PL
(Superseded to 06436400)

$3.49

$

In Stock, Qty 20+

0

70

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

Usually ships in 4-12 days

0

71

Ariens 05902400

BLT-HEX .50-13X1.00 PL GR2
(Superseded to 05947100)

$2.99

$

In Stock, Qty 7

0

72

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

73

Ariens 51001500

SHEAR BOLT SERVICE ASSEMBLY

$5.99

$

In Stock, Qty 20+

0

74

Ariens 52401300

RAKE, RIGHT-32"(1ID X 15.75OD)
(Superseded to 52412300)

$380.99

$

Usually ships in 4-12 days

0

75

Ariens 52401400

RAKE, LEFT-32"(1"ID X 15.75OD)
(Superseded to 52412200)

$380.99

$

Usually ships in 4-12 days

0

76

Ariens 06202600

BLT-RDHDSQNK .312-18X.62 PL
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

77

Ariens 52400500

GEAR CASE - CAST IRON
(Superseded to 52408000)

$821.99

$

Usually ships in 4-12 days

0

78

Ariens 02434600

ROD

$46.99

$

Usually ships in 4-12 days

0

79

Ariens 01049400

WORM SHAFT

$45.99

$

In Stock, only 1 left!

0

80

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$1.49

$

In Stock, Qty 9

0

81

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.99

$

In Stock, Qty 5

0

82

Ariens 02217800

BRAKE LINING

$9.99

$

In Stock, Qty 11

0

83

Ariens 06303200

WSHR-LK-EXT .313X.030 PL

$2.49

$

Usually ships in 4-12 days

0

84

Ariens 06806200

RVT-TBLR .187X.375 OH ST PL

$

$

Not available

86

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

87

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.99

$

In Stock, Qty 20+

0

88

Ariens 62406500

UNIVERSAL JOINT ASSY
(Superseded to 02470400)

$131.99

$

In Stock, only 1 left!

0

89

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

90

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.99

$

In Stock, only 1 left!

0

91

Ariens 07001700

BLT-SERHFWH .31-18X.62 PL
(Superseded to 07047100)

$1.99

$

In Stock, Qty 5

0

92

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 5

0

93

Ariens 02434500

CLEVIS PIN

$3.99

$

Usually ships in 4-12 days
