924046 (ST 524) - Ariens 24" Snow Blower, 5hp Tecumseh (SN: 014501 & Above) Sno-Thro 32" Parts Diagram

24" Snow Blower, 5hp Tecumseh

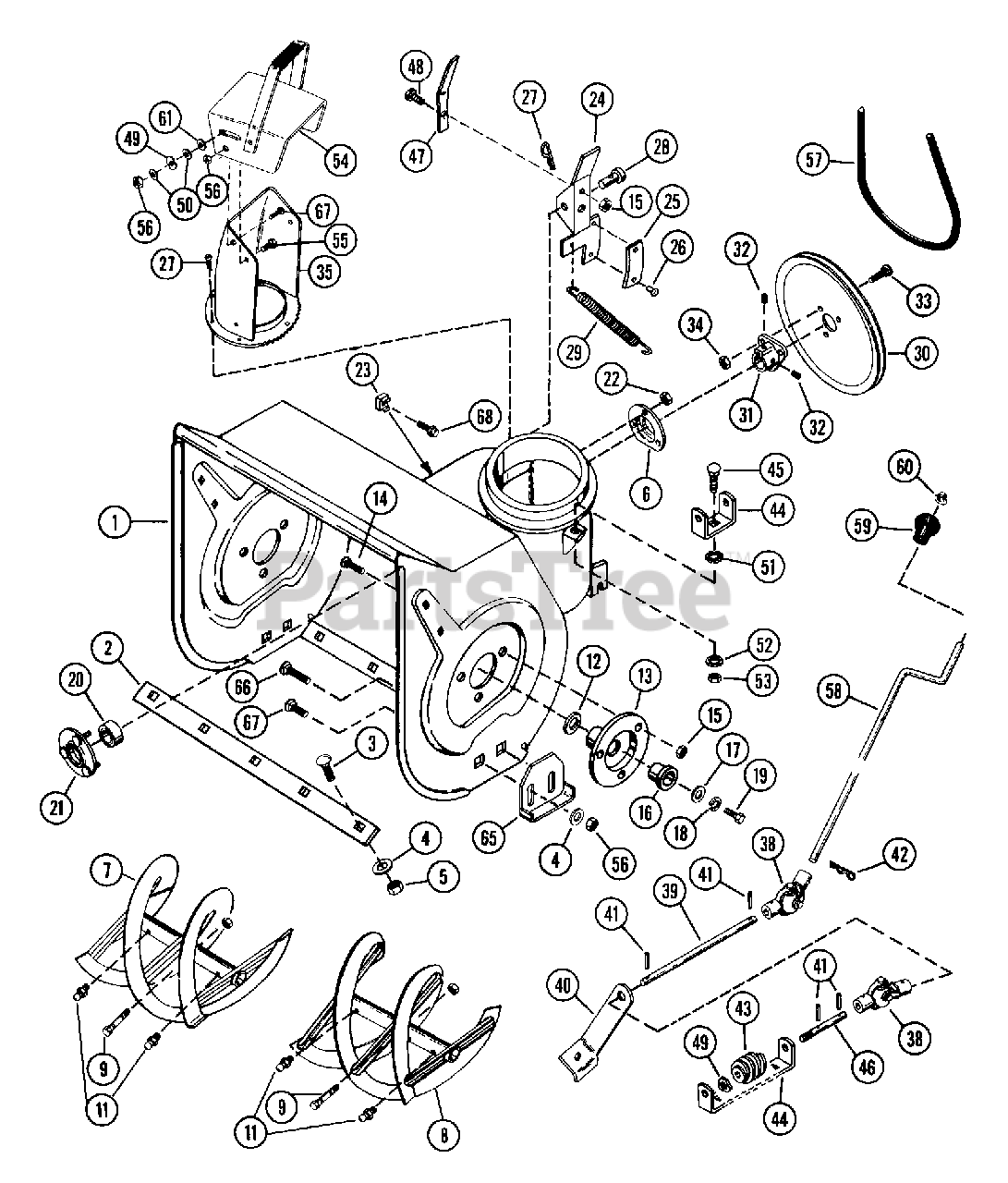

Sno-Thro 32" Parts Diagram

  • Title

1

Ariens 52403800

BLOWER HOUSING W/DECALS 32
(Superseded to 52409700)

$657.99

$

In Stock, only 1 left!

0

2

Ariens 02437300

SCRAPER BLADE 32"

$70.99

$

In Stock, only 2 left!

0

3

Ariens 06202600

BLT-RDHDSQNK .312-18X.62 PL
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

4

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

5

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

6

Ariens 03185900

BEARING FLANGE

$23.99

$

In Stock, only 4 left!

0

7

Ariens 52401300

RAKE, RIGHT-32"(1ID X 15.75OD)
(Superseded to 52412300)

Note: (INCLUDES ZERKS)

$380.99

$

Usually ships in 4-12 days

0

8

Ariens 52401400

RAKE, LEFT-32"(1"ID X 15.75OD)
(Superseded to 52412200)

Note: (INCLUDES ZERKS)

$380.99

$

Usually ships in 4-12 days

0

9

Ariens 51001500

SHEAR BOLT SERVICE ASSEMBLY

$5.99

$

In Stock, Qty 20+

0

11

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

12

Ariens 06404600

WSHR-FL-STL 1.010X1.505X.062PL
(Superseded to 06436300)

$1.99

$

In Stock, Qty 18

0

13

Ariens 02437400

BEARING SUPPORT
(Superseded to 05063300)

$30.99

$

In Stock, only 3 left!

0

14

Ariens 07005800

BLT-SERNK SL .25-20X.50 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 6

0

15

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$13.99

$

In Stock, only 2 left!

0

17

Ariens 06404700

WSHR-FL-STL .511X1.441X.125 PL
(Superseded to 06436400)

$3.49

$

In Stock, Qty 20+

0

18

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

Usually ships in 4-12 days

0

19

Ariens 05902400

BLT-HEX .50-13X1.00 PL GR2
(Superseded to 05947100)

$2.99

$

In Stock, Qty 7

0

20

Ariens 05405200

BRG-BALL 1.0X2.0X.56
(Superseded to 05416000)

$16.99

$

In Stock, only 2 left!

0

21

Ariens 03186000

BEARING FLANGE

$46.99

$

Usually ships in 4-12 days

0

22

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 07002600

NUT-RETNR .38-16 TINRMAN

$9.99

$

In Stock, Qty 7

0

24

Ariens 62403500

BRAKE ARM ASSEMBLY
(Superseded to 52404800)

$28.99

$

In Stock, only 2 left!

0

25

Ariens 02217800

BRAKE LINING

$9.99

$

In Stock, Qty 11

0

26

Ariens 06806700

RVT-TBLR .187X.437 RH ST PL

$1.49

$

In Stock, Qty 11

0

27

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 5

0

28

Ariens 02448100

PIN-CLEV .371X1.16 YWZC

$3.99

$

Usually ships in 4-12 days

0

29

Ariens 08316400

SG-TENS .062X.56X8.0 WLD 11
(Superseded to 08300538)

$15.99

$

In Stock, Qty 20+

0

30

Ariens 07307000

PLY-V 9.0 X 1.25 3BLT

$52.99

$

In Stock, only 2 left!

0

31

Ariens 02438900

HUB

$116.99

$

In Stock, only 2 left!

0

32

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$3.49

$

In Stock, only 2 left!

0

33

Ariens 07006000

BLT-SERRDHD SL .31-18X.87 PL
(Superseded to 07028700)

$6.49

$

In Stock, only 3 left!

0

34

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

35

Ariens 02440300

DISCHARGE CHUTE
(Superseded to 52408500)

$194.99

$

In Stock, only 1 left!

0

36

Ariens 01043800

CHUTE CLAMP
(Superseded to 52409200)

$30.99

$

In Stock, only 1 left!

0

37

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

38

Ariens 62406500

UNIVERSAL JOINT ASSY
(Superseded to 02470400)

$131.99

$

In Stock, only 1 left!

0

39

Ariens 02434600

ROD

$46.99

$

Usually ships in 4-12 days

0

40

Ariens 02443400

CHUTE CRANK BRACKET
(Superseded to 02473551)

$

$

Not available

41

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

Usually ships in 4-12 days

0

42

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.99

$

In Stock, only 1 left!

0

43

Ariens 02450000

WORM GEAR L.H.

$

$

Not available

44

Ariens 02212300

WORM CLEVIS

$16.99

$

Usually ships in 4-12 days

0

45

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

46

Ariens 01049400

WORM SHAFT

$45.99

$

In Stock, only 1 left!

0

48

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, only 3 left!

0

49

Ariens 01320200

WAVE WASHER .390X.655X.110

$3.99

$

In Stock, Qty 7

0

50

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

51

Ariens 06303500

WSHR-LK-EXT .375X.035 PL
(Superseded to 06308700)

$2.49

$

Usually ships in 4-12 days

0

52

Ariens 06302300

WSHR-LK .313X.062
(Superseded to 06310600)

$6.49

$

In Stock, only 2 left!

0

53

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$1.49

$

In Stock, Qty 8

0

54

Ariens 52404200

DEFLECTOR W/ DECAL
(Superseded to 52406100)

$152.99

$

Usually ships in 4-12 days

0

55

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.99

$

In Stock, Qty 10

0

56

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

57

Ariens 07210800

V-BELT, 4L-RAW EDGE

$47.99

$

In Stock, Qty 14

0

58

Ariens 02446100

CHUTE CONTROL CRANK
(Superseded to 03710000)

$55.99

$

Usually ships in 4-12 days

0

59

Ariens 07508300

KNOB

$14.99

$

In Stock, only 2 left!

0

60

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, only 2 left!

0

61

Ariens 06416800

WSHR-PLASTIC .390X.875X.062
(Superseded to 06433600)

$0.99

$

In Stock, Qty 10

0

65

Ariens 02449400

RUNNER - SKID SHOE
(Superseded to 03075559)

$39.99

$

In Stock, only 2 left!

0

66

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.99

$

In Stock, Qty 20+

0

67

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

68

Ariens 07003100

BLT-SCRHFWH .38-16X.75 PL
(Superseded to 07028500)

$1.99

$

In Stock, only 3 left!

0
