924051 (TT 8) - Ariens Snow Blower, 8hp Tecumseh (SN: 000501 & Above) Engine And Belt Drive Parts Diagram

Snow Blower, 8hp Tecumseh

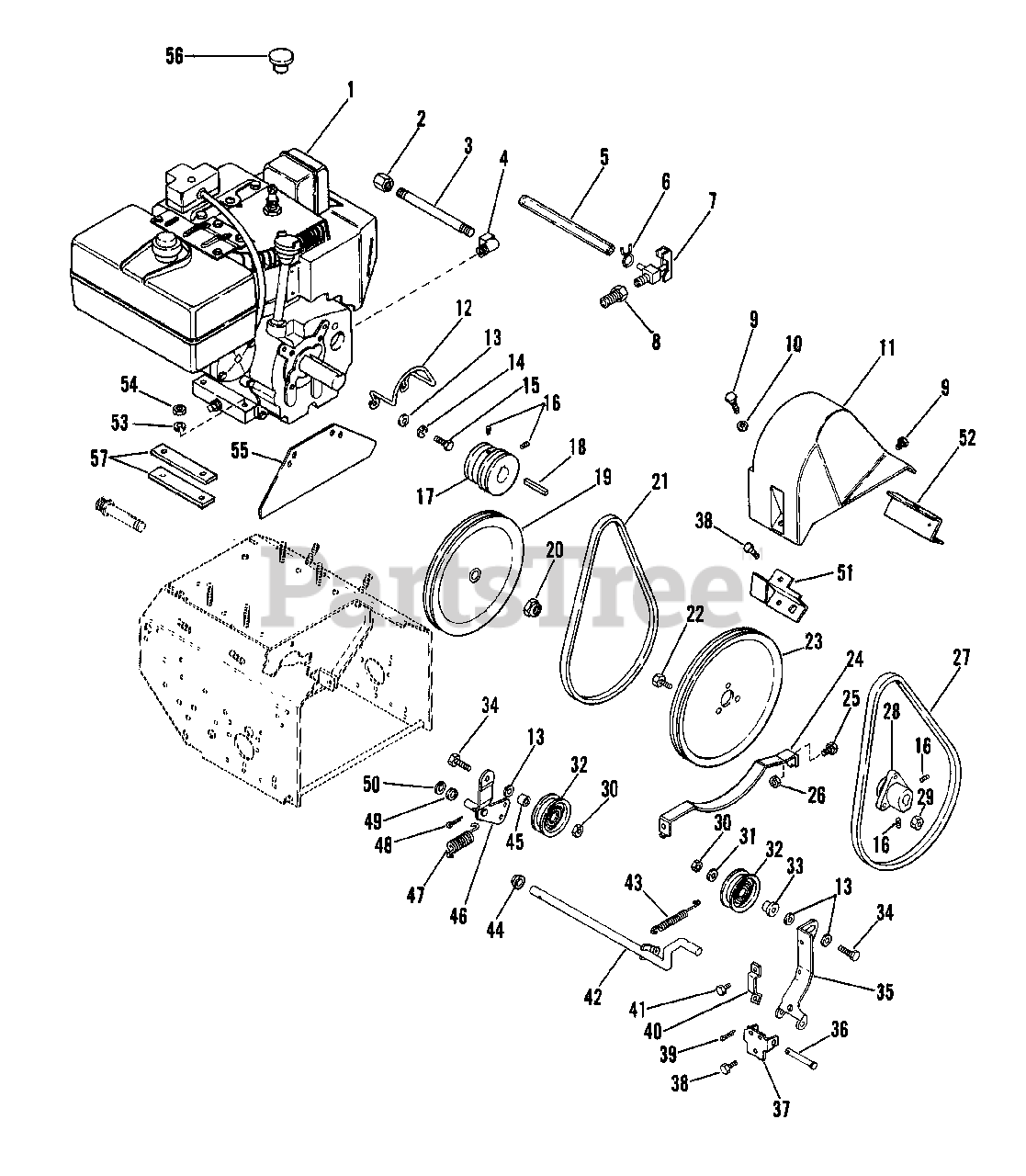

Engine And Belt Drive Parts Diagram

  • Title

1

Ariens 08219600

5.0 HP LAUSON ENGINE

Note: (74) Tecumseh HSK50-65496

$

$

Not available

1

Ariens 08223600

7HP TEC ENGINE

Note: (75) Tecumseh HSK70-130210K

$

$

Not available

1

Ariens 08219700

8.0 HP LAUSON ENGINE

Note: (50,51) Tecumseh HMSK80-155276J & 924050 SN <063957 & 924051 SN <000530

$

$

Not available

1

Ariens 08221400

8.0 HP LAUSON ENGINE

Note: (50,51) Tecumseh HMSKBO-155276K & 924050 SN 064100><085100 &924051 SN 000600><000700

$

$

Not available

1

Ariens 08223300

8HP TEC ENGINE

Note: (50,51,77) Tecumseh HMSK80-155316M & 924050 SN 085101> & 924051 SN 000701> & 924077 SN 000101>

$

$

Not available

1

Ariens 08217300

10 HP TECUMSEH W/LIGHTING COIL

Note: (73) Tecumseh HMSK100-159024J & 924073 SN <007797

$

$

Not available

1

Ariens 08221500

10 HP LAUSON ENGINE

Note: (73) Tecumseh HMSK100-159024K & 924073 SN 007901><012400

$

$

Not available

1

Ariens 08225500

ENGINE-10HP TEC 18 WATT ALTR

Note: (73) Tecumseh HMSK100-159119M & 924073 SN 012401>

$

$

Not available

1

Ariens 08217400

11 HP BRIGGS W/LIGHTING COIL -

Note: (71) Briggs & Stratton 252416-0632-01 & 924071 SN <008200

$

$

Not available

1

Ariens 08223500

11HP B&S ENGINE

Note: (71) Briggs & Stratton 252416-0739-01 & 924071 SN 008201>

$

$

Not available

1

Ariens 08227500

ENGINE-OHSK 120 TEC W/18 WATT

Note: (76) Tecumseh OHSK 120-222001

$

$

Not available

2

Ariens 02520800

HEX CAP

Note: (50,51,73)

$

$

Not available

3

Ariens 01222200

NIPPLE

Note: (50,51,73)

$

$

Not available

4

Ariens 01048500

STREET ELBOW

Note: (50,51,73)

$

$

Not available

5

Ariens 03510100

TUBE

Note: (71)

$

$

Not available

6

Ariens 03019900

HOSE CLAMP

Note: (71)

$

$

Not available

7

Ariens 03510500

DRAIN LOCK

Note: (71)

$

$

Not available

8

Ariens 03507700

BUSHING
(Superseded to 03493100)

Note: (71)

$6.49

$

Usually ships in 4-12 days

0

9

Ariens 07404900

SCR-TAP .25-20X.50 HWHPL
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06406500

WSHR-FL-STL .268X.562X.046 PL
(Superseded to 06437300)

$0.99

$

In Stock, only 3 left!

0

11

Ariens 02440600

BELT COVER

$38.99

$

In Stock, only 1 left!

0

12

Ariens 02425300

BELT FINGER
(Superseded to 52407700)

Note: (50,51,73,74,75)

$38.99

$

Usually ships in 4-12 days

0

12

Ariens 02450500

BELT FINGER

Note: (71)

$

$

Not available

13

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

14

Ariens 06303200

WSHR-LK-EXT .313X.030 PL

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 05905300

BLT-HEX .31-24X.75 PL GR5
(Superseded to 05947300)

$1.99

$

In Stock, only 3 left!

0

16

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$3.49

$

In Stock, only 2 left!

0

17

Ariens 02402100

ENGINE SHEAVE

Note: (75)

$

$

Not available

17

Ariens 02435700

SHEAVE, ENGINE

Note: (50,51,71,73,74,76,77)

$105.99

$

Usually ships in 4-12 days

0

18

Ariens 06601800

KEY-STR .25X1.75X.25

$3.99

$

In Stock, only 1 left!

0

19

Ariens 07304900

PLY-V 8.00 X 1.0 W/KEY CLARK

$

$

Not available

20

Ariens 06507700

NUT-LK-NYL.625-18 PL
(Superseded to 06530300)

$4.99

$

In Stock, Qty 12

0

21

Ariens 07206600

V-BELT, 3L-RAW EDGE

Note: (50,51,73,74,77)

$38.99

$

In Stock, Qty 20+

0

21

Ariens 07209800

BELT,3L 33.00 RAW LAM C-L2089
(Superseded to 07232100)

Note: (75)

$38.99

$

In Stock, Qty 5

0

21

Ariens 07213100

V-BELT, 3L-RAW EDGE

Note: (71,76)

$28.99

$

In Stock, only 2 left!

0

22

Ariens 07006000

BLT-SERRDHD SL .31-18X.87 PL
(Superseded to 07028700)

$6.49

$

In Stock, only 2 left!

0

23

Ariens 07307000

PLY-V 9.0 X 1.25 3BLT

$52.99

$

In Stock, only 2 left!

0

24

Ariens 02423600

BELT RETAINER
(Superseded to 02423651)

Note: (71,73,76,77)

$23.99

$

Usually ships in 4-12 days

0

25

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, only 3 left!

0

26

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 07208600

V-BELT, 4L-RAW EDGE

Note: (50,74)

$30.99

$

In Stock, Qty 10

0

27

Ariens 07210800

V-BELT, 4L-RAW EDGE

Note: (73,75,77)

$47.99

$

In Stock, Qty 14

0

27

Ariens 07213000

V-BELT, 4L-RAW EDGE

Note: (71,76)

$34.99

$

In Stock, only 2 left!

0

28

Ariens 02438900

HUB

$116.99

$

In Stock, only 2 left!

0

29

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

30

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

31

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 02457400

IDLER
(Superseded to 52007000)

$40.99

$

In Stock, only 2 left!

0

33

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.99

$

In Stock, Qty 12

0

34

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.99

$

In Stock, Qty 6

0

35

Ariens 02434800

ARM, IDLER
(Superseded to 02434851)

$52.99

$

Usually ships in 4-12 days

0

36

Ariens 02435400

PIN-CLEV .309X2.25

$3.99

$

Usually ships in 4-12 days

0

37

Ariens 02434700

BRACKET
(Superseded to 02434751)

$40.99

$

Usually ships in 4-12 days

0

38

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

$1.49

$

In Stock, Qty 8

0

39

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

40

Ariens 02435300

RETURN CLIP

$30.99

$

Usually ships in 4-12 days

0

41

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

42

Ariens 02442800

ACTIVATING SHAFT

$69.99

$

Usually ships in 4-12 days

0

43

Ariens 08317200

SG-TENS .047X.44X3.37 WLD 1.47

$15.99

$

In Stock, only 2 left!

0

44

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$3.99

$

In Stock, Qty 11

0

45

Ariens 01103100

SPACER .50 X .32 X .42

$3.99

$

In Stock, only 4 left!

0

46

Ariens 02453700

IDLER ARM
(Superseded to 02453751)

$

$

Not available

47

Ariens 08309400

SG-TENS .080X.73X3.06 WLD 20

$35.99

$

In Stock, only 2 left!

0

48

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

49

Ariens 06405200

WSHR-FL-STL .382X.812X.023 PL
(Superseded to 06436500)

$2.49

$

In Stock, only 2 left!

0

50

Ariens 01026000

WAVE WASHER .406X.750X.063FH

$2.99

$

Usually ships in 4-12 days

0

51

Ariens 02450700

R.H. SUPPORT
(Superseded to 02450751)

$42.99

$

Usually ships in 4-12 days

0

52

Ariens 02450100

L.H. SUPPORT
(Superseded to 02450151)

$37.99

$

Usually ships in 4-12 days

0

53

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 5

0

54

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$1.49

$

In Stock, Qty 9

0

55

Ariens 02459700

PLATE

$28.99

$

Usually ships in 4-12 days

0

56

Ariens 07509700

KNOB W/10-24 TAPPED METAL INSE

Note: (71)

$

$

Not available

57

Ariens 02458700

STRAP

$

$

Not available
