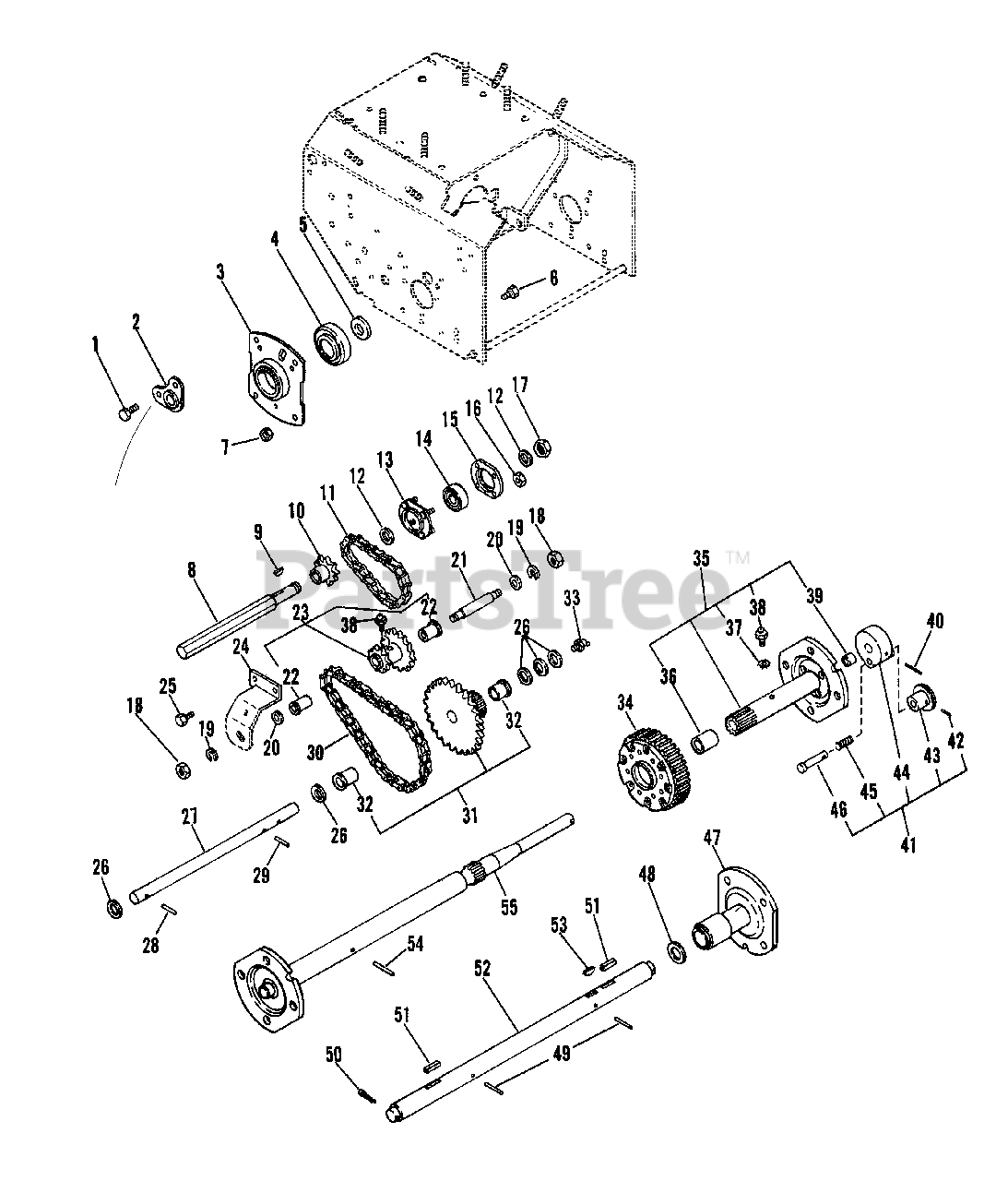

924051 (TT 8) - Ariens Snow Blower, 8hp Tecumseh (SN: 000501 & Above) Reduction Drive Parts Diagram

Snow Blower, 8hp Tecumseh

Reduction Drive Parts Diagram

  • Title

1

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

$1.49

$

In Stock, Qty 8

0

2

Ariens 02407700

SUPPORT, SHAFT

$21.99

$

Usually ships in 4-12 days

0

3

Ariens 01202300

SUPPORT, BEARING

Note: (74,75)

$70.99

$

In Stock, only 2 left!

0

3

Ariens 02436300

BEARING RETAINER

Note: (50,51,71,73) & 924050 SN <085100 & 924051 SN <000700 & 924071 SN <008200 & 924073 SN <012400

$

$

Not available

3

Ariens 02457800

BEARING RETAINER

Note: (50,51,71,73,76,77) & 924050 SN 085101> & 924051 000701> & 924071 SN 008201> & 924073 SN 012401>

$17.99

$

Usually ships in 4-12 days

0

4

Ariens 05413600

BRG-BALL 1.13X2.18X.63
(Superseded to 05417700)

Note: (50,51,71,73) & 924050 SN <085100 & 924051 SN <000700 & 924071 SN <008200 & 924073 SN <012400

$30.99

$

In Stock, only 2 left!

0

4

Ariens 05417700

BRG-BALL 1.13X2.19X.63

Note: (50,51,71,73,76,77) & 924050 SN 085101> & 924051 000701> & 924071 SN 008201> & 924073 SN 012401>

$30.99

$

In Stock, only 2 left!

0

4

Ariens 05503000

BSHG-FLG.875X1X.625X1.250 BR

Note: (74)

$10.99

$

In Stock, Qty 11

0

4

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

Note: (75)

$13.99

$

In Stock, only 2 left!

0

5

Ariens 06403300

WSHR-FL-STL .755X1.375X.125

$3.99

$

In Stock, only 1 left!

0

5

Ariens 06417000

WSHR-FL-STL 1.140X1.718X.134
(Superseded to 06437400)

$

$

Not available

6

Ariens 07001100

SCR-SLTR-SERNK .25-20X.62 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 6

0

6

Ariens 07005800

BLT-SERNK SL .25-20X.50 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 6

0

7

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 02404500

HEX SHAFT

Note: (50,51,71,73,74)

$373.99

$

Usually ships in 4-12 days

0

8

Ariens 02433800

HEX SHAFT

Note: (75)

$

$

Not available

9

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.99

$

In Stock, only 2 left!

0

10

Ariens 01027600

9 TOOTH SPROCKET

$43.99

$

Usually ships in 4-12 days

0

11

Ariens 01207800

CHAIN
(Superseded to 02477700)

Note: (75)

$16.99

$

In Stock, only 2 left!

0

11

Ariens 02407300

IDLER CHAIN

Note: (50,51,71,73,74)

$25.99

$

Usually ships in 4-12 days

0

12

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$1.49

$

In Stock, only 4 left!

0

13

Ariens 00308500

BEARING FLANGE

$23.99

$

In Stock, only 2 left!

0

14

Ariens 05408000

BRG-BALL .500X1.38X.437

$6.99

$

In Stock, Qty 20+

0

15

Ariens 02414100

BEARING FLANGE

$19.99

$

In Stock, only 2 left!

0

16

Ariens 06509400

NUT-LK DUAL FACE 10-24 PL
(Superseded to 06530600)

$0.99

$

In Stock, only 3 left!

0

17

Ariens 06505400

NUT-LK-CTR .50-20 PL
(Superseded to 06530000)

$2.99

$

Usually ships in 4-12 days

0

18

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06301400

WSHR-LK .375X.130
(Superseded to 06306700)

$3.99

$

In Stock, only 1 left!

0

20

Ariens 06409300

WSHR-FL-STL .382X.812X.062
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

21

Ariens 02447500

REDUCTION SHAFT

$

$

Not available

22

Ariens 05504000

BSHG-SLV .500X.625X.500 BR

$13.99

$

In Stock, only 2 left!

0

23

Ariens 52405200

SPROCKET ASSEMBLY

$258.99

$

Usually ships in 4-12 days

0

24

Ariens 02436600

SUPPORT, SHAFT

Note: (50,51,71,73,74,76,77)

$

$

Not available

24

Ariens 02433900

CLUTCH STOP

Note: (75)

$

$

Not available

25

Ariens 07405200

SCR-TAP .250-20X.50 HXSLHDPL
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 12

0

27

Ariens 02436700

PINION SHAFT
(Superseded to 52422500)

$40.99

$

Usually ships in 4-12 days

0

28

Ariens 05802900

PIN-ROLL .156X1.00

$0.99

$

In Stock, Qty 16

0

29

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, only 4 left!

0

30

Ariens 02407400

PINION CHAIN

$31.99

$

Usually ships in 4-12 days

0

31

Ariens 52400200

PINION AND SPROCKET ASSY.

Note: (75)

$105.99

$

Usually ships in 4-12 days

0

31

Ariens 52403200

PINION & SPROCKET ASSEMBLY

Note: (50,51,71,73,74,76,77)

$

$

Not available

32

Ariens 05502600

BSHG-FLG .625X.750X.500X.875BR
(Superseded to 05500111)

$2.49

$

In Stock, Qty 20+

0

33

Ariens 01313600

HYDRAULIC DRIVE FITTING
(Superseded to 07029700)

$12.99

$

Usually ships in 4-12 days

0

34

Ariens 01021100

SPUR GEAR, FELLOWS 35T .750 ID

Note: (75)

$94.99

$

Usually ships in 4-12 days

0

34

Ariens 02439600

GEAR, SPUR

Note: (74)

$87.99

$

In Stock, only 1 left!

0

34

Ariens 52405300

DIFFERENTIAL ASSEMBLY

Note: (50,51,71,73)

$610.99

$

Usually ships in 4-12 days

0

35

Ariens 52405400

L.H. AXLE ASSEMBLY

Note: (71,73,77)

$217.99

$

Usually ships in 4-12 days

0

35

Ariens 52405500

L.H.AXLE ASSEMBLY

Note: (50,51)

$202.99

$

In Stock, only 1 left!

0

36

Ariens 05505700

BSHG-SLV .750X.814X .750 BRZ

$17.99

$

In Stock, only 2 left!

0

37

Ariens 06302500

WSHR-LK .250X.047 LT PL
(Superseded to 06307000)

$2.49

$

Usually ships in 4-12 days

0

38

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

39

Ariens 05502900

BSHG-SLV .562X.625X.625 BRZ

$14.99

$

In Stock, Qty 6

0

40

Ariens 05804200

PIN-GRV .250X1.75 TP C

$15.99

$

In Stock, only 1 left!

0

41

Ariens 52405900

LOCKOUT HUB ASSEMBLY

Note: (50,51,71,73)

$135.99

$

Usually ships in 4-12 days

0

42

Ariens 05803200

PIN-ROLL .093X1.00

$0.99

$

Usually ships in 4-12 days

0

43

Ariens 01037500

KNOB

$54.99

$

Usually ships in 4-12 days

0

44

Ariens 01037200

LOCKOUT HUB

$87.99

$

Usually ships in 4-12 days

0

45

Ariens 08300700

SG-COMP .028X.34X1.062 WLD75

$6.49

$

Usually ships in 4-12 days

0

46

Ariens 01037400

PIN

$17.99

$

Usually ships in 4-12 days

0

47

Ariens 02432300

WHEEL HUB

Note: (75)

$208.99

$

Usually ships in 4-12 days

0

47

Ariens 02439800

WHEEL HUB

Note: (74)

$

$

Not available

48

Ariens 06403300

WSHR-FL-STL .755X1.375X.125

$3.99

$

In Stock, only 1 left!

0

48

Ariens 06403600

WSHR-FL-STL .880X1.380X.062

$7.49

$

Usually ships in 4-12 days

0

49

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 14

0

50

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 12

0

51

Ariens 06601100

KEY-FTHR .188X1.25X.187 SAE

$8.49

$

In Stock, Qty 5

0

52

Ariens 02432200

AXLE SHAFT

Note: (75)

$188.99

$

Usually ships in 4-12 days

0

52

Ariens 02439700

AXLE SHAFT

Note: (74)

$

$

Not available

53

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

$3.99

$

In Stock, only 1 left!

0

53

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$3.49

$

In Stock, Qty 19

0

54

Ariens 05803000

PIN-ROLL .188X1.50

$1.49

$

In Stock, only 2 left!

0

55

Ariens 02437100

R H AXLE
(Superseded to 02475700)

Note: (71,73)

$363.99

$

Usually ships in 4-12 days

0

55

Ariens 02440900

R H AXLE
(Superseded to 02475800)

Note: (50,51)

$345.99

$

In Stock, only 1 left!
