924054 (ST 832) - Ariens 32" Snow Blower, 8hp Tecumseh (SN: 000101 & Above) Tractor Parts (Continued) Parts Diagram

32" Snow Blower, 8hp Tecumseh

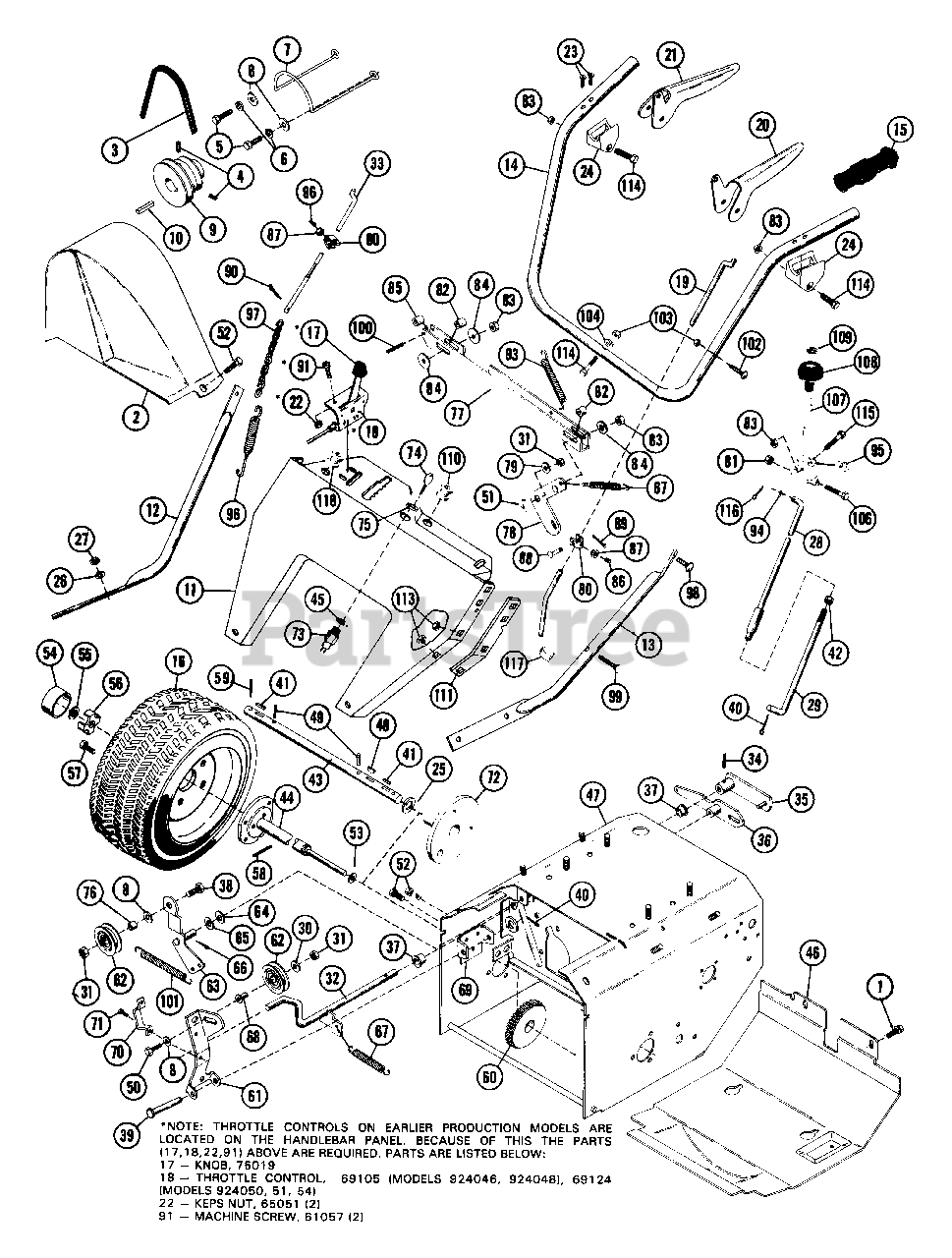

Tractor Parts (Continued) Parts Diagram

  • Title

1

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

2

Ariens 02440600

BELT COVER

$38.99

$

In Stock, only 1 left!

0

3

Ariens 07209800

BELT,3L 33.00 RAW LAM C-L2089
(Superseded to 07232100)

Note: (Used Only On Model(s): 924046,48,924049).

$38.99

$

In Stock, Qty 5

0

3

Ariens 07206600

V-BELT, 3L-RAW EDGE

Note: (Used Only On Model(s): 924050,51,924054).

$38.99

$

In Stock, Qty 20+

0

4

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$3.49

$

In Stock, only 2 left!

0

5

Ariens 06905300

TIE DOWN
(Superseded to 07517300)

$

$

Not available

6

Ariens 06303200

WSHR-LK-EXT .313X.030 PL

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 02425300

BELT FINGER
(Superseded to 52407700)

$38.99

$

Usually ships in 4-12 days

0

8

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

9

Ariens 02402100

ENGINE SHEAVE

Note: (Used Only On Model(s): 924046,924048,49).

$

$

Not available

9

Ariens 02435700

SHEAVE, ENGINE

Note: (Used Only On Model(s): 924050,51,924054).

$105.99

$

Usually ships in 4-12 days

0

10

Ariens 06601800

KEY-STR .25X1.75X.25

$3.99

$

In Stock, only 1 left!

0

11

Ariens 02443500

HANDLEBAR PANEL

$

$

Not available

12

Ariens 02444700

LOWER HANDLEBAR RH

$

$

Not available

13

Ariens 02444600

LOWER HANDLEBAR LH
(Superseded to 02444651)

$247.99

$

Usually ships in 4-12 days

0

14

Ariens 02443200

UPPER HANDLEBAR SW

Note: (Used Only On Model(s): 924046,924048,49).

$

$

Not available

14

Ariens 02443100

UPPER HANDLEBAR LW

Note: (Used Only On Model(s): 924050,51,924054).

$

$

Not available

15

Ariens 07500600

GRIP
(Superseded to 07500113)

$

$

Not available

16

Ariens 61096000

TIRE & WHEEL ASSEMBLY CARLISLE
(Superseded to 07116500)

Note: (Used Only On Model(s): 924046,924048,49).

$

$

Not available

16

Ariens 07104600

TIRE 4.10/3.50X6

Note: (Used Only On Model(s): 924046,924048,49).

$

$

Not available

16

Ariens 07105000

TUBE

Note: (Used Only On Model(s): 924046,924048,49).

$12.99

$

In Stock, only 2 left!

0

16

Ariens 07105200

WHL 6 IN O.D.
(Superseded to 07103800)

Note: (Used Only On Model(s): 924046,924048,49).

$

$

Not available

16

Ariens 60300200

WHEEL ASSEMBLY
(Superseded to 07100017)

Note: (Used Only On Model(s): 924050,51).

$139.99

$

Usually ships in 4-12 days

0

16

Ariens 07108200

TIRE
(Superseded to 07100017)

Note: (Used Only On Model(s): 924050,51).

$139.99

$

Usually ships in 4-12 days

0

16

Ariens 07103700

TUBE

Note: (Used Only On Model(s): 924050,51).

$15.99

$

In Stock, only 2 left!

0

16

Ariens 07107700

WHL

Note: (Used Only On Model(s): 924050,51).

$83.99

$

Usually ships in 4-12 days

0

16

Ariens 60394800

TERRA TIRE & WHEEL ASSEMBLY
(Superseded to 07115200)

Note: (Used Only On Model(s): 924054).

$

$

Not available

16

Ariens 07102100

TIRE 16X6.50-8 2 PLY

Note: (Used Only On Model(s): 924054).

$87.99

$

Usually ships in 4-12 days

0

16

Ariens 07108700

TUBE

Note: (Used Only On Model(s): 924054).

$36.99

$

Usually ships in 4-12 days

0

16

Ariens 07107700

WHL

Note: (Used Only On Model(s): 924054).

$83.99

$

Usually ships in 4-12 days

0

19

Ariens 02444400

CLUTCH ROD

Note: (Used Only On Model(s): 924046,924048,49).

$

$

Not available

19

Ariens 02443300

CLUTCH ROD

Note: (Used Only On Model(s): 924050,51,924054).

$

$

Not available

20

Ariens 53200700

TRACTION CLUTCH HANDLE WITH DE

$59.99

$

Usually ships in 4-12 days

0

21

Ariens 53200800

ATTACHMENT CLUTCH HANDLE

$60.99

$

Usually ships in 4-12 days

0

23

Ariens 07403900

SCR-TAP 12-14X1.50 CROVH PL BT
(Superseded to 07411800)

$

$

Not available

24

Ariens 02212900

HANDLE PIVOT

$22.99

$

Usually ships in 4-12 days

0

25

Ariens 06403300

WSHR-FL-STL .755X1.375X.125

Note: (Used Only On Model(s): 924046).

$3.99

$

In Stock, only 1 left!

0

26

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$4.99

$

In Stock, Qty 17

0

27

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 02444200

UPPER SHIFT ROD

$269.99

$

Usually ships in 4-12 days

0

29

Ariens 02444100

LOWER SHIFT ROD

$122.99

$

Usually ships in 4-12 days

0

30

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

32

Ariens 02442800

ACTIVATING SHAFT

$69.99

$

Usually ships in 4-12 days

0

33

Ariens 02445600

ATTACH CLUTCH ROD

$18.99

$

Usually ships in 4-12 days

0

34

Ariens 05802600

PIN-ROLL .156X.88

$2.49

$

In Stock, Qty 5

0

35

Ariens 03201000

LEVER CLUTCH

$79.99

$

Usually ships in 4-12 days

0

36

Ariens 02442900

LEVER

$

$

Not available

37

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$3.99

$

In Stock, Qty 11

0

38

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.99

$

In Stock, only 4 left!

0

39

Ariens 02435400

PIN-CLEV .309X2.25

$3.99

$

Usually ships in 4-12 days

0

40

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

41

Ariens 06601100

KEY-FTHR .188X1.25X.187 SAE

Note: (Used Only On Model(s): 924046).

$8.49

$

In Stock, Qty 5

0

42

Ariens 06503100

NUT-HEX .312-24 PL
(Superseded to 06529500)

$2.49

$

Usually ships in 4-12 days

0

43

Ariens 02432200

AXLE SHAFT

Note: (Used Only On Model(s): 924046).

$188.99

$

Usually ships in 4-12 days

0

44

Ariens 01037000

R H AXLE SHAFT

Note: (Used Only On Model(s): 924048,49).

$124.99

$

In Stock, only 1 left!

0

44

Ariens 02437100

R H AXLE
(Superseded to 02475700)

Note: (Used Only On Model(s): 924054).

$363.99

$

Usually ships in 4-12 days

0

44

Ariens 02440900

R H AXLE
(Superseded to 02475800)

Note: (Used Only On Model(s): 924050,51).

$345.99

$

In Stock, only 1 left!

0

45

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$4.99

$

Usually ships in 4-12 days

0

46

Ariens 02443000

BOTTOM COVER
(Superseded to 02443059)

$92.99

$

Usually ships in 4-12 days

0

47

Ariens 02443700

FRAME
(Superseded to 02458800)

Note: (Used Only On Model(s): 924050,51,924054).

$

$

Not available

47

Ariens 02443600

FRAME

Note: (Used Only On Model(s): 924046,924048,49).

$

$

Not available

48

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

Note: (Used Only On Model(s): 924046).

$3.49

$

In Stock, Qty 19

0

49

Ariens 05800300

PIN-ROLL .188X1.25

Note: (Used Only On Model(s): 924046).

$0.99

$

In Stock, Qty 14

0

50

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.99

$

In Stock, Qty 6

0

51

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

$6.49

$

Usually ships in 4-12 days

0

52

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.99

$

Usually ships in 4-12 days

0

53

Ariens 06403600

WSHR-FL-STL .880X1.380X.062

Note: (Used Only On Model(s): 924048,49).

$7.49

$

Usually ships in 4-12 days

0

53

Ariens 06417600

WSHR-FL-STL .505X.750X.015
(Superseded to 06417700)

Note: (Used Only On Model(s): 924050,51,924054).

$

$

Not available

54

Ariens 00337700

HUB CAP

Note: (Used Only On Model(s): 924046).

$2.99

$

In Stock, Qty 20+

0

54

Ariens 00337700

HUB CAP

Note: (Used Only On Model(s): 924048,49,924050,51,924054).

$2.99

$

In Stock, Qty 20+

0

55

Ariens 01036600

PUSHNUT

Note: (Used Only On Model(s): 924048,49,924050,51,924054).

$6.49

$

Usually ships in 4-12 days

0

56

Ariens 00337600

SPINDLE CUP
(Superseded to 01238200)

Note: (Used Only On Model(s): 924046).

$15.99

$

Usually ships in 4-12 days

0

56

Ariens 00337600

SPINDLE CUP
(Superseded to 01238200)

Note: (Used Only On Model(s): 924048,49,924050,51,924054).

$15.99

$

Usually ships in 4-12 days

0

57

Ariens 07003200

BLT-WHL .50-20X.75 GR5 PL
(Superseded to 07416900)

Note: (Used Only On Model(s): 924046,924048,49).

$14.99

$

In Stock, only 3 left!

0

57

Ariens 07003200

BLT-WHL .50-20X.75 GR5 PL
(Superseded to 07416900)

Note: (Used Only On Model(s): 924050,51,924054).

$14.99

$

In Stock, only 3 left!

0

58

Ariens 05800300

PIN-ROLL .188X1.25

Note: (Used Only On Model(s): 924048,49).

$0.99

$

In Stock, Qty 14

0

58

Ariens 05803000

PIN-ROLL .188X1.50

Note: (Used Only On Model(s): 924050,51,924054).

$1.49

$

In Stock, only 2 left!

0

59

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

Note: (Used Only On Model(s): 924046).

$0.99

$

In Stock, Qty 12

0

60

Ariens 61299900

DIFFERENTIAL ASSEMBLY
(Superseded to 51202000)

Note: (Used Only On Model(s): 924048,49).

$

$

Not available

60

Ariens 62407300

DIFFERENTIAL ASSEMBLY
(Superseded to 52405300)

Note: (Used Only On Model(s): 924050,51,924054).

$610.99

$

Usually ships in 4-12 days

0

60

Ariens 01021100

SPUR GEAR, FELLOWS 35T .750 ID

Note: (Used Only On Model(s): 924046).

$94.99

$

Usually ships in 4-12 days

0

61

Ariens 02434800

ARM, IDLER
(Superseded to 02434851)

$52.99

$

Usually ships in 4-12 days

0

62

Ariens 01213200

IDLER
(Superseded to 52007000)

$40.99

$

In Stock, only 2 left!

0

63

Ariens 02422200

IDLER ARM
(Superseded to 02453751)

$

$

Not available

64

Ariens 06405200

WSHR-FL-STL .382X.812X.023 PL
(Superseded to 06436500)

$2.49

$

In Stock, only 2 left!

0

65

Ariens 01026000

WAVE WASHER .406X.750X.063FH

$2.99

$

Usually ships in 4-12 days

0

66

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

67

Ariens 08318700

SG-TENS .062X.43X5.75 WLD 20

$21.99

$

In Stock, only 1 left!

0

68

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.99

$

In Stock, Qty 12

0

69

Ariens 02434700

BRACKET
(Superseded to 02434751)

$40.99

$

Usually ships in 4-12 days

0

70

Ariens 02435300

RETURN CLIP

$30.99

$

Usually ships in 4-12 days

0

71

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

72

Ariens 02432300

WHEEL HUB

Note: (Used Only On Model(s): 924046).

$208.99

$

Usually ships in 4-12 days

0

73

Ariens 62409700

SWITCH & KEY SET ASSEMBLY
(Superseded to 52406900)

$39.99

$

In Stock, only 2 left!

0

74

Ariens 01315700

KEYS
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

75

Ariens 06507500

NUT .625-32 ALUM
(Superseded to 06517300)

$9.49

$

Usually ships in 4-12 days

0

76

Ariens 01103100

SPACER .50 X .32 X .42

$3.99

$

In Stock, only 4 left!

0

77

Ariens 02445900

SLIDER

$

$

Not available

78

Ariens 02446000

BELLCRANK

$

$

Not available

79

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

$3.99

$

Usually ships in 4-12 days

0

80

Ariens 02445700

CLEVIS

$9.99

$

Usually ships in 4-12 days

0

81

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

82

Ariens 05513200

BSHG-SLV .250X.375X.640

$

$

Not available

83

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

84

Ariens 06403700

WSHR-FL-STL .281X1.250X.048PL

$1.99

$

Usually ships in 4-12 days

0

85

Ariens 05513100

BSHG-SLV .188X.500X.480

$

$

Not available

86

Ariens 06003600

SCR-SET .25-20X.75 SKHCUP OH

$2.49

$

Usually ships in 4-12 days

0

87

Ariens 06509900

NUT-HEX JAM .25-20 YWZC
(Superseded to 06500908)

$1.49

$

Usually ships in 4-12 days

0

88

Ariens 02445800

CLEVIS PIN

$

$

Not available

89

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 5

0

90

Ariens 06701800

PIN-COTR .12X.50 PL
(Superseded to 06711800)

$

$

Not available

93

Ariens 08314900

SG-TENS .035X.45X2.75 WLD 3.5

$14.99

$

In Stock, only 3 left!

0

94

Ariens 02444300

PIVOT

$

$

Not available

95

Ariens 08313400

SG-TENS .125X.50X1.38

$

$

Not available

96

Ariens 08318300

SG-TENS .091X.56X6.12 WLD 40

$

$

Not available

97

Ariens 00227000

CLUTCH CHAIN

$21.99

$

In Stock, only 2 left!

0

98

Ariens 06206700

BLT-RDHDSQNK .31-18X.75 PL BL
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

99

Ariens 06206200

BLT-RDHDSQNK .31-18X1.50 PL BL

$

$

Not available

100

Ariens 05800500

PIN-ROLL .188X.88

$2.49

$

In Stock, only 3 left!

0

101

Ariens 08309400

SG-TENS .080X.73X3.06 WLD 20

$35.99

$

In Stock, only 2 left!

0

102

Ariens 06206000

BLT-RDHDSQNK .25-20X1.50 PL BL

$1.99

$

Usually ships in 4-12 days

0

103

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.49

$

In Stock, Qty 20+

0

104

Ariens 06409400

WSHR-FL-STL .265X.500X.087 PL
(Superseded to 06439500)

$1.49

$

Usually ships in 4-12 days

0

106

Ariens 05913100

BLT-HEX .31-18X2.50 PL GR2
(Superseded to 05952600)

$1.99

$

In Stock, Qty 20+

0

107

Ariens 02444800

ROD
(Superseded to 02444851)

$85.99

$

Usually ships in 4-12 days

0

108

Ariens 07509600

KNOB

$

$

Not available

109

Ariens 05708600

RG-RTNG-EXT .500X.015

$2.99

$

In Stock, Qty 11

0

110

Ariens 07509500

SNAP BUSHING

$1.99

$

Usually ships in 4-12 days

0

111

Ariens 02446700

L H STIFFENER

$

$

Not available

111

Ariens 02446700

L H STIFFENER

$

$

Not available

113

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

114

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

$1.99

$

In Stock, only 4 left!

0

115

Ariens 05913200

BLT-HEX .25-20X1.00 GR2
(Superseded to 05947700)

$1.99

$

In Stock, Qty 8

0

116

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

117

Ariens 06901200

CLAMP

$5.49

$

In Stock, only 1 left!

0

118

Ariens 07505000

SNAP BUSHING-.437

$

$

Not available
