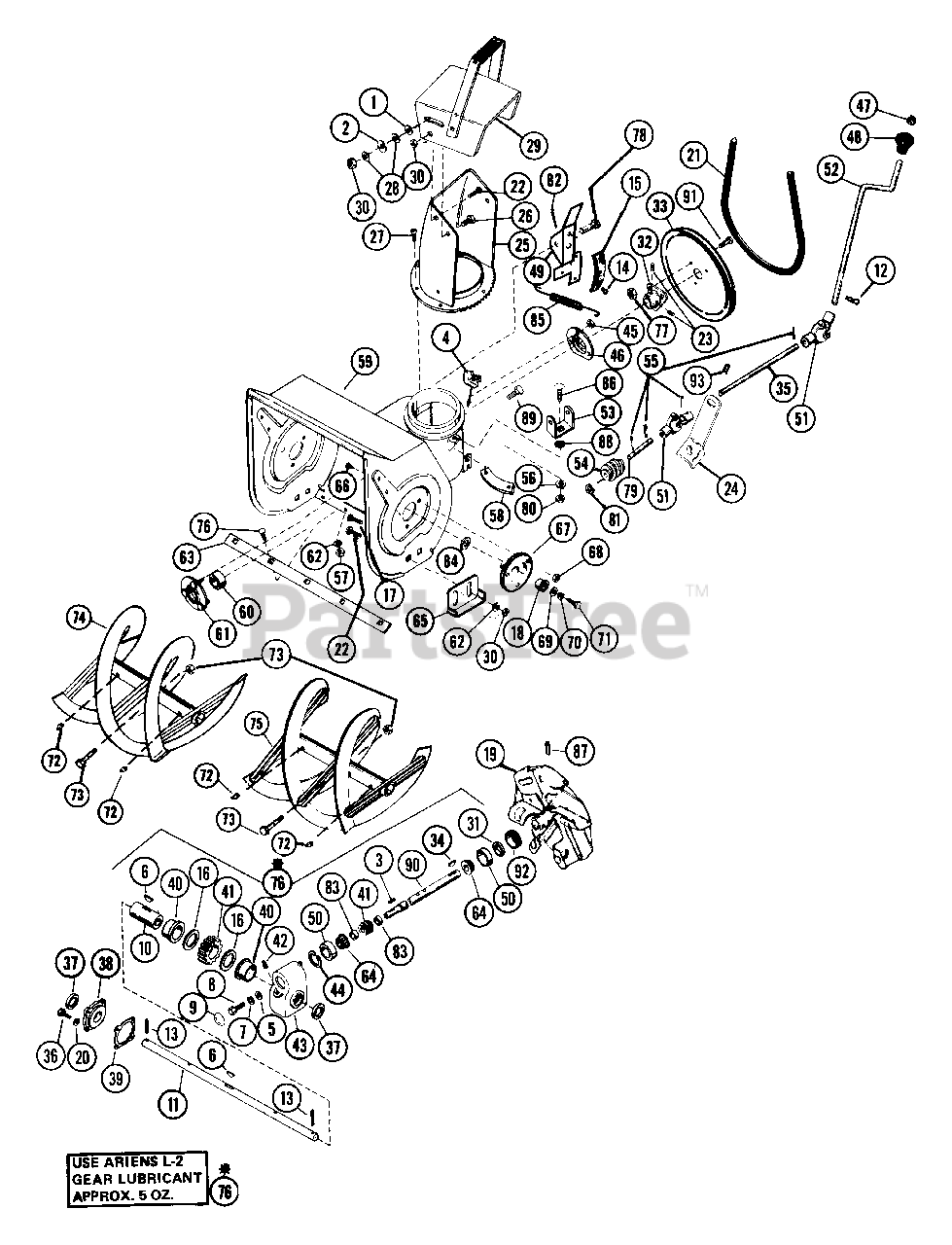

924056 (ST 1032) - Ariens 32" Snow Blower, 10hp Tecumseh (SN: 000101 & Above)

32" Snow Blower, 10hp Tecumseh

924056 (ST 1032) - Ariens 32" Snow Blower, 10hp Tecumseh (SN: 000101 & Above) > Parts Diagrams (3) > Sno-Thro 32"

  • Title
06416800

1

WSHR-PLASTIC .390X.875X.062

Part# 06416800 (Superseded to 06433600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01320200

2

WAVE WASHER .390X.655X.110

Part# 01320200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06601300

3

KEY-SQ .188X1.0X.188 SAE 8630

Part# 06601300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

07002600

4

NUT-RETNR .38-16 TINRMAN

Part# 07002600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06408200

5

WSHR-FL-STL .328X1.0X.094

Part# 06408200 (Superseded to 06437500)

OEM Warranty Repair Part for Ariens

Not available

06600800

6

KEY-WDRF .25X.875X.375 SAE A

Part# 06600800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06300300

7

WSHR-LK .312X.097 PL HVY

Part# 06300300 (Superseded to 06307400)

OEM Warranty Repair Part for Ariens

Not available

05902200

8

BLT-HEX .31-18X.75 PL GR2

Part# 05902200 (Superseded to 05947000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

00403700

9

DUST CAP

Part# 00403700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

02406400

10

GEAR CASE SHAFT

Part# 02406400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $115.10

02406500

11

SHAFT, 32" RAKE - 1.00 DIA.

Part# 02406500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $172.12

06701000

12

PIN-HAIR INT .08X.38X1.42 YWZC

Part# 06701000

OEM Warranty Repair Part for Ariens

Not available

05803000

13

PIN-ROLL .188X1.50

Part# 05803000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06806200

14

RVT-TBLR .187X.375 OH ST PL

Part# 06806200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

02217800

15

BRAKE LINING

Part# 02217800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

06408700

16

WSHR-FL-STL 1.625X2.500X.012

Part# 06408700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

06201300

17

BLT-RDHDSQSHNK .38-16X1.00 PL

Part# 06201300 (Superseded to 06212000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05503500

18

BSHG-FLG 1.000X1.12X.62X1.50BR

Part# 05503500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

02437600

19

FAN - 14"

Part# 02437600 (Superseded to 02437651)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $239.45

06301700

20

WSHR-LK-EXT. 250 ID

Part# 06301700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

07213000

21

V-BELT, 4L-RAW EDGE

Part# 07213000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $24.54

06201000

22

BLT-RDHDSQNK .38-16X.75 SHT PL

Part# 06201000 (Superseded to 06200004)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.98

06001200

23

SCR-SET .32-18X.38 SKHCUPNL OH

Part# 06001200 (Superseded to 06005500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

02450300

24

CHUTE CRANK BRACKET

Part# 02450300

OEM Warranty Repair Part for Ariens

Not available

02440300

25

DISCHARGE CHUTE

Part# 02440300 (Superseded to 52408500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $159.82

05902300

26

BLT-HEX .38-16X.75 PL GR2

Part# 05902300 (Superseded to 05959400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

07405400

27

SCR-TAP 10-24X.375 HWH PL TR

Part# 07405400 (Superseded to 07412100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06404300

28

WSHR-FL-STL.406X.812X.065PL

Part# 06404300 (Superseded to 06436200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

28

.062

Part#

Not available

52404200

29

DEFLECTOR W/ DECAL

Part# 52404200 (Superseded to 52406100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $122.92

06503900

30

NUT-LK-CTR .375-16 GR A PL

Part# 06503900 (Superseded to 06529600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05606100

31

SEAL 1.000X1.312X.150

Part# 05606100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

02438900

32

HUB

Part# 02438900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $100.56

07307000

33

PLY-V 9.0 X 1.25 3BLT

Part# 07307000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $33.48

06600100

34

KEY-WDRF .188X.875X.375 SAE11

Part# 06600100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

02450400

35

ROD

Part# 02450400

OEM Warranty Repair Part for Ariens

Not available

05900100

36

BLT-HEX .25-20X.75 PL GR2

Part# 05900100 (Superseded to 05946800)

OEM Warranty Repair Part for Ariens

Not available

05607000

37

SEAL 1.625X2.125X.250

Part# 05607000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

02401300

38

GEAR CASE COVER

Part# 02401300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $121.81

00200800

39

GASKET

Part# 00200800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05505900

40

BSHG-FLG .683X1.87X1.68X2.250

Part# 05505900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

52400900

41

WORM & GEAR SERVICE ASSEMBLY

Part# 52400900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $145.28

00113800

42

PIPE PLUG

Part# 00113800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

02400200

43

GEAR CASE - CAST IRON

Part# 02400200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $307.39

05707500

44

RG-RTNG-INT 1.781X.062

Part# 05707500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

06504000

45

NUT-LK-CTR .250-20 PL

Part# 06504000 (Superseded to 06529700)

OEM Warranty Repair Part for Ariens

Not available

03185900

46

BEARING FLANGE

Part# 03185900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $18.39

01019800

47

CAP, 3/8 ROD YWZC

Part# 01019800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

07508300

48

KNOB

Part# 07508300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

62403500

49

BRAKE ARM ASSEMBLY

Part# 62403500 (Superseded to 52404800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $24.54

05404400

50

BRG-CUP 1.781X.475

Part# 05404400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

62406500

51

UNIVERSAL JOINT ASSY

Part# 62406500 (Superseded to 02470400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $97.27

02450800

52

CHUTE CONTROL CRANK

Part# 02450800

OEM Warranty Repair Part for Ariens

Not available

02212300

53

WORM CLEVIS

Part# 02212300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

02442700

54

WORM GEAR L. H.

Part# 02442700

OEM Warranty Repair Part for Ariens

Not available

05803400

55

PIN-ROLL .125X.75

Part# 05803400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06302300

56

WSHR-LK .313X.062

Part# 06302300 (Superseded to 06310600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06504200

57

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01043800

58

CHUTE CLAMP

Part# 01043800 (Superseded to 52409200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.89

52403800

59

BLOWER HOUSING W/DECALS 32

Part# 52403800 (Superseded to 52409700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $439.05

05405200

60

BRG-BALL 1.0X2.0X.56

Part# 05405200 (Superseded to 05416000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $27.89

03186000

61

BEARING FLANGE

Part# 03186000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $37.12

06400200

62

WSHR-FL-STL .38X.875X.083 PL

Part# 06400200 (Superseded to 06435700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02437300

63

SCRAPER BLADE 32"

Part# 02437300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $44.66

05404500

64

BRG-CONE .750X.61

Part# 05404500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

02922500

65

SKID SHOE

Part# 02922500 (Superseded to 03075559)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $33.48

07005800

66

BLT-SERNK SL .25-20X.50 PL

Part# 07005800 (Superseded to 07028600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

02437400

67

BEARING SUPPORT

Part# 02437400

OEM Warranty Repair Part for Ariens

Not available

06505600

68

NUT-LK-FLG .250-20 PL

Part# 06505600 (Superseded to 06530100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06404700

69

WSHR-FL-STL .511X1.441X.125 PL

Part# 06404700 (Superseded to 06436400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06300600

70

WSHR-LK .500X.151 HVY PL

Part# 06300600 (Superseded to 06306600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05902400

71

BLT-HEX .50-13X1.00 PL GR2

Part# 05902400 (Superseded to 05947100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

02209300

72

SPIN DRIVE ZERK FITTING

Part# 02209300 (Superseded to 07012600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

51001500

73

SHEAR BOLT SERVICE ASSEMBLY

Part# 51001500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.25

52401300

74

RAKE, RIGHT-32"(1ID X 15.75OD)

Part# 52401300 (Superseded to 52412300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $332.60

52401400

75

RAKE, LEFT-32"(1"ID X 15.75OD)

Part# 52401400 (Superseded to 52412200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $332.60

52403500

76

GEAR CASE - CAST IRON

Part# 52403500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $878.16

06507800

77

NUT-FLG. .312-18 PL

Part# 06507800 (Superseded to 06530400)

OEM Warranty Repair Part for Ariens

Not available

02434500

78

CLEVIS PIN

Part# 02434500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

01049400

79

WORM SHAFT

Part# 01049400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $29.68

06501500

80

NUT-HEX .312-18

Part# 06501500 (Superseded to 06529200)

OEM Warranty Repair Part for Ariens

Not available

01026000

81

WAVE WASHER .406X.750X.063FH

Part# 01026000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

06701900

82

PIN-HAIR INT .06X.18X.77

Part# 06701900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

00200500

83

BSHG, SPCR .755X1.12X.50 PM

Part# 00200500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.65

06404600

84

WSHR-FL-STL 1.010X1.505X.062PL

Part# 06404600

OEM Warranty Repair Part for Ariens

Not available

08316400

85

SG-TENS .062X.56X8.0 WLD 11

Part# 08316400 (Superseded to 08300538)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

06201100

86

BLT-RDHDSQNK .31-18X.75 GR5 PL

Part# 06201100 (Superseded to 06200232)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05801500

87

PIN-ROLL .313X1.75

Part# 05801500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06303500

88

WSHR-LK-EXT .375X.035 PL

Part# 06303500 (Superseded to 06308700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

07003100

89

BLT-SCRHFWH .38-16X.75 PL

Part# 07003100 (Superseded to 07028500)

OEM Warranty Repair Part for Ariens

Not available

02437500

90

SHAFT, WORM - 1.00 DIA.

Part# 02437500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $159.82

07006000

91

BLT-SERRDHD SL .31-18X.87 PL

Part# 07006000 (Superseded to 07028700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

02401500

92

ADJUSTMENT PLUG - 1" SHAFT

Part# 02401500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $72.50

06701000

93

PIN-HAIR INT .08X.38X1.42 YWZC

Part# 06701000

OEM Warranty Repair Part for Ariens

Not available
