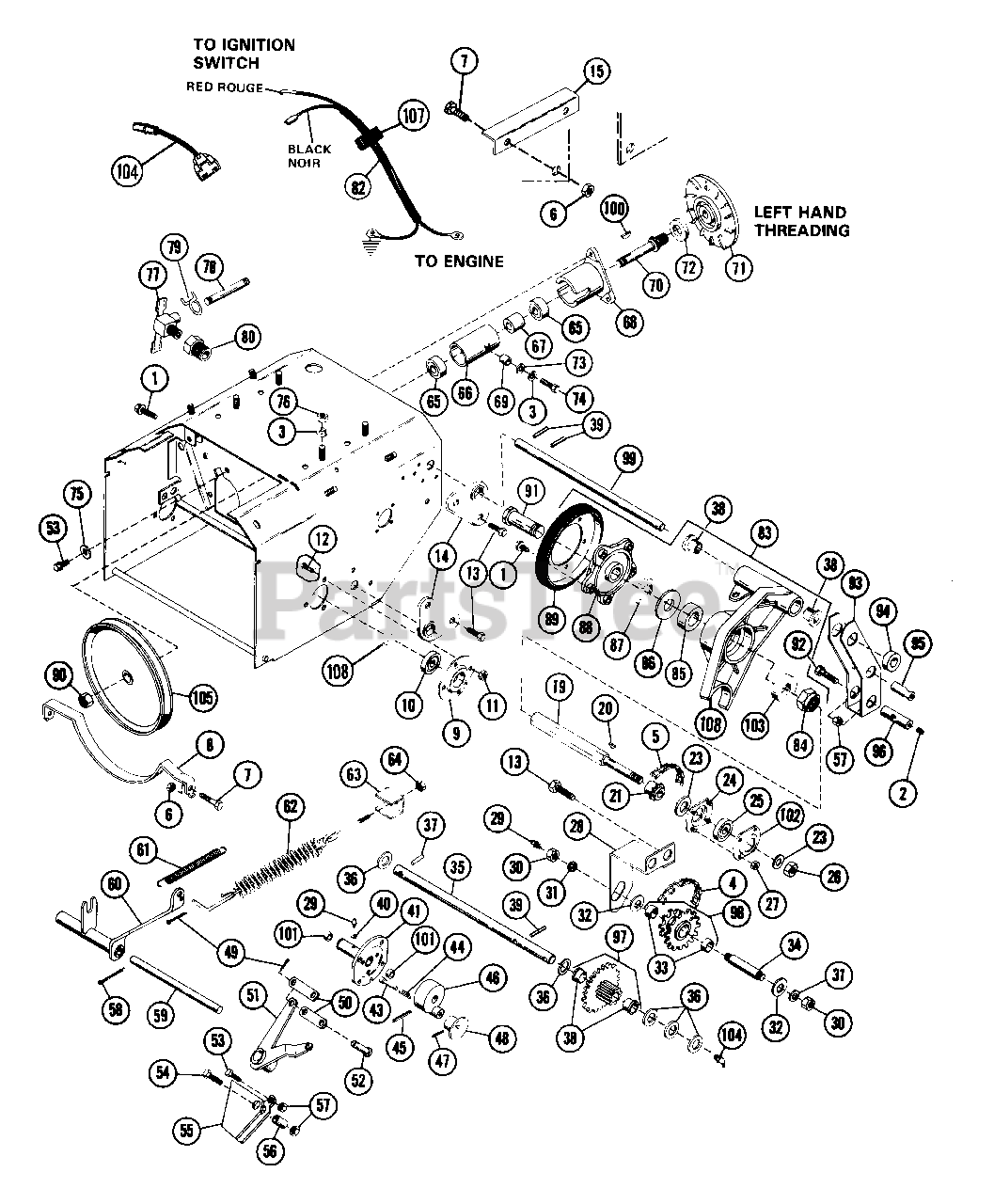

924056 (ST 1032) - Ariens 32" Snow Blower, 10hp Tecumseh (SN: 000101 & Above)

32" Snow Blower, 10hp Tecumseh

924056 (ST 1032) - Ariens 32" Snow Blower, 10hp Tecumseh (SN: 000101 & Above) > Parts Diagrams (3) > Tractor Parts

  • Title
07000900

1

BLT-SERHFWH .31-18X.50 PL

Part# 07000900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

06001200

2

SCR-SET .32-18X.38 SKHCUPNL OH

Part# 06001200 (Superseded to 06005500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06300300

3

WSHR-LK .312X.097 PL HVY

Part# 06300300 (Superseded to 06307400)

OEM Warranty Repair Part for Ariens

Not available

02407400

4

PINION CHAIN

Part# 02407400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $24.54

02407300

5

IDLER CHAIN

Part# 02407300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

06504000

6

NUT-LK-CTR .250-20 PL

Part# 06504000 (Superseded to 06529700)

OEM Warranty Repair Part for Ariens

Not available

05902800

7

BLT-HEX .25-20X.50 PL GR2

Part# 05902800 (Superseded to 05947900)

OEM Warranty Repair Part for Ariens

Not available

02423600

8

BELT RETAINER

Part# 02423600 (Superseded to 02423651)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.81

02436300

9

BEARING RETAINER

Part# 02436300

OEM Warranty Repair Part for Ariens

Not available

05413600

10

BRG-BALL 1.13X2.18X.63

Part# 05413600 (Superseded to 05417700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $25.66

06505600

11

NUT-LK-FLG .250-20 PL

Part# 06505600 (Superseded to 06530100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07005800

12

BLT-SERNK SL .25-20X.50 PL

Part# 07005800 (Superseded to 07028600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

07001500

13

BLT-SERHFWH .25-20X.50 PL

Part# 07001500 (Superseded to 07049300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

02407700

14

SUPPORT, SHAFT

Part# 02407700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.39

02448800

15

BRACE

Part# 02448800

OEM Warranty Repair Part for Ariens

Not available

02444500

16

CARRIER

Part# 02444500 (Superseded to 52404600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $190.56

07510700

17

WIRE CLIP

Part# 07510700

OEM Warranty Repair Part for Ariens

Not available

07304900

18

PLY-V 8.00 X 1.0 W/KEY CLARK

Part# 07304900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $78.20

02404500

19

HEX SHAFT

Part# 02404500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $55.29

06601500

20

KEY-WDRF .125X.625X.250 SAE5

Part# 06601500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01027600

21

9 TOOTH SPROCKET

Part# 01027600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $42.99

01313600

22

HYDRAULIC DRIVE FITTING

Part# 01313600 (Superseded to 07029700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

06405800

23

WSHR-FL-STL .505X1.000X.062

Part# 06405800 (Superseded to 06439200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00308500

24

BEARING FLANGE

Part# 00308500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $18.39

05408000

25

BRG-BALL .500X1.38X.437

Part# 05408000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

06505400

26

NUT-LK-CTR .50-20 PL

Part# 06505400 (Superseded to 06530000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06509400

27

NUT-LK DUAL FACE 10-24 PL

Part# 06509400 (Superseded to 06530600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02436600

28

SUPPORT, SHAFT

Part# 02436600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.81

02433900

28

CLUTCH STOP

Part# 02433900

OEM Warranty Repair Part for Ariens

Not available

02209300

29

SPIN DRIVE ZERK FITTING

Part# 02209300 (Superseded to 07012600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06501800

30

NUT-HEX .375-16

Part# 06501800 (Superseded to 06529400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06301400

31

WSHR-LK .375X.130

Part# 06301400 (Superseded to 06306700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06409300

32

WSHR-FL-STL .382X.812X.062

Part# 06409300 (Superseded to 06435700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05504000

33

BSHG-SLV .500X.625X.500 BR

Part# 05504000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

02436400

34

REDUCTION SHAFT

Part# 02436400

OEM Warranty Repair Part for Ariens

Not available

02436700

35

PINION SHAFT

Part# 02436700 (Superseded to 52422500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $37.12

06403900

36

WSHR-FL-STL .630X1.005X.062 PL

Part# 06403900 (Superseded to 06436100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05800900

37

PIN-ROLL .125X1.00

Part# 05800900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05502600

38

BSHG-FLG .625X.750X.500X.875BR

Part# 05502600 (Superseded to 05500111)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05802900

39

PIN-ROLL .156X1.00

Part# 05802900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06302500

40

WSHR-LK .250X.047 LT PL

Part# 06302500 (Superseded to 06307000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

62407400

41

L H AXLE ASSEMBLY

Part# 62407400 (Superseded to 52405400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $178.49

05502900

42

BSHG-SLV .562X.625X.625 BRZ

Part# 05502900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

01037400

43

PIN

Part# 01037400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

08300700

44

SG-COMP .028X.34X1.062 WLD75

Part# 08300700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05804200

45

PIN-GRV .250X1.75 TP C

Part# 05804200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.07

01037200

46

LOCKOUT HUB

Part# 01037200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $73.73

05803200

47

PIN-ROLL .093X1.00

Part# 05803200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01037500

48

KNOB

Part# 01037500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $47.29

06700100

49

PIN-COTR .09X.75 PL

Part# 06700100 (Superseded to 06706900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02423300

50

SHIFT LINK

Part# 02423300 (Superseded to 02449300)

OEM Warranty Repair Part for Ariens

Not available

02423200

51

LEVER - SHIFT ARM

Part# 02423200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $36.84

01215100

52

CLEVIS PIN

Part# 01215100

OEM Warranty Repair Part for Ariens

Not available

05903900

53

BLT-HEX .31-18X.50 PL GR2

Part# 05903900 (Superseded to 05947200)

OEM Warranty Repair Part for Ariens

Not available

05913600

54

BLT-HEX .31-18X3.00 PL GR2

Part# 05913600 (Superseded to 05962500)

OEM Warranty Repair Part for Ariens

Not available

02423100

55

BRACKET SHIFT LEVER

Part# 02423100

OEM Warranty Repair Part for Ariens

Not available

02411500

56

SPACER .5 X .33 X 2.4

Part# 02411500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06504200

57

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06700200

58

PIN-COTR .09X1.0 PL

Part# 06700200 (Superseded to 06707000)

OEM Warranty Repair Part for Ariens

Not available

02406900

59

ROD, FORK PIVOT

Part# 02406900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

02427200

60

FORK, CLUTCH

Part# 02427200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $49.14

08309400

61

SG-TENS .080X.73X3.06 WLD 20

Part# 08309400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.30

62402700

62

SPRING ASSEMBLY

Part# 62402700 (Superseded to 52404700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $54.06

01054200

63

ADAPTER SPACER

Part# 01054200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

06506200

64

NUT-LK-NYL.312-18 PL

Part# 06506200 (Superseded to 06530200)

OEM Warranty Repair Part for Ariens

Not available

05403900

65

BRG-BALL .625X1.375X.44

Part# 05403900 (Superseded to 05435100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

02200200

66

SPINDLE HOUSING

Part# 02200200 (Superseded to 52406000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $141.37

02415500

67

BEARING SPACER

Part# 02415500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

02200300

68

DRIVE SPINDLE HOUSING

Part# 02200300 (Superseded to 52406000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $141.37

00303400

69

ROLLER

Part# 00303400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

02407600

70

SPINDLE

Part# 02407600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.58

01054600

71

DRIVE PLATE

Part# 01054600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $128.51

02407100

72

DRIVE DISC SPACER 1.3X.76X.19

Part# 02407100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

06412300

73

WSHR-FL-STL.344X.688X.065PL

Part# 06412300 (Superseded to 06437200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05900300

74

BLT-HEX .31-18X1.00 PL GR 2

Part# 05900300 (Superseded to 05946900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06301800

75

WSHR-LK-INT .313X.030 PL

Part# 06301800 (Superseded to 06310500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06501500

76

NUT-HEX .312-18

Part# 06501500 (Superseded to 06529200)

OEM Warranty Repair Part for Ariens

Not available

03510500

77

DRAIN LOCK

Part# 03510500

OEM Warranty Repair Part for Ariens

Not available

03510100

78

TUBE

Part# 03510100

OEM Warranty Repair Part for Ariens

Not available

03019900

79

HOSE CLAMP

Part# 03019900

OEM Warranty Repair Part for Ariens

Not available

03507700

80

BUSHING

Part# 03507700 (Superseded to 03493100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

07505000

81

SNAP BUSHING-.437

Part# 07505000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

02216100

82

SHORTING WIRE

Part# 02216100

OEM Warranty Repair Part for Ariens

Not available

62402200

83

FRICTION WHEEL ASSEMBLY

Part# 62402200 (Superseded to 52404600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $190.56

06508600

84

NUT-LK-NYL .875-14

Part# 06508600 (Superseded to 06530500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

05409300

85

BRG-BALL .876 X 1.750 X .50

Part# 05409300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $42.43

06407100

86

WSHR-FL-STL .880X1.250X.062

Part# 06407100 (Superseded to 06436900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05702100

87

RG-RTNG-INT 1.750X.062

Part# 05702100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

02445500

88

SPINDLE HUB

Part# 02445500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $53.94

00300300

89

FRICTION DISC

Part# 00300300 (Superseded to 04743700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $35.72

06507700

90

NUT-LK-NYL.625-18 PL

Part# 06507700 (Superseded to 06530300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

02445500

91

SPINDLE HUB

Part# 02445500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $53.94

05902200

92

BLT-HEX .31-18X.75 PL GR2

Part# 05902200 (Superseded to 05947000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02422800

93

CLUTCH ENGAGEMENT YOKE

Part# 02422800 (Superseded to 02422851)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.25

02408600

94

SPACER 1.00 X .64 X .38

Part# 02408600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

02422700

95

ADAPTER

Part# 02422700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

02213500

96

ROD ADAPTER

Part# 02213500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $29.68

52403200

97

PINION & SPROCKET ASSEMBLY

Part# 52403200

OEM Warranty Repair Part for Ariens

Not available

62407200

98

SPROCKET ASSY

Part# 62407200 (Superseded to 52405200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $201.18

02408100

99

CARRIER SHAFT

Part# 02408100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $59.48

06600600

100

KEY-WDRF .125X.500X.203 SAE 3

Part# 06600600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05505700

101

BSHG-SLV .750X.814X .750 BRZ

Part# 05505700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

02414100

102

BEARING FLANGE

Part# 02414100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.81

05512600

103

BSHG-SLV .882X1.250X.531

Part# 05512600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

02450900

104

JUMPER

Part# 02450900

OEM Warranty Repair Part for Ariens

Not available

07510700

107

WIRE CLIP

Part# 07510700

OEM Warranty Repair Part for Ariens

Not available

06407000

108

WSHR-FL-STL .625X1.469X.109PL

Part# 06407000

OEM Warranty Repair Part for Ariens

Not available
