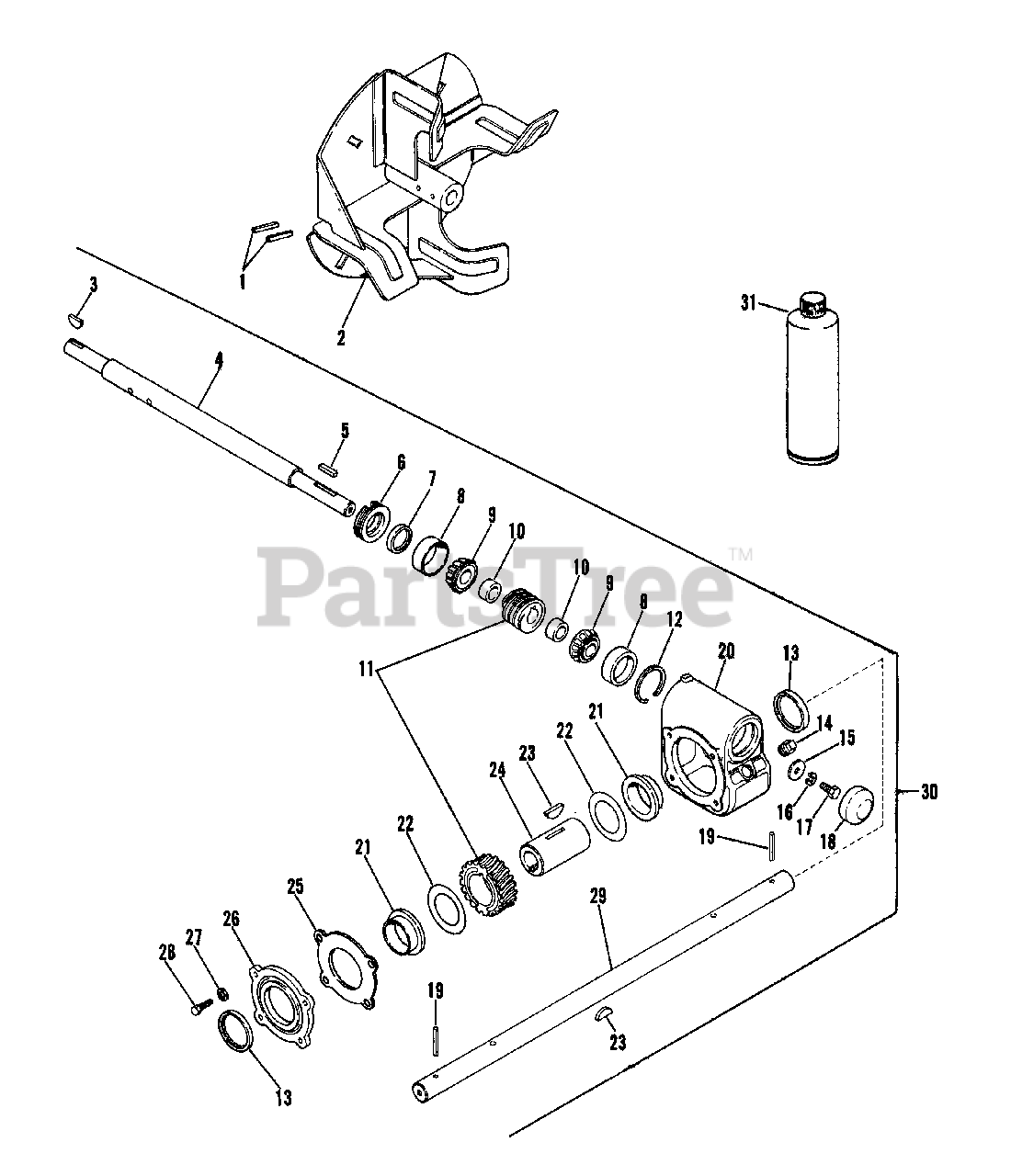

924076 (ST 1236) - Ariens 36" Snow Blower, 12hp Tecumseh (SN: 000101 & Above) Gear Case/Cast Iron Parts Diagram

36" Snow Blower, 12hp Tecumseh

Gear Case/Cast Iron Parts Diagram

  • Title

1

Ariens 05801500

PIN-ROLL .313X1.75

$2.99

$

In Stock, only 4 left!

0

2

Ariens 02437600

FAN - 14"
(Superseded to 02437651)

$287.99

$

Usually ships in 4-12 days

0

3

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$3.49

$

In Stock, Qty 8

0

4

Ariens 02437500

SHAFT, WORM - 1.00 DIA.

Note: (36" Blower Assemblies)

$212.99

$

Usually ships in 4-12 days

0

4

Ariens 02406200

SHAFT, WORM - 1.00 DIA.

Note: (28" and 32" Blower Assemblies)

$263.99

$

Usually ships in 4-12 days

0

5

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.99

$

In Stock, Qty 5

0

6

Ariens 02401500

ADJUSTMENT PLUG - 1" SHAFT

$94.99

$

Usually ships in 4-12 days

0

7

Ariens 05606100

SEAL 1.000X1.312X.150

$13.99

$

In Stock, only 1 left!

0

8

Ariens 05404400

BRG-CUP 1.781X.475

$11.99

$

In Stock, Qty 20+

0

9

Ariens 05404500

BRG-CONE .750X.61

$29.99

$

In Stock, Qty 11

0

10

Ariens 02005000

BOLT, HEX HEAD

$

$

Not available

11

Ariens 52400900

WORM & GEAR SERVICE ASSEMBLY

$180.99

$

Usually ships in 4-12 days

0

12

Ariens 05707500

RG-RTNG-INT 1.781X.062

$9.99

$

In Stock, Qty 8

0

13

Ariens 05607000

SEAL 1.625X2.125X.250

$10.99

$

In Stock, Qty 18

0

14

Ariens 00113800

PIPE PLUG

$6.49

$

Usually ships in 4-12 days

0

15

Ariens 06408200

WSHR-FL-STL .328X1.0X.094
(Superseded to 06437500)

$3.99

$

In Stock, only 1 left!

0

16

Ariens 06300100

WSHR-LK .313X.093 MED HICLR

$

$

Not available

17

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.99

$

In Stock, Qty 20+

0

18

Ariens 00403700

DUST CAP

$18.99

$

In Stock, only 2 left!

0

19

Ariens 05803000

PIN-ROLL .188X1.50

$1.49

$

In Stock, only 2 left!

0

20

Ariens 02400200

GEAR CASE - CAST IRON

$

$

Not available

21

Ariens 05505900

BSHG-FLG .683X1.87X1.68X2.250

$15.99

$

In Stock, only 4 left!

0

22

Ariens 06408700

WSHR-FL-STL 1.625X2.500X.012

$11.99

$

In Stock, only 4 left!

0

23

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

$3.99

$

In Stock, only 1 left!

0

24

Ariens 02406400

GEAR CASE SHAFT

$184.99

$

Usually ships in 4-12 days

0

25

Ariens 00200800

GASKET

$3.99

$

In Stock, Qty 17

0

26

Ariens 02401300

GEAR CASE COVER

$139.99

$

Usually ships in 4-12 days

0

27

Ariens 06301700

WSHR-LK-EXT. 250 ID

$2.49

$

Usually ships in 4-12 days

0

28

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$1.49

$

In Stock, Qty 12

0

29

Ariens 02406500

SHAFT, 32" RAKE - 1.00 DIA.

Note: (73)

$223.99

$

Usually ships in 4-12 days

0

29

Ariens 02459600

SHAFT, 28" RAKE - 1.00 DIA.

Note: (77)

$70.99

$

Usually ships in 4-12 days

0

29

Ariens 03519500

SHAFT, 36" RAKE - 1.00 DIA.

Note: (71,76)

$

$

Not available

30

Ariens 52403500

GEAR CASE - CAST IRON

Note: (924071, 073), (Complete except for auger shaft);Requires 5 Oz. L-2 Compound

$985.99

$

Usually ships in 4-12 days

0

31

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

$18.99

$

In Stock, Qty 20+
