924080 (TT 8) - Ariens Snow Blower, 8hp Tecumseh (SN: 000101 - 000235) Speed Selector And Wheels Parts Diagram

Snow Blower, 8hp Tecumseh

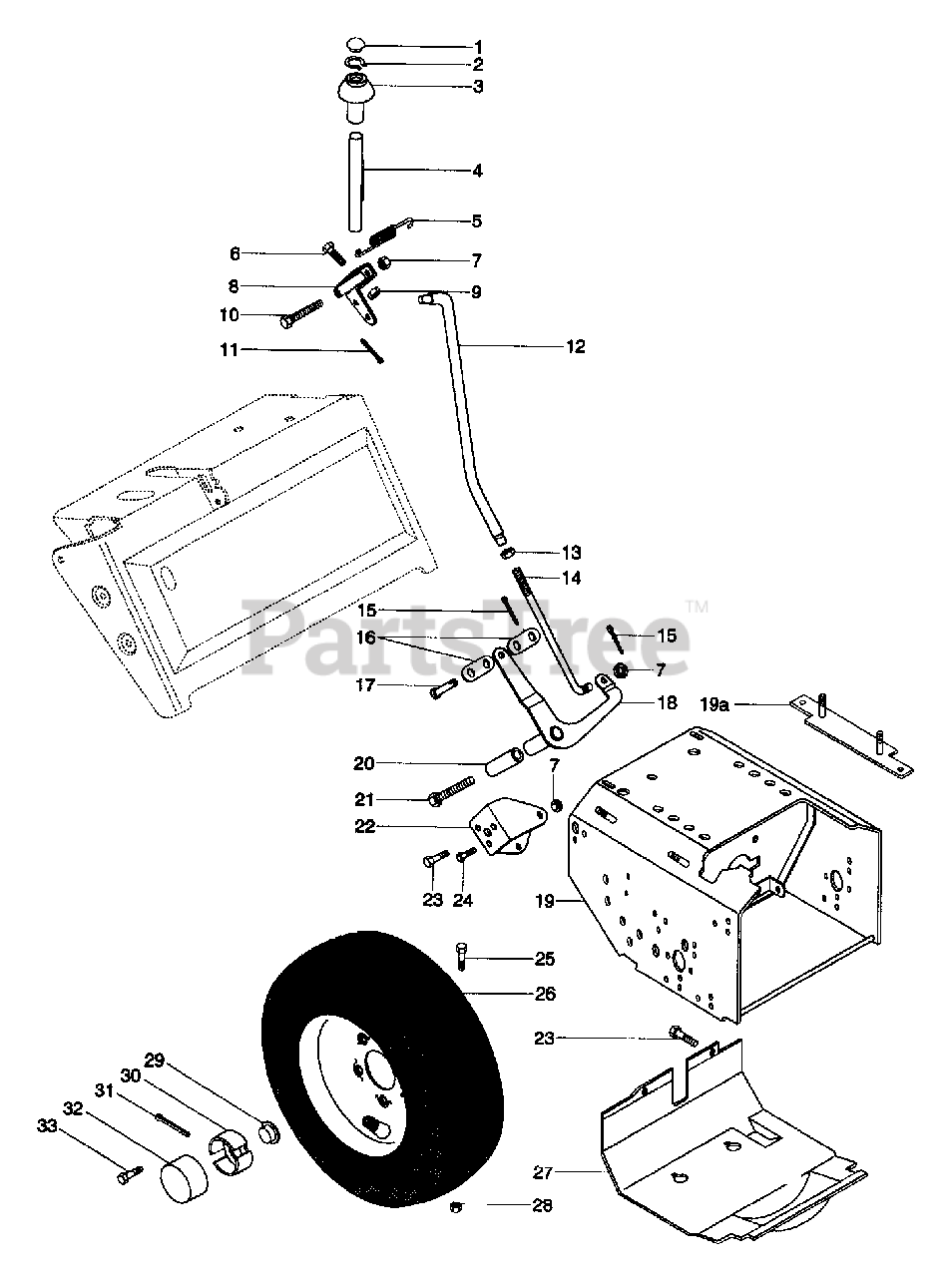

Speed Selector And Wheels Parts Diagram

  • Title

1

Ariens 07516700

HOLE PLUG

$1.99

$

In Stock, Qty 12

0

2

Ariens 05708600

RG-RTNG-EXT .500X.015

$2.99

$

In Stock, Qty 11

0

3

Ariens 07509600

KNOB

$

$

Not available

4

Ariens 02444800

ROD
(Superseded to 02444851)

$85.99

$

Usually ships in 4-12 days

0

5

Ariens 08318400

SG-TENS .055X.33X1.31 WLD 7

$10.99

$

Usually ships in 4-12 days

0

6

Ariens 05913200

BLT-HEX .25-20X1.00 GR2
(Superseded to 05947700)

$1.99

$

In Stock, Qty 8

0

7

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

8

Ariens 02462600

PIVOT

$

$

Not available

9

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 05919200

BLT-HEX .31-18X3.50 PL GR2
(Superseded to 05948000)

$2.99

$

Usually ships in 4-12 days

0

11

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

12

Ariens 02465700

UPPER SHIFT ROD

$169.99

$

Usually ships in 4-12 days

0

13

Ariens 06529500

NUT-HEX .312-24 YWZC
(Superseded to 06500939)

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 02465600

LOWER SHIFT ROD

$58.99

$

In Stock, only 1 left!

0

15

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

16

Ariens 02449300

SHIFT LINK

$

$

Not available

17

Ariens 01215100

CLEVIS PIN

$

$

Not available

18

Ariens 02423200

LEVER - SHIFT ARM

$52.99

$

Usually ships in 4-12 days

0

19

Ariens 02401900

FRAME
(Superseded to 02401959)

$

$

Not available

19A

Ariens 02401800

BOLT STRAP

$26.99

$

Usually ships in 4-12 days

0

19A

Ariens 02402400

BOLT STRAP

Note: (924085)

$

$

Not available

20

Ariens 02411500

SPACER .5 X .33 X 2.4

$7.99

$

Usually ships in 4-12 days

0

21

Ariens 05913600

BLT-HEX .31-18X3.00 PL GR2
(Superseded to 05962500)

$3.99

$

In Stock, Qty 20+

0

22

Ariens 02423100

BRACKET SHIFT LEVER

$

$

Not available

23

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.99

$

In Stock, Qty 20+

0

24

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.99

$

In Stock, Qty 13

0

25

Ariens 05917300

BLT-HEX .25-20X1.75 GR2
(Superseded to 05964700)

Note: (81)

$2.49

$

Usually ships in 4-12 days

0

26

Ariens 07105000

TUBE

Note: (924081)

$12.99

$

In Stock, only 2 left!

0

26

Ariens 07103700

TUBE

Note: (924080, 082, 083, 086)

$15.99

$

In Stock, only 2 left!

0

26

Ariens 07108700

TUBE

Note: (924084, 085)

$36.99

$

Usually ships in 4-12 days

0

26

Ariens 07121500

RIM/HUB ASSY 4.10/3.50X6

Note: (924081)

$62.99

$

In Stock, only 1 left!

0

26

Ariens 07107600

WHL

Note: (924080, 082, 083, 086)

$68.99

$

In Stock, only 1 left!

0

26

Ariens 07107700

WHL

Note: (924084, 085)

$83.99

$

Usually ships in 4-12 days

0

26

Ariens 07125000

TIRE

Note: (924081)

$

$

Not available

26

Ariens 07121800

TIRE 4.80-8 NHS

Note: (924080, 082, 083, 086)

$81.99

$

Usually ships in 4-12 days

0

26

Ariens 07121600

TIRE 16X6.50-8 SNO-HOG TREAD
(Superseded to 07124000)

Note: (924084, 085)

$

$

Not available

26

Ariens 07126000

WHEEL

Note: (924081)

$

$

Not available

26

Ariens 07121900

T/WHL ASSY 4.80-8
(Superseded to 07100017)

Note: (924080, 082, 083, 086)

$139.99

$

Usually ships in 4-12 days

0

26

Ariens 07121700

T/WHL ASSY 16X6.50-8 SNO-HOG
(Superseded to 07100018)

Note: (924084, 085)

$

$

Not available

27

Ariens 02443000

BOTTOM COVER
(Superseded to 02443059)

$92.99

$

Usually ships in 4-12 days

0

28

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

Note: (924081)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 01036600

PUSHNUT

$6.49

$

Usually ships in 4-12 days

0

30

Ariens 02403300

SPINDLE CUP
(Superseded to 03516900)

$19.99

$

In Stock, only 1 left!

0

31

Ariens 06702600

PIN-COTR .18X1.0 PL
(Superseded to 06712000)

Note: (924082, 089)

$2.49

$

Usually ships in 4-12 days

0

32

Ariens 00337700

HUB CAP

Note: (924080, 082, 083, 084, 085, 086)

$2.99

$

In Stock, Qty 20+

0

32

Ariens 07508700

HOLE PLUG

Note: (924081)

$1.99

$

In Stock, only 2 left!

0

33

Ariens 07406300

SCR-TAP .500-20X.62 HH PL
(Superseded to 07416900)

$14.99

$

In Stock, only 3 left!

0
