924085 (ST 1236) - Ariens 36" Snow Blower, 12hp Tecumseh (SN: 003670 & Above)

36" Snow Blower, 12hp Tecumseh

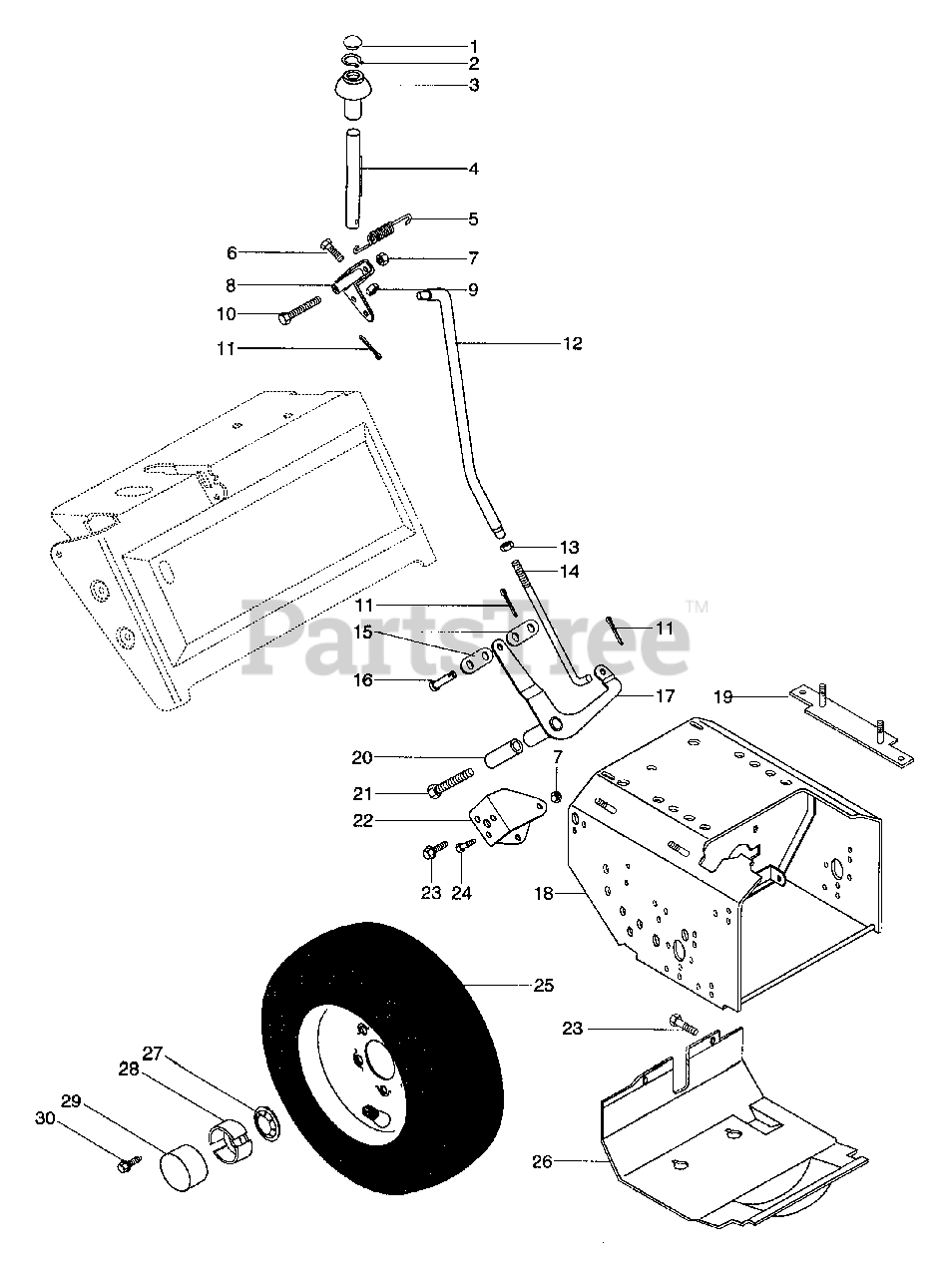

924085 (ST 1236) - Ariens 36" Snow Blower, 12hp Tecumseh (SN: 003670 & Above) > Parts Diagrams (9) > Speed Selector And Wheels

  • Title
07516700

1

HOLE PLUG

Part# 07516700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05708600

2

RG-RTNG-EXT .500X.015

Part# 05708600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

07509600

3

KNOB

Part# 07509600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.53

02444800

4

ROD

Part# 02444800 (Superseded to 02444851)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $42.99

08318400

5

SG-TENS .055X.33X1.31 WLD 7

Part# 08318400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

05913200

6

BLT-HEX .25-20X1.00 GR2

Part# 05913200 (Superseded to 05947700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06504200

7

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

02462600

8

PIVOT

Part# 02462600

OEM Warranty Repair Part for Ariens

Not available

06504000

9

NUT-LK-CTR .250-20 PL

Part# 06504000 (Superseded to 06529700)

OEM Warranty Repair Part for Ariens

Not available

05919200

10

BLT-HEX .31-18X3.50 PL GR2

Part# 05919200 (Superseded to 05948000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06700100

11

PIN-COTR .09X.75 PL

Part# 06700100 (Superseded to 06706900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02465700

12

UPPER SHIFT ROD

Part# 02465700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $119.24

06529500

13

NUT-HEX .312-24 YWZC

Part# 06529500

OEM Warranty Repair Part for Ariens

Not available

02465600

14

LOWER SHIFT ROD

Part# 02465600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $30.69

02449300

15

SHIFT LINK

Part# 02449300

OEM Warranty Repair Part for Ariens

Not available

01215100

16

CLEVIS PIN

Part# 01215100

OEM Warranty Repair Part for Ariens

Not available

02423200

17

LEVER - SHIFT ARM

Part# 02423200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $36.84

02401900

18

FRAME

Part# 02401900 (Superseded to 02401959)

OEM Warranty Repair Part for Ariens

Not available

02401800

19

BOLT STRAP

Part# 02401800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

02402400

19

BOLT STRAP

Part# 02402400

Note: For models (085,087,091,092)

OEM Warranty Repair Part for Ariens

Not available

02411500

20

SPACER .5 X .33 X 2.4

Part# 02411500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05913600

21

BLT-HEX .31-18X3.00 PL GR2

Part# 05913600 (Superseded to 05962500)

OEM Warranty Repair Part for Ariens

Not available

02423100

22

BRACKET SHIFT LEVER

Part# 02423100

OEM Warranty Repair Part for Ariens

Not available

07401400

23

SCR-TAP .312-18X.50 HWH PL TR

Part# 07401400 (Superseded to 07411500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05903900

24

BLT-HEX .31-18X.50 PL GR2

Part# 05903900 (Superseded to 05947200)

OEM Warranty Repair Part for Ariens

Not available

07103700

25

TUBE

Part# 07103700

Note: For models (080,082,086,091,093)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.71

07108700

25

TUBE

Part# 07108700

Note: For models (084,085,087,092)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $70.97

07107600

25

WHL

Part# 07107600

Note: For models (080,082,086,091,093)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $58.70

07107700

25

WHL

Part# 07107700

Note: For models (084,085,087,092)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $80.44

07121800

25

TIRE 4.80-8 NHS

Part# 07121800

Note: For models (080,082,083,086,093)

OEM Warranty Repair Part for Ariens

Not available

07121600

25

TIRE 16X6.50-8 SNO-HOG TREAD

Part# 07121600 (Superseded to 07124000)

Note: For models (084,085,087,092)

OEM Warranty Repair Part for Ariens

Not available

07121900

25

T/WHL ASSY 4.80-8

Part# 07121900 (Superseded to 07100017)

Note: For models (080,082,086,091,093)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $111.74

07121700

25

T/WHL ASSY 16X6.50-8 SNO-HOG

Part# 07121700 (Superseded to 07100018)

Note: For models (084,085,087,092)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $134.10

02443000

26

BOTTOM COVER

Part# 02443000 (Superseded to 02443059)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $81.11

01036600

27

PUSHNUT

Part# 01036600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

03516900

28

SPINDLE CUP

Part# 03516900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.39

00337700

29

HUB CAP

Part# 00337700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

07406300

30

SCR-TAP .500-20X.62 HH PL

Part# 07406300 (Superseded to 07416900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48
