924087 (ST 1232 E) - Ariens 32" Snow Blower, 12hp Tecumseh (SN: 000226 & Above) Headlight Parts Diagram

32" Snow Blower, 12hp Tecumseh

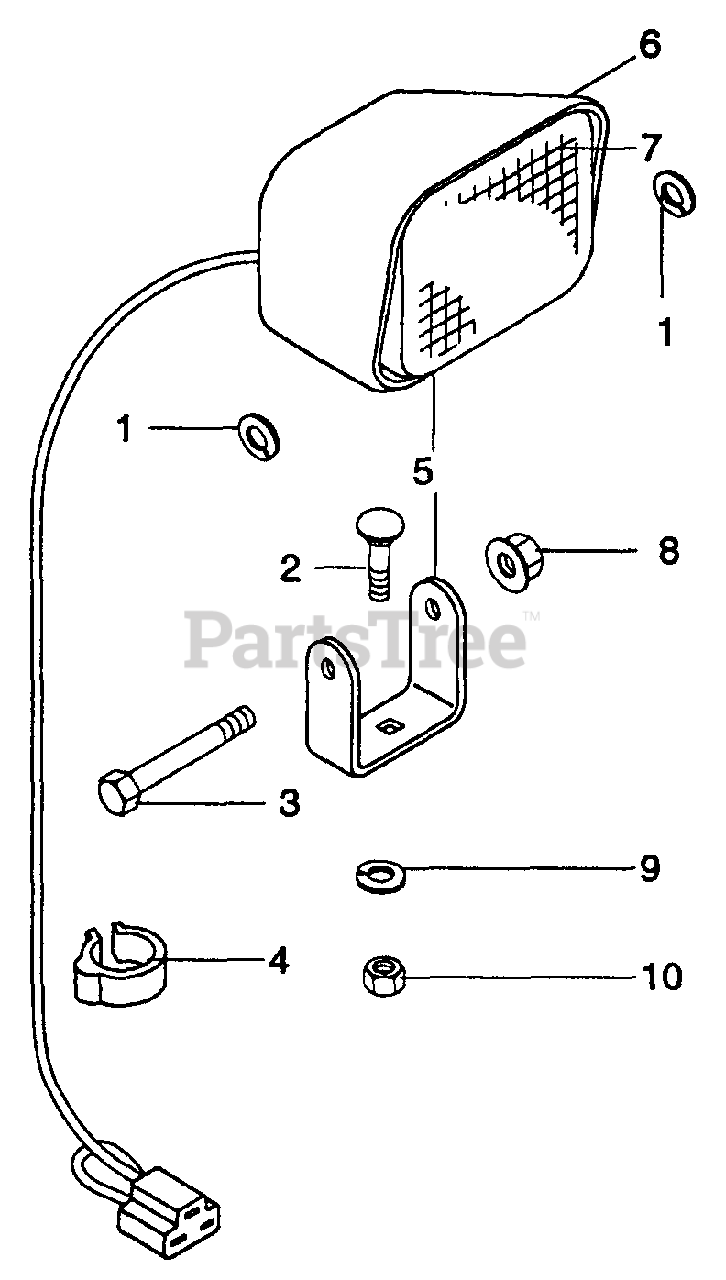

Headlight Parts Diagram

  • Title

1

Ariens 06303200

WSHR-LK-EXT .313X.030 PL

Note: For Models (085,086,087,088,089,090)

$2.49

$

Usually ships in 4-12 days

0

2

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

Note: For Models (085,086,087,088,089,090)

$1.99

$

In Stock, Qty 20+

0

3

Ariens 05913100

BLT-HEX .31-18X2.50 PL GR2
(Superseded to 05952600)

Note: For Models (085,086,087,088,089,090)

$1.99

$

In Stock, Qty 20+

0

4

Ariens 06901200

CLAMP

Note: For Models (085,086,087,088,089,90)

$5.49

$

In Stock, only 1 left!

0

5

Ariens 02463600

HEADLIGHT

Note: For Models (085,086,087,088,090)

$85.99

$

Usually ships in 4-12 days

0

6

Ariens 02464900

LENSE-FLOOD

Note: For Models (085,086,087,088,090)

$

$

Not available

7

Ariens 02465000

BULB

Note: For Models (085,086,087,088,089,090)

$24.99

$

In Stock, only 1 left!

0

8

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

Note: For Models (085,086,087,088,089,090)

$1.99

$

In Stock, Qty 20+

0

9

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

Note: For Models (085,086,087,088,089,090)

$0.99

$

In Stock, Qty 5

0

10

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

Note: For Models (085,086,087,088,089,090)

$1.49

$

In Stock, Qty 8

0
