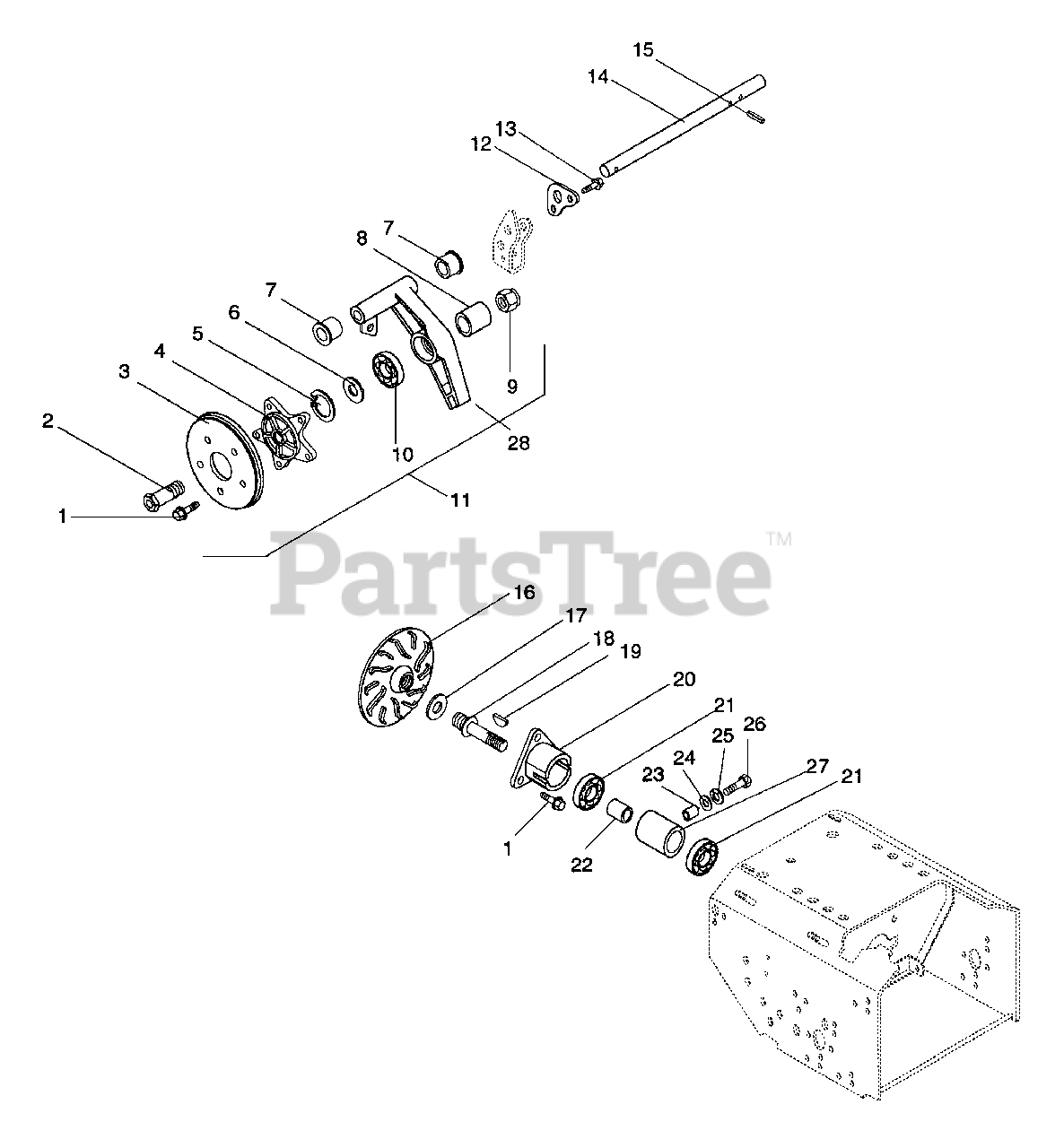

924093 (ST 924) - Ariens 24" Snow Blower, 9hp Tecumseh (SN: 001700 & Above) Friction Wheel Drive Parts Diagram

24" Snow Blower, 9hp Tecumseh

Friction Wheel Drive Parts Diagram

  • Title

1

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.99

$

In Stock, Qty 20+

0

2

Ariens 02445500

SPINDLE HUB

$79.99

$

Usually ships in 4-12 days

0

3

Ariens 00300300

FRICTION DISC
(Superseded to 09475300)

$36.99

$

In Stock, Qty 8

0

4

Ariens 02445400

DISC HUB

$24.99

$

In Stock, only 2 left!

0

5

Ariens 05702100

RG-RTNG-INT 1.750X.062

$6.49

$

In Stock, only 2 left!

0

6

Ariens 06407100

WSHR-FL-STL .880X1.250X.062
(Superseded to 06436900)

$2.49

$

In Stock, Qty 6

0

7

Ariens 05502600

BSHG-FLG .625X.750X.500X.875BR
(Superseded to 05500111)

$2.49

$

In Stock, Qty 20+

0

8

Ariens 05512600

BSHG-SLV .882X1.250X.531

$6.49

$

In Stock, only 2 left!

0

9

Ariens 06508600

NUT-LK-NYL .875-14
(Superseded to 06530500)

$7.49

$

Usually ships in 4-12 days

0

10

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

$37.99

$

In Stock, only 3 left!

0

11

Ariens 52404600

FRICTION WHEEL ASSEMBLY

$204.99

$

Usually ships in 4-12 days

0

12

Ariens 02407700

SUPPORT, SHAFT

$21.99

$

Usually ships in 4-12 days

0

13

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

$1.49

$

In Stock, Qty 8

0

14

Ariens 02408100

CARRIER SHAFT

$

$

Not available

15

Ariens 05802900

PIN-ROLL .156X1.00

$0.99

$

In Stock, Qty 16

0

16

Ariens 01054600

DRIVE PLATE

$170.99

$

Usually ships in 4-12 days

0

17

Ariens 02407100

DRIVE DISC SPACER 1.3X.76X.19

$16.99

$

Usually ships in 4-12 days

0

18

Ariens 02407600

SPINDLE

$77.99

$

Usually ships in 4-12 days

0

19

Ariens 06600600

KEY-WDRF .125X.500X.203 SAE 3

$1.49

$

Usually ships in 4-12 days

0

20

Ariens 02458200

HOUSING MOUNT

$95.99

$

In Stock, only 2 left!

0

21

Ariens 05403900

BRG-BALL .625X1.375X.44
(Superseded to 05435100)

$16.99

$

In Stock, Qty 20+

0

22

Ariens 02415500

BEARING SPACER

$5.49

$

In Stock, only 2 left!

0

23

Ariens 00303400

ROLLER

$15.99

$

In Stock, only 2 left!

0

24

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 5

0

26

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.99

$

In Stock, only 4 left!

0

27

Ariens 02458100

SPINDLE HOUSING

$79.99

$

Usually ships in 4-12 days

0

28

Ariens 02444500

CARRIER
(Superseded to 52404600)

$204.99

$

Usually ships in 4-12 days

0
