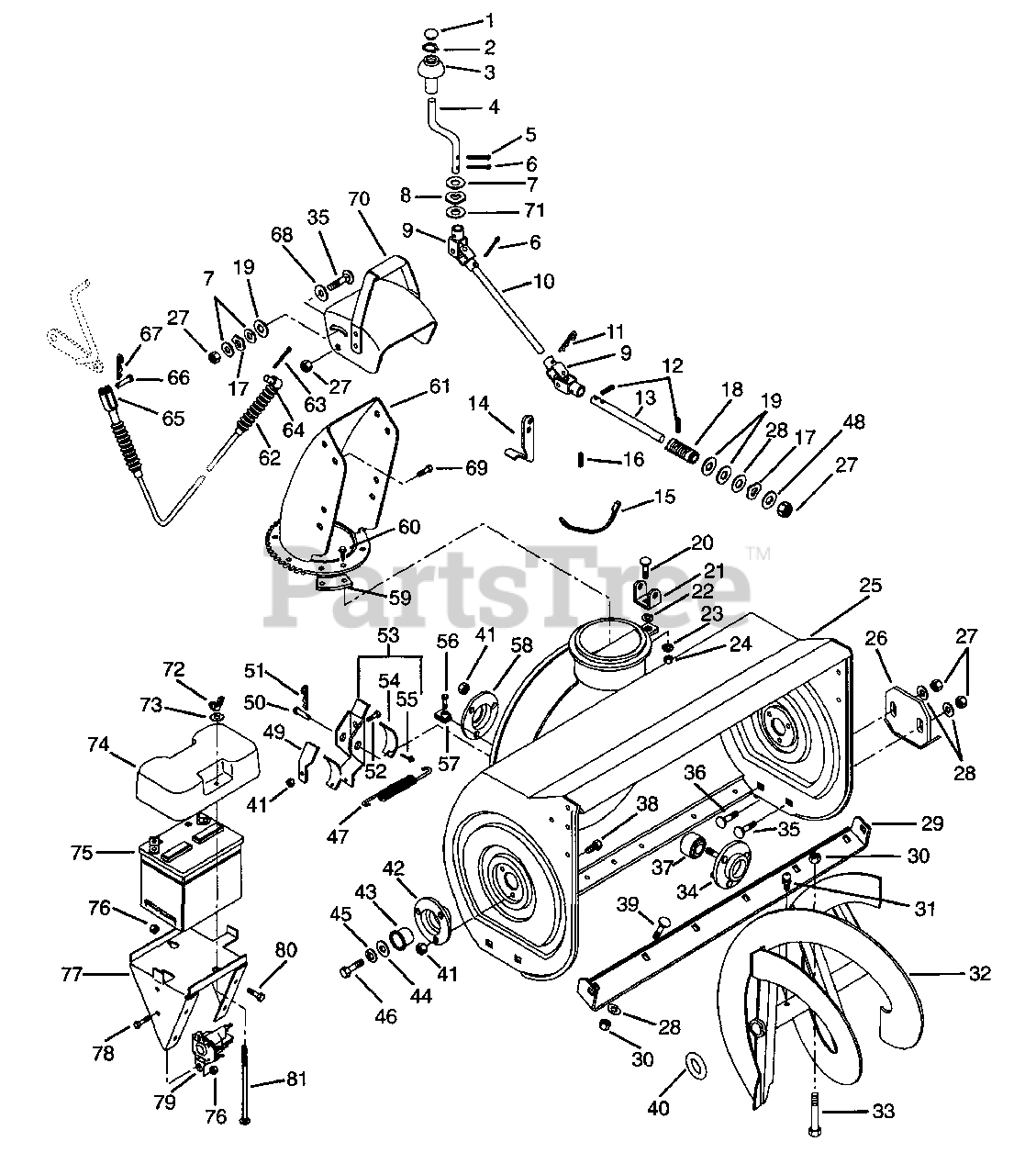

924104 (ST 1028) - Ariens 28" Snow Blower, 10hp Tecumseh (SN: 001400 & Above)

28" Snow Blower, 10hp Tecumseh

924104 (ST 1028) - Ariens 28" Snow Blower, 10hp Tecumseh (SN: 001400 & Above) > Parts Diagrams (9) > Auger, Impeller & Battery

  • Title
07516700

1

HOLE PLUG

Part# 07516700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05711300

2

RG-RTNG-EXT .375X.010

Part# 05711300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07508300

3

KNOB

Part# 07508300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

02473600

4

CRANK, CHUTE

Part# 02473600

OEM Warranty Repair Part for Ariens

Not available

06707300

5

@PIN-CTR .12X.75 EXTPRSQCT YWZ

Part# 06707300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06707100

6

@PIN-CTR .12X1.00 EXTPRSQCT YZ

Part# 06707100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06436200

7

@WSHR-FL-STL.406X.812X.065 YWZ

Part# 06436200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

02902400

8

SPRING WASHER

Part# 02902400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71

02470400

9

UNIVERSAL JOINT ASS'Y

Part# 02470400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $97.27

02474600

10

ROD, CHUTE CRANK

Part# 02474600

OEM Warranty Repair Part for Ariens

Not available

06707200

11

PIN-HAIR INT .08X.38X1.42 YWZC

Part# 06707200 (Superseded to 06701000)

OEM Warranty Repair Part for Ariens

Not available

05803400

12

PIN-ROLL .125X.75

Part# 05803400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02473700

13

SHAFT, WORM

Part# 02473700

OEM Warranty Repair Part for Ariens

Not available

02473500

14

SUPPORT, CHUTE CRANK

Part# 02473500 (Superseded to 02473551)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $19.23

06917000

15

CABLE TIE LG 8-7/8

Part# 06917000

Note: (102,104,107,324,325,326)

OEM Warranty Repair Part for Ariens

Not available

02401700

16

TRIM

Part# 02401700

Note: (102,104,107,324,325,326)

OEM Warranty Repair Part for Ariens

Not available

01026000

17

WAVE WASHER .406X.750X.063FH

Part# 01026000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

02450000

18

WORM GEAR L.H.

Part# 02450000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.53

06416800

19

WSHR-PLASTIC .390X.875X.062

Part# 06416800 (Superseded to 06433600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06220800

20

@BLT-RHDSSQNK .31-18X.75 G5YZ

Part# 06220800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

02212300

21

WORM CLEVIS

Part# 02212300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

06307200

22

@WSHR-LK-EXT.326X.599X.031YWZC

Part# 06307200

OEM Warranty Repair Part for Ariens

Not available

06310600

23

WSHR-LK PYM .31X.062YWZC

Part# 06310600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06529200

24

@NUT-HEX .31-18 YWZC

Part# 06529200

OEM Warranty Repair Part for Ariens

Not available

52410000

25

HOUSING, BLOWER 24"

Part# 52410000

Note: (100,318)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $665.26

52409600

25

HOUSING, 24" BLOWER W/DECALS

Part# 52409600

Note: (106,323)

OEM Warranty Repair Part for Ariens

Not available

52409500

25

HOUSING, 28" BLOWER W/DECALS

Part# 52409500

Note: (104)

OEM Warranty Repair Part for Ariens

Not available

52410100

25

HOUSING, BLOWER 28" ELECTRIC

Part# 52410100

Note: (324)

OEM Warranty Repair Part for Ariens

Not available

52409700

25

HOUSING, 32" BLOWER W/DECALS

Part# 52409700

Note: (102)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $439.05

52409800

25

HOUSING, BLOWER 32" ELEC.

Part# 52409800

Note: (325)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $439.05

52410200

25

HOUSING, BLOWER 36" ELECTRIC

Part# 52410200

Note: (107,326)

OEM Warranty Repair Part for Ariens

Not available

02459959

26

RUNNER

Part# 02459959 (Superseded to 02483859)

Note: (100,318)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $17.83

03075559

26

RUNNER - SKID SHOE

Part# 03075559

Note: (102,104,106,107,323,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $33.48

06529600

27

@NUT-LK-CTR .38-16 YWZC

Part# 06529600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06435700

28

@WSHR-FL-STL.38X.875X.083 YWZC

Part# 06435700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01016400

29

SCRAPER BLADE 24"

Part# 01016400 (Superseded to 01016459)

Note: (100,318)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $27.89

02437300

29

SCRAPER BLADE 32"

Part# 02437300

Note: (102,325)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.66

02459200

29

SCRAPER BLADE 28"

Part# 02459200 (Superseded to 02459259)

Note: (104,317,322,324)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.66

03519200

29

SCRAPER BLADE 36"

Part# 03519200 (Superseded to 03519259)

Note: (107,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $51.99

02472200

29

BLADE, SCRAPER 24"

Part# 02472200

Note: (106,323)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $36.84

06529800

30

@NUT-LK-CTR .31-18 YWZC

Part# 06529800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07012600

31

FTG-LUBE .25-28X.256 YWZC

Part# 07012600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

52401300

32

RAKE, RIGHT-32"(1ID X 15.75OD)

Part# 52401300 (Superseded to 52412300)

Note: (102)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $332.60

52401400

32

RAKE, LEFT-32"(1"ID X 15.75OD)

Part# 52401400 (Superseded to 52412200)

Note: (102)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $332.60

52403900

32

RAKE, RIGHT-24"(1ID X 14.75OD)

Part# 52403900 (Superseded to 52411600)

Note: (100,318)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $263.65

52404000

32

RAKE, LEFT-24"(1"ID X 14.75OD)

Part# 52404000 (Superseded to 52411500)

Note: (100,318)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $252.76

52406300

32

RAKE, RIGHT-28"(1ID X 15.75OD)

Part# 52406300 (Superseded to 52410800)

Note: (104)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $252.76

52406400

32

RAKE, LEFT-28"(1"ID X 15.75OD)

Part# 52406400 (Superseded to 52410700)

Note: (104)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $253.97

53503400

32

RAKE, RIGHT-36"(1ID X 15.75OD)

Part# 53503400 (Superseded to 52412600)

Note: (107,326)

OEM Warranty Repair Part for Ariens

Not available

53503500

32

RAKE, LEFT-36"(1"ID X 15.75OD)

Part# 53503500 (Superseded to 52412500)

Note: (107,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $302.35

52408900

32

RAKE, RIGHT-24"(1ID X 15.75OD)

Part# 52408900 (Superseded to 52413600)

Note: (106,323)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $217.68

52409000

32

RAKE, LEFT-24"(1"ID X 15.75OD)

Part# 52409000 (Superseded to 52413500)

Note: (106,323)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $217.68

51001500

33

SHEAR BOLT SERVICE ASSEMBLY

Part# 51001500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.25

00301700

34

BEARING FLANGE

Part# 00301700

Note: (100,318)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.71

03086200

34

BEARING FLANGE

Part# 03086200

Note: (102,104,106,107,323,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $18.39

06211800

35

BLT-RHHDSQSHNK .38-16X.75 G2YZ

Part# 06211800 (Superseded to 06200004)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.98

06215500

36

@BLT-RDHDSQNK .38-16X1.00 G2YZ

Part# 06215500 (Superseded to 06223600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05418200

37

BRG-BALL1.0X2.0X.56

Part# 05418200

Note: (102,104,106,107,323,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $29.01

05406300

37

BRG-BALL .750X1.750X.50

Part# 05406300

Note: (100,318)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.89

07028600

38

BLT-SERNK SL .25-20X.50 YWZC

Part# 07028600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06212200

39

@BLT-RHDSSQNK .31-18X.62 G5YZ

Part# 06212200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06436300

40

WSHR-FL-STL 1.010X1.505X.062YZ

Part# 06436300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06529700

41

@NUT-LK-CTR .25-20 YWZC

Part# 06529700

OEM Warranty Repair Part for Ariens

Not available

02437451

42

BEARING SUPPORT

Part# 02437451 (Superseded to 02437400)

OEM Warranty Repair Part for Ariens

Not available

05503500

43

BSHG-FLG 1.000X1.12X.62X1.50BR

Part# 05503500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

06436400

44

WSHR-FL-STL.511X1.441X.125 YWZ

Part# 06436400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06307300

45

@WSHR-LK .50X.125 REG YWZC

Part# 06307300 (Superseded to 06300115)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05947100

46

@BLT-HEX .50-13X1.00 GR5 YWZC

Part# 05947100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

08316400

47

SG-TENS .062X.56X8.0 WLD 11

Part# 08316400 (Superseded to 08300538)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

06443800

48

WSHR,FLT .438X1.00X.160 ZCC

Part# 06443800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

02440500

49

ARM EXTENSION

Part# 02440500 (Superseded to 02440551)

Note: (100,318,319)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

02448100

50

PIN-CLEV .371X1.16 YWZC

Part# 02448100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06707500

51

@PIN-CTR .06X.75 EXTPRSQCT YWZ

Part# 06707500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

05946800

52

@BLT-HEX .25-20X.75 GR5 YWZC

Part# 05946800

Note: (100,318)

OEM Warranty Repair Part for Ariens

Not available

52404800

53

BRAKE ARM ASSEMBLY

Part# 52404800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

02217800

54

BRAKE LINING

Part# 02217800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

06806700

55

RVT-TBLR .187X.437 RH ST PL

Part# 06806700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07028500

56

BLT-SERHFWH .38-16X.75 YWZC

Part# 07028500

OEM Warranty Repair Part for Ariens

Not available

07002600

57

NUT-RETNR .38-16 TINRMAN

Part# 07002600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

01014200

58

BEARING FLANGE

Part# 01014200

Note: (100,318,319)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

03086100

58

BEARING FLANGE

Part# 03086100

Note: (102,104,106,107,323,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $12.24

02463500

59

CHUTE CLAMP

Part# 02463500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $12.24

07411900

60

@SCR-TAP 12-24X.50 HWH TR YWZC

Part# 07411900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

02449959

61

DISCHARGE CHUTE - HIGH

Part# 02449959

Note: (102,104,107,323,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $184.41

02454800

61

DISCHARGE CHUTE

Part# 02454800

Note: (100,318)

OEM Warranty Repair Part for Ariens

Not available

02472700

61

DISCHARGE CHUTE

Part# 02472700

Note: (106,323)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $141.37

06937700

62

CONTROL CABLE

Part# 06937700

Note: (102,104,107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $88.24

06706900

63

@PIN-CTR .09X.75 EXTPRSQCT YWZ

Part# 06706900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06917500

64

PIVOT

Part# 06917500

Note: (102,104,107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

02401200

65

CLEVIS

Part# 02401200

Note: (102,104,107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

02401400

66

CLEVIS PIN

Part# 02401400

Note: (102,104,107,324,325,326)

OEM Warranty Repair Part for Ariens

Not available

06712400

67

@PIN-CTR .06X.50 EXTPRSQCT YWZ

Part# 06712400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06436200

68

@WSHR-FL-STL.406X.812X.065 YWZ

Part# 06436200

Note: (100,318)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05959400

69

@BLT-HEX .38-16X.75 GR5 YWZC

Part# 05959400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

52406100

70

CHUTE DEFLECTOR W/DECAL

Part# 52406100

Note: (100,106,318,323)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $122.92

53114400

70

DEFLECTOR W/DECAL

Part# 53114400

Note: (102,104,107,324,325,326)

OEM Warranty Repair Part for Ariens

Not available

06436500

71

WSHR-FL-STL .382X.812X.023YWZC

Part# 06436500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06537500

72

NUT-LK WING .250-20 YWZC

Part# 06537500

Note: (107,324,325,326)

OEM Warranty Repair Part for Ariens

Not available

06437300

73

@WSHR-FL-STL.281X.62X.065 YWZC

Part# 06437300

Note: (107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

09032300

74

COVER, BATTERY

Part# 09032300 (Superseded to 04912900)

Note: (107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

03055700

75

BATTERY

Part# 03055700 (Superseded to 53123300)

Note: (107,324,325,326)

OEM Warranty Repair Part for Ariens

Not available

06529700

76

@NUT-LK-CTR .25-20 YWZC

Part# 06529700

Note: (107,324,325,326)

OEM Warranty Repair Part for Ariens

Not available

02403159

77

TRAY, BATTERY

Part# 02403159

Note: (107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $17.55

05932000

78

BLT-HEX .25-20X.63

Part# 05932000

Note: (107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

03551000

79

SOLENOID

Part# 03551000

Note: (107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71

05946800

80

@BLT-HEX .25-20X.75 GR5 YWZC

Part# 05946800

Note: (107,324,325,326)

OEM Warranty Repair Part for Ariens

Not available

06220400

81

@BLT-RDHDSQNK .25-20X7.00 G2YZ

Part# 06220400

Note: (107,324,325,326)

OEM Warranty Repair Part for Ariens

Not available
