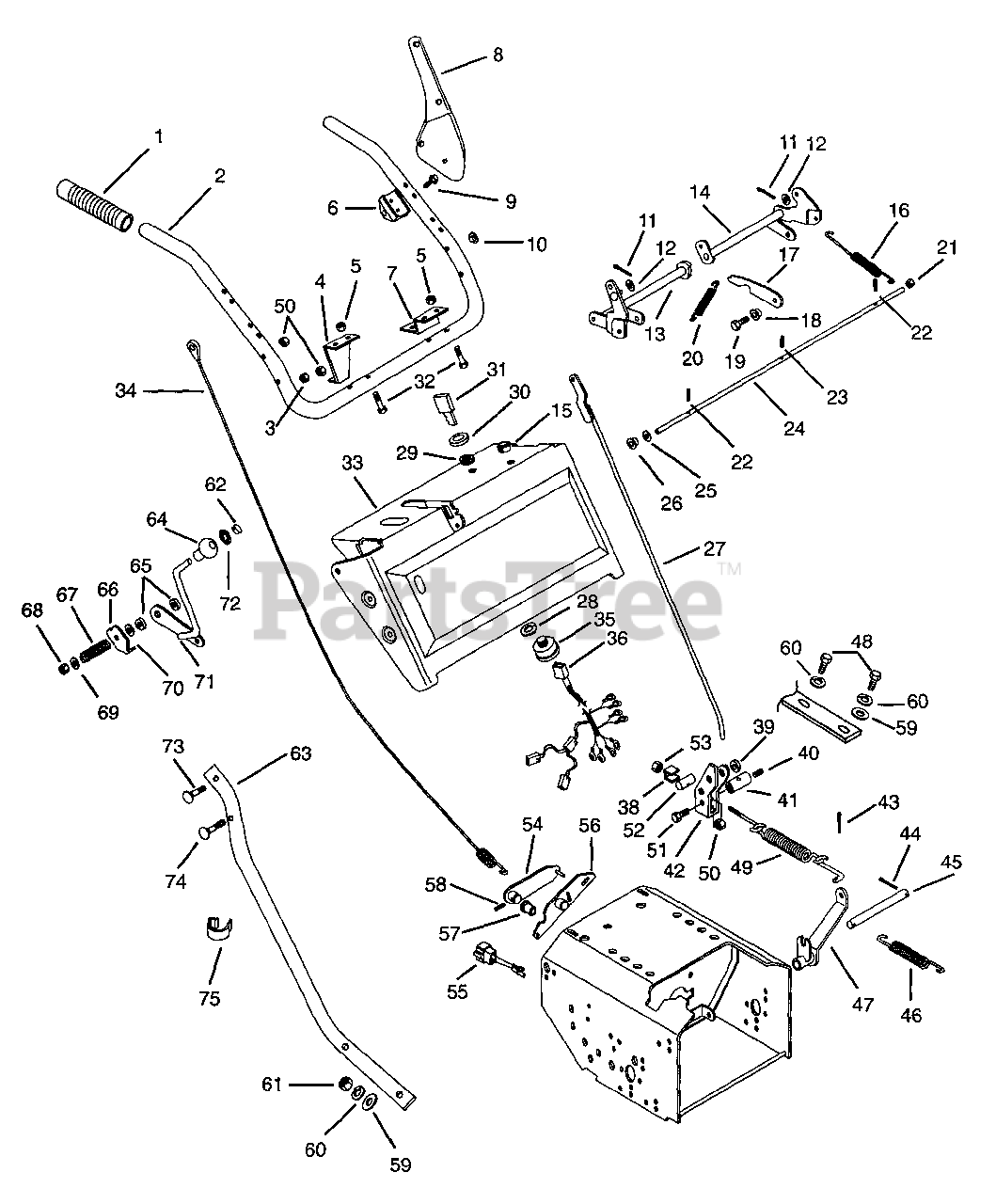

924104 (ST 1028) - Ariens 28" Snow Blower, 10hp Tecumseh (SN: 001400 & Above)

28" Snow Blower, 10hp Tecumseh

924104 (ST 1028) - Ariens 28" Snow Blower, 10hp Tecumseh (SN: 001400 & Above) > Parts Diagrams (9) > Handlebars & Controls

  • Title
07518700

1

HANDLE GRIP

Part# 07518700 (Superseded to 07500239)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

02462951

2

UPPER HANDLEBAR

Part# 02462951

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $212.36

06530400

3

@NUT-SPNLK-FLG .312-18 YWZC

Part# 06530400

OEM Warranty Repair Part for Ariens

Not available

02463200

4

BRACKET, ROD

Part# 02463200 (Superseded to 02463251)

Note: (102,104,107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.24

06529700

5

@NUT-LK-CTR .25-20 YWZC

Part# 06529700

Note: (102,104,107,324,325,326)

OEM Warranty Repair Part for Ariens

Not available

02464700

6

HANDLE PIVOT

Part# 02464700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

02463300

7

BRACKET, CHUTE CRANK

Part# 02463300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

02462100

8

CLUTCH LEVER - COATED

Part# 02462100 (Superseded to 02474543)

Note: (107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.00

02474500

8

LEVER, CLUTCH

Part# 02474500 (Superseded to 02474543)

Note: (100,102,104,105,106,318,323)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.00

07411800

9

SCR-TAP 12-24X1.50 CROVH YZ BT

Part# 07411800

OEM Warranty Repair Part for Ariens

Not available

07511800

10

BUMPER

Part# 07511800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06707400

11

@PIN-CTR .09X.50 EXTPRSQCT YWZ

Part# 06707400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06437300

12

@WSHR-FL-STL.281X.62X.065 YWZC

Part# 06437300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

02461800

13

RH LEVER

Part# 02461800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $122.92

02462300

14

LH LEVER

Part# 02462300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $122.92

07509500

15

SNAP BUSHING

Part# 07509500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

08325500

16

SG-TENS .051X.50X5.12 WLD 10.4

Part# 08325500 (Superseded to 08335400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

02463400

17

ARM, LATCH

Part# 02463400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.81

05516100

18

BSHG-FLG .265X.437X.329X1.00

Part# 05516100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

05946800

19

@BLT-HEX .25-20X.75 GR5 YWZC

Part# 05946800

OEM Warranty Repair Part for Ariens

Not available

08310900

20

SG-TENS .048X.44X1.75 WLD 9

Part# 08310900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

06530800

21

NUT-CROWN .312-18 YWZC

Part# 06530800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05803300

22

PIN-ROLL .156X.75

Part# 05803300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

05800900

23

PIN-ROLL .125X1.00

Part# 05800900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02463000

24

ROD

Part# 02463000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $55.29

06437200

25

@WSHR-FL-STL.344X.688X.065YWZC

Part# 06437200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05516200

26

BSHG-FLG .325X.465X.333X.685

Part# 05516200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71

02464300

27

TRACTION CLUTCH ROD

Part# 02464300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $59.48

06306900

28

WSHR-LK-INT .625X.045 YWZC

Part# 06306900

Note: (107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06517300

29

NUT-PANEL .625-32 GRECO

Part# 06517300

Note: (107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

07517700

30

CAP - IGNITION SWITCH

Part# 07517700

Note: (107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

02460700

31

KEY -W/CAP

Part# 02460700

Note: (107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $7.77

05952500

32

@BLT-HEX .25-20X1.50 GR5 YWZC

Part# 05952500

Note: (102,104,107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

52409900

33

PANEL W/DECAL

Part# 52409900

Note: (100,105,106,318,323)

OEM Warranty Repair Part for Ariens

Not available

52410400

33

PANEL - W/DECAL

Part# 52410400

Note: (102,104)

OEM Warranty Repair Part for Ariens

Not available

52410500

33

PANEL W/DECAL

Part# 52410500

Note: (107,324,325,326)

OEM Warranty Repair Part for Ariens

Not available

06939700

34

CABLE, BLOWER CLUTCH

Part# 06939700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $80.44

52707300

35

SWITCH ASSEMBLY

Part# 52707300 (Superseded to 52709300)

Note: (Contains 28-31) (107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $67.02

02403000

36

ST 12V HARNESS

Part# 02403000

Note: (107,324,325,326)

OEM Warranty Repair Part for Ariens

Not available

01054200

38

ADAPTER SPACER

Part# 01054200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

02408600

39

SPACER 1.00 X .64 X .38

Part# 02408600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

06001200

40

SCR-SET .32-18X.38 SKHCUPNL OH

Part# 06001200 (Superseded to 06005500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

02213500

41

ROD ADAPTER

Part# 02213500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $29.68

02422800

42

CLUTCH ENGAGEMENT YOKE

Part# 02422800 (Superseded to 02422851)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.25

06707400

43

@PIN-CTR .09X.50 EXTPRSQCT YWZ

Part# 06707400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06707000

44

@PIN-CTR .09X1.00 EXTPRSQCT YZ

Part# 06707000

OEM Warranty Repair Part for Ariens

Not available

02406900

45

ROD, FORK PIVOT

Part# 02406900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

08309400

46

SG-TENS .080X.73X3.06 WLD 20

Part# 08309400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.30

02427200

47

FORK, CLUTCH

Part# 02427200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $49.14

05948700

48

@BLT-HEX .38-16X1.00 GR5 YWZC

Part# 05948700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

52404700

49

SPRING ASSEMBLY

Part# 52404700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $54.06

06529800

50

@NUT-LK-CTR .31-18 YWZC

Part# 06529800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05947000

51

@BLT-HEX .31-18X.75 GR5 YWZC

Part# 05947000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02422700

52

ADAPTER

Part# 02422700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

06530200

53

@NUT-LK-NYL .312-18 YWZC

Part# 06530200

OEM Warranty Repair Part for Ariens

Not available

03201000

54

LEVER CLUTCH

Part# 03201000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.61

02458400

55

JUMPER

Part# 02458400

Note: (102,104,105,106,318,323)

OEM Warranty Repair Part for Ariens

Not available

02442900

56

LEVER

Part# 02442900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $52.04

05503700

57

BSHG-FLG.500X.625X.312X.750NY

Part# 05503700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05802600

58

PIN-ROLL .156X.88

Part# 05802600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06435900

59

@WSHR-FL-STL.438X1.00X.083 YWZ

Part# 06435900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06306500

60

WSHR-LK .375X.115 HVY YWZC

Part# 06306500

OEM Warranty Repair Part for Ariens

Not available

06529400

61

@NUT-HEX .38-16 YWZC

Part# 06529400 (Superseded to 06500917)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07516700

62

HOLE PLUG

Part# 07516700

Note: (102,104,107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

02462851

63

HANDLEBAR, L.H. LOWER

Part# 02462851

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $110.74

02462751

63

HANDLEBAR, R.H. LOWER

Part# 02462751

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $110.74

07508300

64

KNOB

Part# 07508300

Note: (102,104,107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

01123800

65

FRICTION WASHER

Part# 01123800

Note: (102,104,107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

02463900

66

PRESSURE FLANGE

Part# 02463900

Note: (102,104,107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $10.06

08320900

67

SG-COMP .187X.56X1.62

Part# 08320900

Note: (102,104,107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

06529600

68

@NUT-LK-CTR .38-16 YWZC

Part# 06529600

Note: (102,104,107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06436200

69

@WSHR-FL-STL.406X.812X.065 YWZ

Part# 06436200

Note: (102,104,107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

02463100

70

SPACER .406X.620X.125

Part# 02463100

Note: (102,104,107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

02463800

71

LEVER-DEFLECTOR

Part# 02463800

Note: (102,104,107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.00

05711300

72

RG-RTNG-EXT .375X.010

Part# 05711300

Note: (102,104,107,324,325,326)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06220200

73

@BLT-RDHDSQNK .31-18X1.75 G5YZ

Part# 06220200

OEM Warranty Repair Part for Ariens

Not available

06212300

74

BLT-RDHDSQSHNK.31-18X2.75G2YWZ

Part# 06212300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06901200

75

CLAMP

Part# 06901200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30
