924110 (ST 824 DLE) - Ariens 24" Snow Blower, 8hp Tecumseh (SN: 000101 & Above) Gear Case-Aluminum Parts Diagram

24" Snow Blower, 8hp Tecumseh

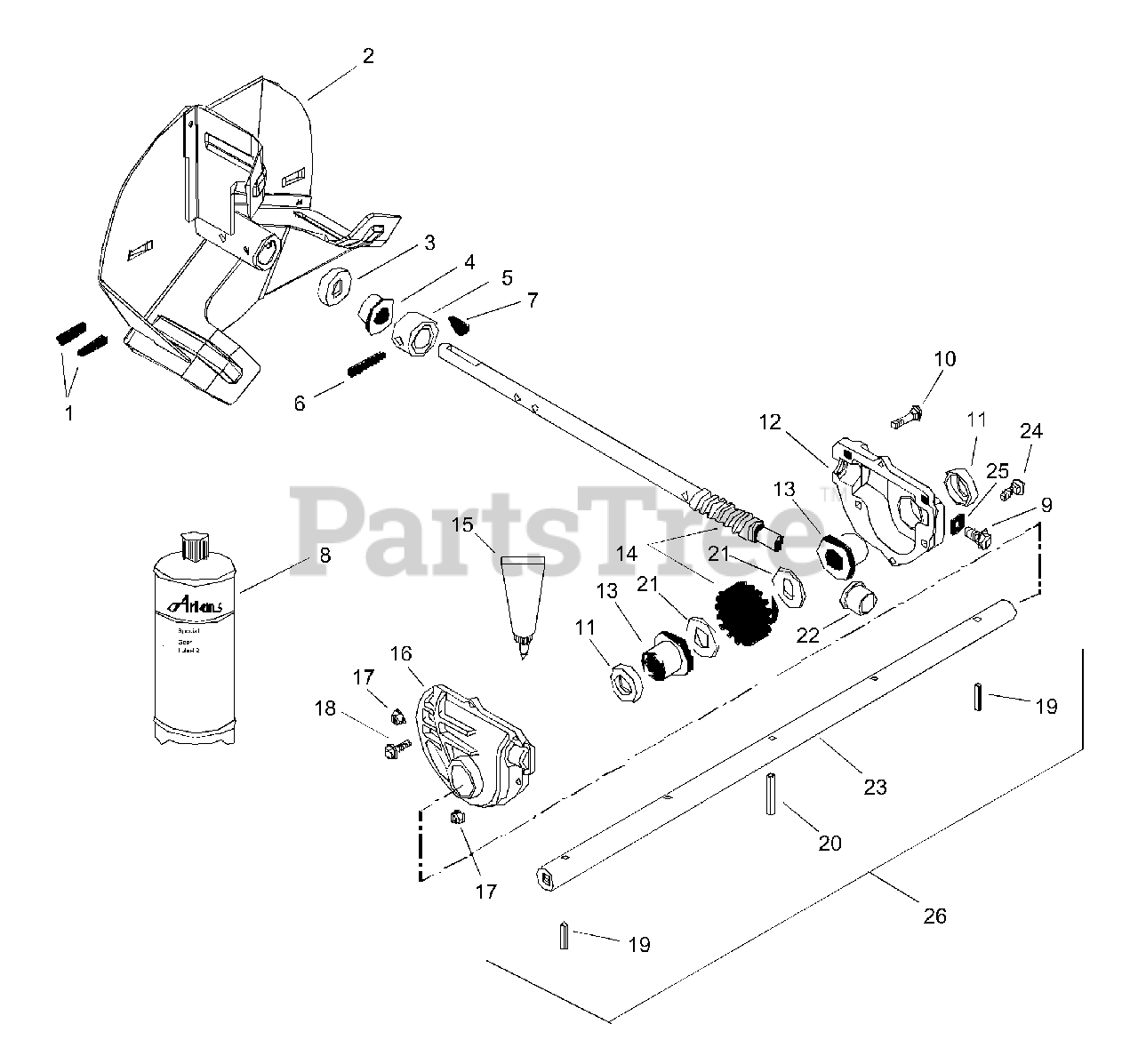

Gear Case-Aluminum Parts Diagram

  • Title

1

Ariens 05803700

PIN-ROLL .250X1.75

$1.49

$

In Stock, Qty 20+

0

2

Ariens 02477200

IMPELLER - .75 ID X 12" OD
(Superseded to 02477251)

$222.99

$

Usually ships in 4-12 days

0

3

Ariens 05618900

SEAL-OIL .750X1.375X.250

$13.99

$

In Stock, Qty 7

0

4

Ariens 05511200

BSHG-FLG .750X1.000X.750X1.250

$12.99

$

In Stock, Qty 5

0

5

Ariens 03210300

THRUST COLLAR

$67.99

$

In Stock, only 2 left!

0

6

Ariens 05804500

PIN-GRV .188X1.25 TP A

$11.99

$

In Stock, only 2 left!

0

7

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$3.99

$

In Stock, Qty 20+

0

8

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

Note: (2 oz. capacity)

$29.99

$

In Stock, Qty 20+

0

9

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0

10

Ariens 06219700

@BLT-RDHDSQNK .25-20X1.25 G5YZ

$5.49

$

Usually ships in 4-12 days

0

11

Ariens 05618800

SEAL-OIL 1.000X1.375X.250

$13.99

$

In Stock, Qty 20+

0

12

Ariens 02470600

CASE, GEAR-LH-LARGE BORE-ALUM.
(Superseded to 52003300)

$117.99

$

In Stock, only 3 left!

0

13

Ariens 05530100

BSHG-FLG 1.00X1.12

$8.49

$

In Stock, Qty 6

0

14

Ariens 52402600

WORM SHAFT & GEAR ASSY

$

$

Not available

15

Ariens 00925700

LOCTITE GASKET 518--850CC CRTG

$

$

Not available

16

Ariens 02470700

CASE, GEAR-RH-LARGE BORE-ALUM.
(Superseded to 52003300)

$117.99

$

In Stock, only 3 left!

0

17

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.99

$

In Stock, Qty 20+

0

18

Ariens 07413000

SCR-TAP 10-24X.75 HWH TR YWZC
(Superseded to 07400118)

$5.49

$

In Stock, Qty 5

0

19

Ariens 05803000

PIN-ROLL .188X1.50

$1.99

$

In Stock, only 4 left!

0

20

Ariens 05806900

PIN-GRV .313X1.44 TP C

$7.49

$

In Stock, only 2 left!

0

21

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$4.99

$

In Stock, Qty 20+

0

22

Ariens 05520600

BSHG-FLG .502X1X.750

$10.99

$

In Stock, only 2 left!

0

23

Ariens 02438300

SHAFT, RAKE - 24"

Note: For models (108, 110, 328)

$

$

Not available

Ariens 02479300

SHAFT, RAKE - 28"

Note: For models (109, 327)

$

$

Not available

24

Ariens 06214400

BLT-RDHDSQSHK .25-20X.88 GR5YW
(Superseded to 06219800)

$2.99

$

In Stock, only 3 left!

0

25

Ariens 06442500

WSHR-FIBER .437X.656X.032

$1.49

$

In Stock, Qty 6

0

26

Ariens 52408100

GEAR CASE-LRG BORE-ALUM.- 24"
(Superseded to 52423000)

Note: (Contains Items 3-6, 9-18, 20-25). For models (108, 110, 328)

$620.99

$

Usually ships in 4-12 days

0

Ariens 52413400

CASE, GEAR-LARGE BORE-28"-ALUM
(Superseded to 52423100)

Note: (Contains Items 3-6, 9-18, 20-25). For models (109, 327)

$649.99

$

Usually ships in 4-12 days

0
