924110 (ST 824 DLE) - Ariens 24" Snow Blower, 8hp Tecumseh (SN: 000101 & Above) Headlight Parts Diagram

24" Snow Blower, 8hp Tecumseh

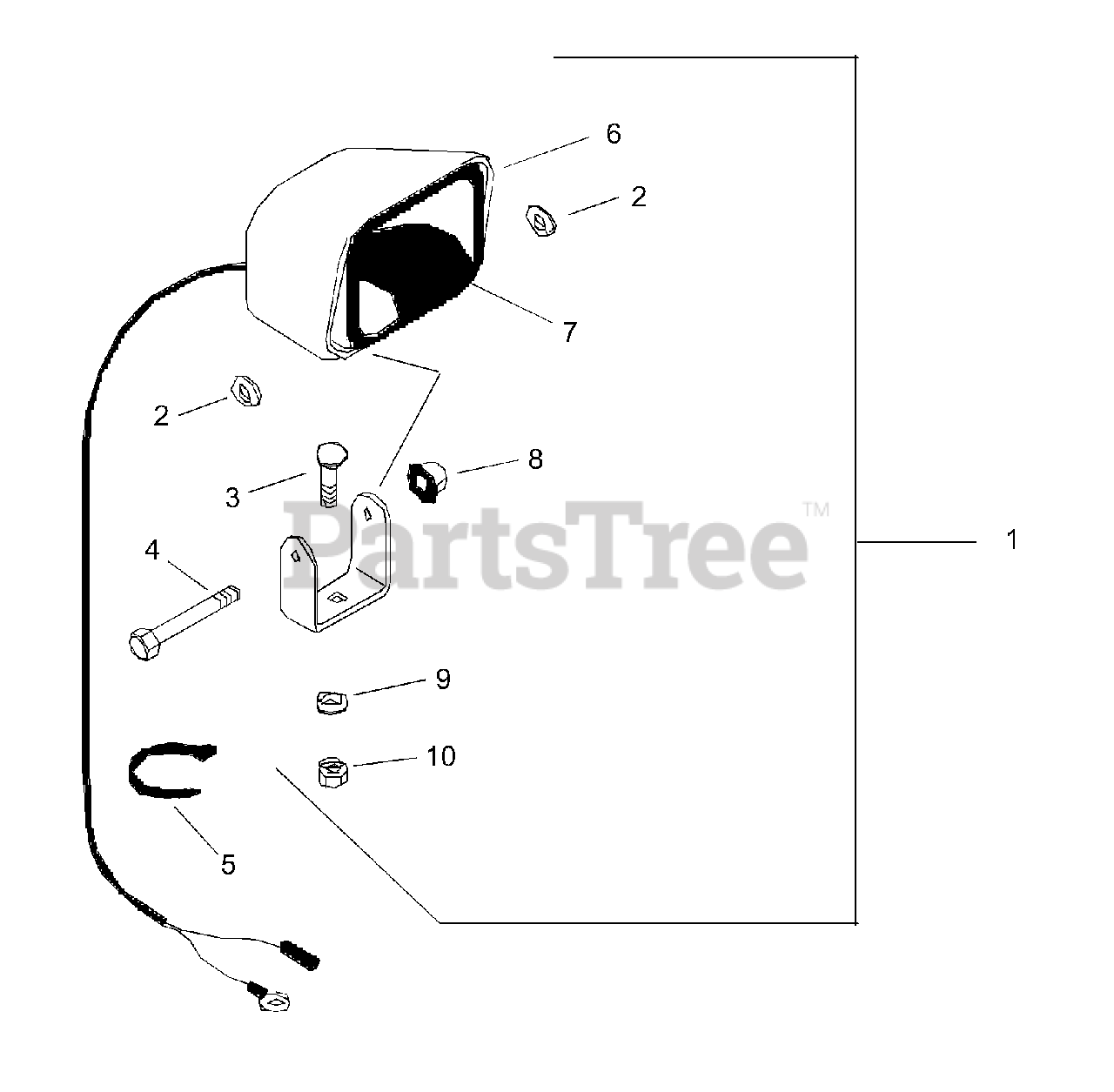

Headlight Parts Diagram

  • Title
1

Ariens 02478100

HEADLIGHT

Note: (Contains 2-4, 6-10)

$

$

Not available

2

Ariens 06307200

@WSHR-LK-EXT.326X.599X.031YWZC
(Superseded to 06300125)

$2.40

$

Usually ships in 4-12 days

0

3

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$2.80

$

In Stock, Qty 16

0

4

Ariens 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$2.52

$

In Stock, Qty 11

0

5

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

6

Ariens 02464900

LENSE-FLOOD

$

$

Not available

$23.42

$

In Stock, only 1 left!

0

8

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.24

$

In Stock, Qty 20+

0

9

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$2.24

$

In Stock, Qty 20+

0

10

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.96

$

In Stock, Qty 20+

0

Ariens 72402500

HEADLIGHT KIT

Note: Kit

$

$

Not available
