924113 (ST 1132 LE) - Ariens 32" Snow Blower, 11hp Tecumseh (SN: 000101 & Above) Discharge Chute Parts Diagram

32" Snow Blower, 11hp Tecumseh

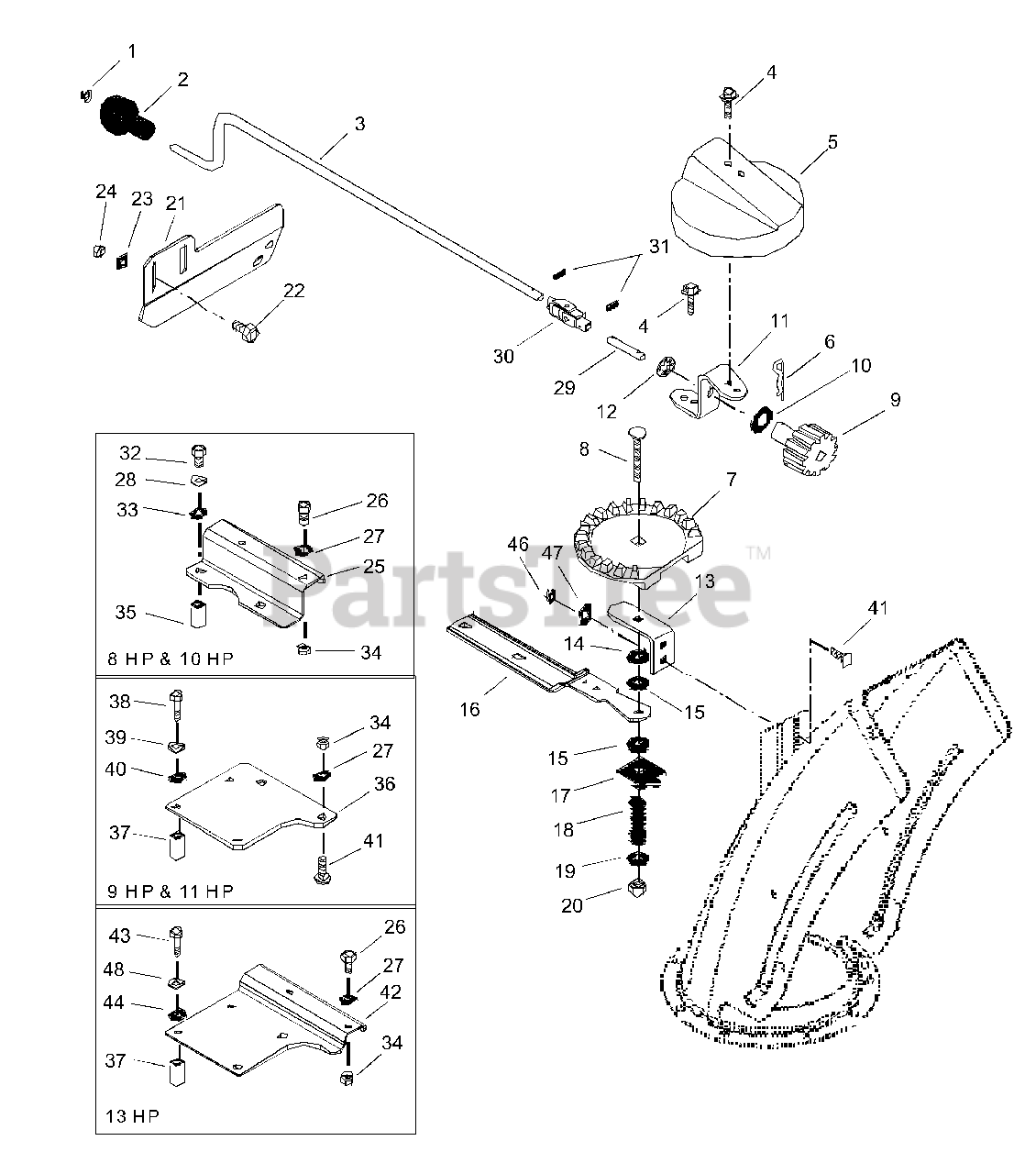

Discharge Chute Parts Diagram

  • Title

1

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, only 1 left!

0

2

Ariens 07508300

KNOB

$14.99

$

In Stock, only 2 left!

0

3

Ariens 02480600

CRANK, CHUTE
(Superseded to 02490700)

$47.99

$

Usually ships in 4-12 days

0

4

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 03223000

GEAR COVER

$13.99

$

In Stock, only 2 left!

0

6

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.99

$

In Stock, only 1 left!

0

7

Ariens 03222900

CHUTE GEAR

$11.99

$

In Stock, Qty 8

0

8

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$4.99

$

In Stock, Qty 10

0

9

Ariens 53204400

PINION GEAR W/BRACKET
(Superseded to 53214200)

Note: (Contains Items 11-13)

$50.99

$

In Stock, only 2 left!

0

10

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 11

0

11

Ariens 03220500

BRACKET-GEAR
(Superseded to 53214200)

$50.99

$

In Stock, only 2 left!

0

12

Ariens 03224300

PUSHNUT .625

$2.49

$

In Stock, Qty 5

0

13

Ariens 03220700

GEAR STRAP
(Superseded to 03220751)

$27.99

$

Usually ships in 4-12 days

0

14

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

15

Ariens 01123800

FRICTION WASHER

$4.99

$

In Stock, Qty 13

0

16

Ariens 02480300

BRACKET, CHUTE SUPPORT
(Superseded to 02480351)

$52.99

$

Usually ships in 4-12 days

0

17

Ariens 03219000

FRICTION PLATE

$32.99

$

In Stock, only 2 left!

0

18

Ariens 08320900

SG-COMP .187X.56X1.62

$5.49

$

In Stock, Qty 6

0

19

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 02480500

BRACKET, CHUTE CRANK
(Superseded to 02480551)

$

$

Not available

22

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

23

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 02480200

BRACKET, ENGINE-8&10
(Superseded to 02496351)

Note: For models (108, 109, 110, 327, 328)

$54.99

$

Usually ships in 4-12 days

0

26

Ariens 05972600

BLT-HEX .31-18X.75 GR5 BLZC
(Superseded to 05947000)

Note: For models (108, 109, 110, 327, 328, 500)

$1.99

$

In Stock, Qty 20+

0

27

Ariens 06445900

WSHR-FL-STL .313X.74X.065 BLZC
(Superseded to 06435800)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 02479700

PIN, CONNECTOR
(Superseded to 02495900)

$145.99

$

Usually ships in 4-12 days

0

30

Ariens 02470400

UNIVERSAL JOINT ASS'Y

$131.99

$

In Stock, only 1 left!

0

31

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 5

0

32

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

Note: For models (108, 109, 110, 327, 328)

$2.99

$

In Stock, Qty 6

0

33

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: For models (108, 109, 110, 327, 328)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 06541100

NUT-LK-CENTER .31-18 BLZC
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

35

Ariens 03233600

SPACER .322X.626X.50

Note: For models (108, 109, 110, 327, 328)

$13.99

$

Usually ships in 4-12 days

0

36

Ariens 02480700

BRACKET, ENGINE
(Superseded to 02480751)

Note: For models (824012, 112, 113, 329, 330)

$19.99

$

Usually ships in 4-12 days

0

37

Ariens 02480900

SPACER, TUBE
(Superseded to 02495100)

Note: For models (824012, 112, 113, 329, 330)

$

$

Not available

38

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: For models (824012, 112, 113, 329, 330, 500)

$1.49

$

In Stock, Qty 12

0

39

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

Note: For models (824012, 112, 113, 329, 330)

$0.99

$

In Stock, Qty 11

0

40

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: For models (824012, 112, 113, 329, 330)

$0.99

$

In Stock, only 3 left!

0

41

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

42

Ariens 02480800

BRACKET, ENGINE-13 HP
(Superseded to 02480851)

Note: For model (500)

$

$

Not available

43

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: For model (500)

$1.49

$

In Stock, Qty 12

0

44

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: For model (500)

$0.99

$

In Stock, only 3 left!

0

45

Ariens 06206700

BLT-RDHDSQNK .31-18X.75 PL BL
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

46

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 8

0

47

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

48

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

Note: For model (500)

$0.99

$

In Stock, Qty 11

0
