924116 (ST 1028) - Ariens 28" Snow Blower, 10hp Tecumseh (SN: 000101 & Above) Wheels And Axle Parts Diagram

28" Snow Blower, 10hp Tecumseh

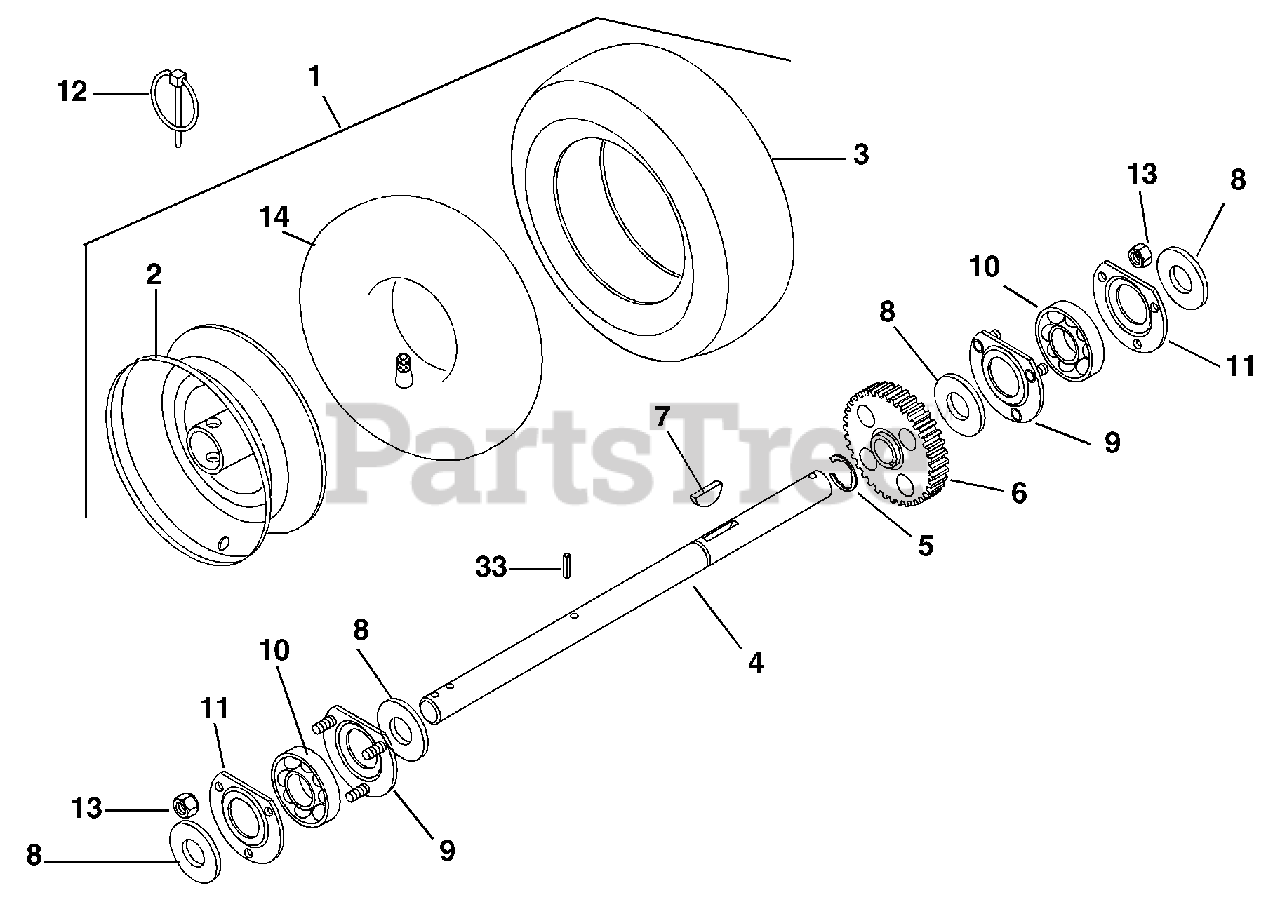

Wheels And Axle Parts Diagram

  • Title

1

Ariens 07150300

TIRE/WHEEL ASSEMBLY 16X6.50-8

Note: (Model 116)

$137.99

$

Usually ships in 4-12 days

0

2

Ariens 07150500

WHL 6.50X8
(Superseded to 07150300)

Note: (Model 116)

$137.99

$

Usually ships in 4-12 days

0

3

Ariens 07121600

TIRE 16X6.50-8 SNO-HOG TREAD
(Superseded to 07124000)

Note: (Models 116, 505, 506, 507, 508)

$

$

Not available

4

Ariens 02483200

SHAFT, AXLE

Note: (Model 116)

$93.99

$

Usually ships in 4-12 days

0

5

Ariens 05718400

RG-RTNG-EXT. .875X.050

Note: (Model 116)

$

$

Not available

6

Ariens 02439600

GEAR, SPUR

Note: (Model 116)

$87.99

$

In Stock, only 1 left!

0

7

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

Note: (Model 116)

$3.99

$

In Stock, only 1 left!

0

8

Ariens 06436900

WSHR-FL-STL .880X1.250X.062YWZ

Note: (Model 116)

$2.49

$

In Stock, Qty 6

0

9

Ariens 00301700

BEARING FLANGE

Note: (Model 116)

$17.99

$

In Stock, only 2 left!

0

10

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

Note: (Model 116)

$37.99

$

In Stock, only 3 left!

0

11

Ariens 01014200

BEARING FLANGE

Note: (Model 116)

$6.49

$

In Stock, Qty 6

0

12

Ariens 07053700

PIN-LOK .31X1.75

Note: (Model 116)

$2.99

$

In Stock, only 4 left!

0

13

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (Model 116)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 07108700

TUBE

Note: (Models 116, 505, 506, 507, 508)

$36.99

$

Usually ships in 4-12 days

0

33

Ariens 05803000

PIN-ROLL .188X1.50

$1.49

$

In Stock, only 2 left!

0
