924127 (ST 11528 DLE) - Ariens 28" Snow Blower, 11.5hp Tecumseh (SN: 000101 & Above) Handlebars, Lever Controls, Panel And Dash Parts Diagram

28" Snow Blower, 11.5hp Tecumseh

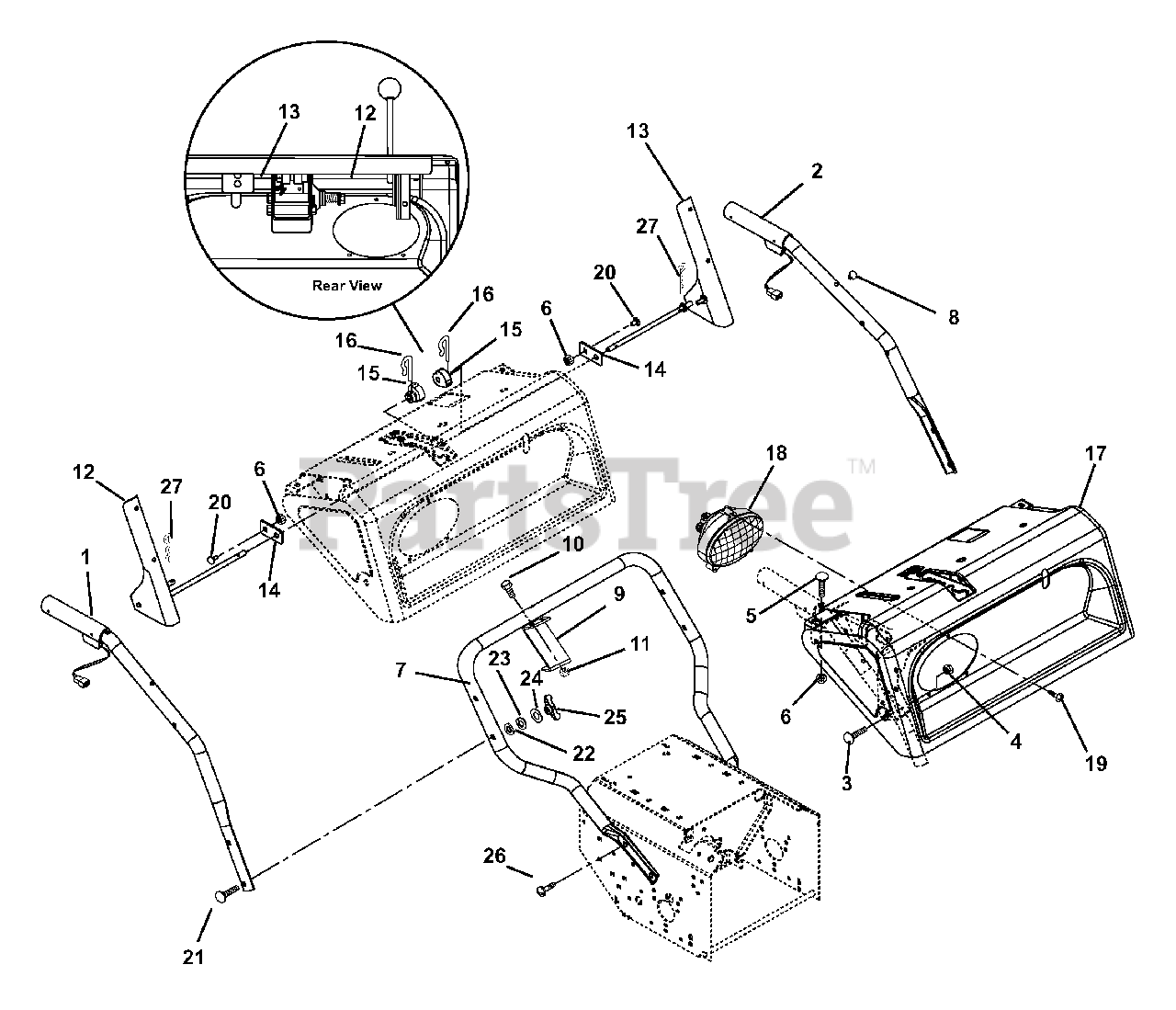

Handlebars, Lever Controls, Panel And Dash Parts Diagram

  • Title

1

Ariens 52415100

HANDLEBAR, UPPER RH

Note: (Includes Hand Warmer)

$

$

Not available

2

Ariens 52415200

HANDLEBAR, UPPER LH

Note: (Includes Hand Warmer)

$135.99

$

Usually ships in 4-12 days

0

3

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$3.49

$

In Stock, Qty 10

0

4

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

5

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.99

$

In Stock, only 2 left!

0

6

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 02491851

HANDLEBAR, LOWER

$246.99

$

Usually ships in 4-12 days

0

8

Ariens 07511800

BUMPER

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 00292751

BRACKET, CHUTE CABLE

Note: (924124, 125, 126, 127, 128, 335, 336, 337, 338, 516, 517)

$

$

Not available

10

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

Note: (924124, 125, 126, 127, 128, 335, 336, 337, 338, 516, 517)

$1.99

$

In Stock, Qty 5

0

11

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (924124, 125, 126, 127, 128, 335, 336, 337, 338, 516, 517)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 52419900

KIT, RH LEVER W/GRIP

$65.99

$

In Stock, Qty 19

0

13

Ariens 52419800

KIT, LH LEVER W/GRIP

$79.99

$

In Stock, only 2 left!

0

14

Ariens 00184751

BRACKET, RETAINING

$24.99

$

In Stock, only 1 left!

0

15

Ariens 02492100

CAM, INTERLOCK
(Superseded to 03888100)

$8.49

$

In Stock, only 2 left!

0

16

Ariens 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 19

0

17

Ariens 52420000

PANEL, W/CONTROL DECAL

Note: (924124, 125, 126, 127, 128, 335, 336, 337, 338)

$263.99

$

Usually ships in 4-12 days

0

Ariens 52420100

PANEL, W/CONTROL DECAL

Note: (924516)

$

$

Not available

Ariens 52420200

PANEL, W/CONTROL DECAL

Note: (924517)

$

$

Not available

Ariens 52420300

PANEL, W/CONTROL DECAL-BRUSH

Note: (924518)

$143.99

$

Usually ships in 4-12 days

0

18

Ariens 02485000

HEADLAMP, OVAL W/ 1156 BULB
(Superseded to 52423200)

$58.99

$

Usually ships in 4-12 days

0

19

Ariens 07416700

SCR-TAP 10-16X.75 HI-LO PPH

$0.99

$

Usually ships in 4-12 days

0

20

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$3.49

$

Usually ships in 4-12 days

0

22

Ariens 06446800

WASHER,SADDLE-.320 X.937 X.062

$0.99

$

Usually ships in 4-12 days

0

23

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, only 3 left!

0

24

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

25

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

26

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.99

$

In Stock, only 3 left!

0

27

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 5

0
