924312 (ST 924) - Ariens 24" Snow Blower, 9hp Tecumseh (SN: 000150 & Above) Gear Case Aluminum Parts Diagram

24" Snow Blower, 9hp Tecumseh

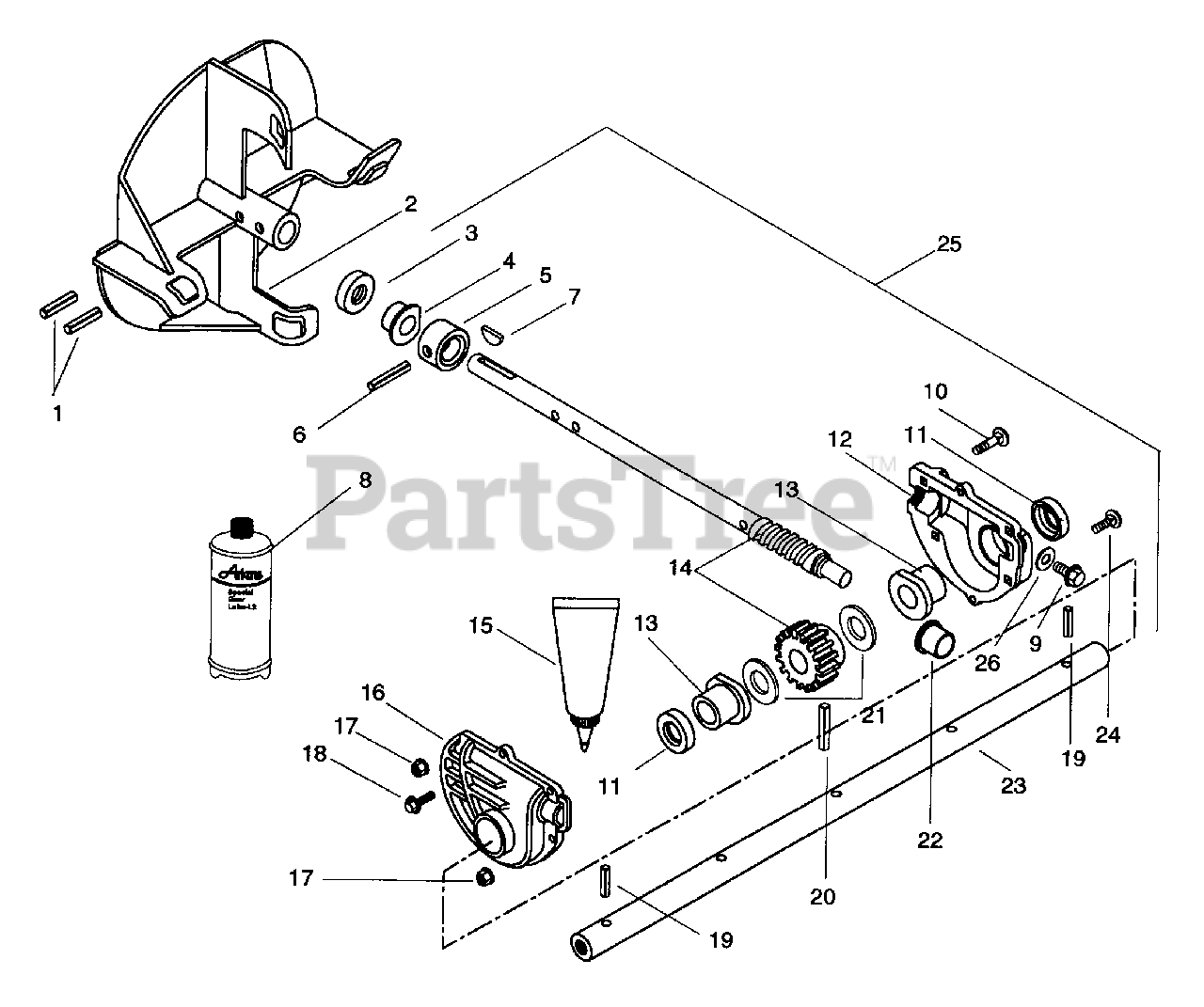

Gear Case Aluminum Parts Diagram

  • Title

1

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 11

0

2

Ariens 02423700

FAN - 12"
(Superseded to 02423751)

$264.99

$

In Stock, only 1 left!

0

3

Ariens 05618900

SEAL-OIL .750X1.375X.250

$12.99

$

In Stock, only 4 left!

0

4

Ariens 05511200

BSHG-FLG .750X1.000X.750X1.250

$11.99

$

In Stock, Qty 10

0

5

Ariens 03210300

THRUST COLLAR

$63.99

$

Usually ships in 4-12 days

0

6

Ariens 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, Qty 12

0

7

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$3.49

$

In Stock, Qty 8

0

8

Ariens 00008100

BOTTLE ONLY-S.SCREEN.FOR NO.80

$

$

Not available

9

Ariens 07401600

SCR-TAP .375-16X .50 HWH PL TR
(Superseded to 07412900)

$1.99

$

In Stock, Qty 15

0

10

Ariens 06200100

BLT-RDHDSQNK .25-20X1.25 GR5PL
(Superseded to 06219700)

$4.99

$

Usually ships in 4-12 days

0

11

Ariens 05618800

SEAL-OIL 1.000X1.375X.250

$12.99

$

In Stock, only 4 left!

0

12

Ariens 02470600

CASE, GEAR-LH-LARGE BORE-ALUM.
(Superseded to 52003300)

$107.99

$

Usually ships in 4-12 days

0

13

Ariens 05530100

BSHG-FLG 1.00X1.12

$7.49

$

In Stock, only 2 left!

0

14

Ariens 52402600

WORM SHAFT & GEAR ASSY

$

$

Not available

15

Ariens 00031700

LOCTITE 518 GASKET--6ML TUBE

$19.99

$

In Stock, Qty 7

0

16

Ariens 02470700

CASE, GEAR-RH-LARGE BORE-ALUM.
(Superseded to 52003300)

$107.99

$

Usually ships in 4-12 days

0

17

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 07402700

SCR-TAP 10-24X.75 HWH PL TR
(Superseded to 07413000)

$3.99

$

In Stock, Qty 6

0

19

Ariens 05803000

PIN-ROLL .188X1.50

$1.49

$

In Stock, only 2 left!

0

20

Ariens 05806900

PIN-GRV .313X1.44 TP C

$6.49

$

In Stock, Qty 12

0

21

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$3.49

$

In Stock, Qty 20+

0

22

Ariens 05520600

BSHG-FLG .502X1X.750

$9.99

$

In Stock, only 2 left!

0

23

Ariens 02438300

SHAFT, RAKE - 24"

$

$

Not available

24

Ariens 06205400

BLT-RDHDSQNK .25-20X.88 PL
(Superseded to 06219800)

$2.49

$

Usually ships in 4-12 days

0

25

Ariens 52408100

GEAR CASE-LRG BORE-ALUM.- 24"
(Superseded to 52423000)

$593.99

$

Usually ships in 4-12 days

0

26

Ariens 06442500

WSHR-FIBER .437X.656X.032

$0.99

$

In Stock, only 2 left!

0
