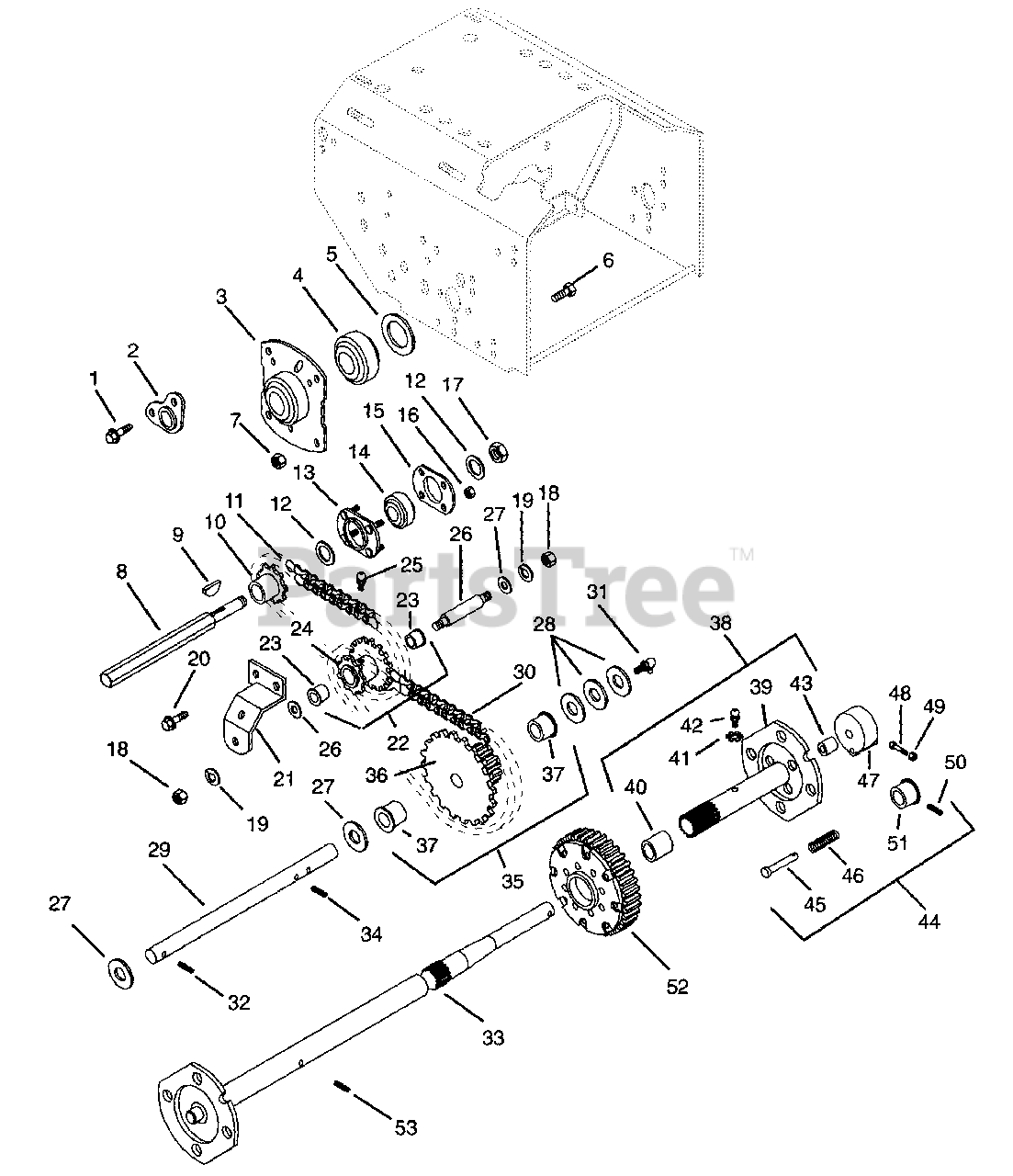

924319 (ST 924 E) - Ariens 24" Snow Blower, 9hp Tecumseh (SN: 000101 & Above) Reduction Drive Parts Diagram

24" Snow Blower, 9hp Tecumseh

Reduction Drive Parts Diagram

  • Title

1

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 02407700

SUPPORT, SHAFT

$21.99

$

Usually ships in 4-12 days

0

3

Ariens 02457800

BEARING RETAINER

$17.99

$

Usually ships in 4-12 days

0

4

Ariens 05417700

BRG-BALL 1.13X2.19X.63

$30.99

$

In Stock, only 2 left!

0

5

Ariens 06437400

WSHR-FL-STL 1.140X1.718X.134YZ

Note: (100,101,102,103,104,105,106,317,318,319)

$

$

Not available

6

Ariens 07028600

BLT-SERNK SL .25-20X.50 YWZC

$3.99

$

In Stock, Qty 6

0

7

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 02404500

HEX SHAFT

$373.99

$

Usually ships in 4-12 days

0

9

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.99

$

In Stock, only 2 left!

0

10

Ariens 01027600

9 TOOTH SPROCKET

$43.99

$

Usually ships in 4-12 days

0

11

Ariens 02457900

ROLLER CHAIN #41 22 PITCHES
(Superseded to 02407300)

$25.99

$

Usually ships in 4-12 days

0

12

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

In Stock, Qty 20+

0

13

Ariens 00308500

BEARING FLANGE

$23.99

$

In Stock, only 2 left!

0

14

Ariens 05407900

BRG-BALL .500X1.375X.437
(Superseded to 05408000)

$6.99

$

In Stock, Qty 20+

0

15

Ariens 02414100

BEARING FLANGE

$19.99

$

In Stock, only 2 left!

0

16

Ariens 06530600

NUT-LK-DUAL FACE 10-24 YWZC

$0.99

$

In Stock, only 3 left!

0

17

Ariens 06530000

NUT-LK-CTR .50-20 YWZC

$2.99

$

Usually ships in 4-12 days

0

18

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06306700

WSHR-LK .375X.130 YWZC

$3.99

$

In Stock, only 1 left!

0

20

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 02436600

SUPPORT, SHAFT

$

$

Not available

22

Ariens 52405200

SPROCKET ASSEMBLY

Note: (Contains Items 23-25)

$258.99

$

Usually ships in 4-12 days

0

23

Ariens 05504000

BSHG-SLV .500X.625X.500 BR

$13.99

$

In Stock, only 2 left!

0

24

Ariens 02447400

REDUCTION SPROCKET
(Superseded to 52405200)

$258.99

$

Usually ships in 4-12 days

0

25

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

26

Ariens 02447500

REDUCTION SHAFT

$

$

Not available

27

Ariens 06409300

WSHR-FL-STL .382X.812X.062
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

28

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 12

0

29

Ariens 02436700

PINION SHAFT
(Superseded to 52422500)

$40.99

$

Usually ships in 4-12 days

0

30

Ariens 02458000

ROLLER CHAIN #41 38 PITCHES
(Superseded to 02407400)

$31.99

$

Usually ships in 4-12 days

0

31

Ariens 01313600

HYDRAULIC DRIVE FITTING
(Superseded to 07029700)

$12.99

$

Usually ships in 4-12 days

0

32

Ariens 05802900

PIN-ROLL .156X1.00

$0.99

$

In Stock, Qty 16

0

33

Ariens 02437100

R H AXLE
(Superseded to 02475700)

Note: (101,102,103,104,317,320,321,322)

$363.99

$

Usually ships in 4-12 days

0

Ariens 02440900

R H AXLE
(Superseded to 02475800)

Note: (100,105,318,319)

$345.99

$

In Stock, only 1 left!

0

Ariens 02472400

AXLE, R.H.
(Superseded to 02475300)

Note: (106)

$

$

Not available

34

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, only 4 left!

0

35

Ariens 52403200

PINION & SPROCKET ASSEMBLY

Note: (Contains Items 36,37)

$

$

Not available

36

Ariens 02436800

PINION & SPROCKET
(Superseded to 52403200)

$

$

Not available

37

Ariens 05502600

BSHG-FLG .625X.750X.500X.875BR
(Superseded to 05500111)

$2.49

$

In Stock, Qty 20+

0

38

Ariens 52405400

L.H. AXLE ASSEMBLY

Note: (Contains Items 39-43); (101,102,103,104,317,320,321,322)

$217.99

$

Usually ships in 4-12 days

0

Ariens 52409100

ASSEMBLY, LEFT HAND AXLE

Note: (Contains Items 39-43); (106)

$171.99

$

Usually ships in 4-12 days

0

Ariens 52405500

L.H.AXLE ASSEMBLY

Note: (Contains Items 39-43); (100,105,318,319)

$202.99

$

In Stock, only 1 left!

0

39

Ariens 02437000

L H AXLE
(Superseded to 52405400)

Note: (101,102,103,104,317,320,321,322)

$217.99

$

Usually ships in 4-12 days

0

Ariens 02441000

L H AXLE
(Superseded to 52405500)

Note: (100,105,318,319)

$202.99

$

In Stock, only 1 left!

0

Ariens 02472300

AXLE, L.H.
(Superseded to 02475400)

Note: (106)

$

$

Not available

40

Ariens 05505700

BSHG-SLV .750X.814X .750 BRZ

$17.99

$

In Stock, only 2 left!

0

41

Ariens 06300700

WSHR-LK .625X.156 MED PL
(Superseded to 06309500)

$2.49

$

Usually ships in 4-12 days

0

42

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

43

Ariens 05502900

BSHG-SLV .562X.625X.625 BRZ

$14.99

$

In Stock, Qty 6

0

44

Ariens 52405900

LOCKOUT HUB ASSEMBLY

Note: (Contains Items 45-51)

$135.99

$

Usually ships in 4-12 days

0

45

Ariens 01037400

PIN

$17.99

$

Usually ships in 4-12 days

0

46

Ariens 08300700

SG-COMP .028X.34X1.062 WLD75

$6.49

$

Usually ships in 4-12 days

0

47

Ariens 01037200

LOCKOUT HUB

$87.99

$

Usually ships in 4-12 days

0

48

Ariens 05948100

BLT-HEX .25-20X2.0 PL GR8 YWZC

$6.99

$

In Stock, only 2 left!

0

49

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

50

Ariens 05803200

PIN-ROLL .093X1.00

$0.99

$

Usually ships in 4-12 days

0

51

Ariens 01037500

KNOB

$54.99

$

Usually ships in 4-12 days

0

52

Ariens 52405300

DIFFERENTIAL ASSEMBLY

$610.99

$

Usually ships in 4-12 days

0

53

Ariens 05803000

PIN-ROLL .188X1.50

$1.49

$

In Stock, only 2 left!

0
