924327 (ST 1028 SLE) - Ariens 28" Snow Blower, 10hp Tecumseh (SN: 000101 & Above) Auger And Battery Parts Diagram

28" Snow Blower, 10hp Tecumseh

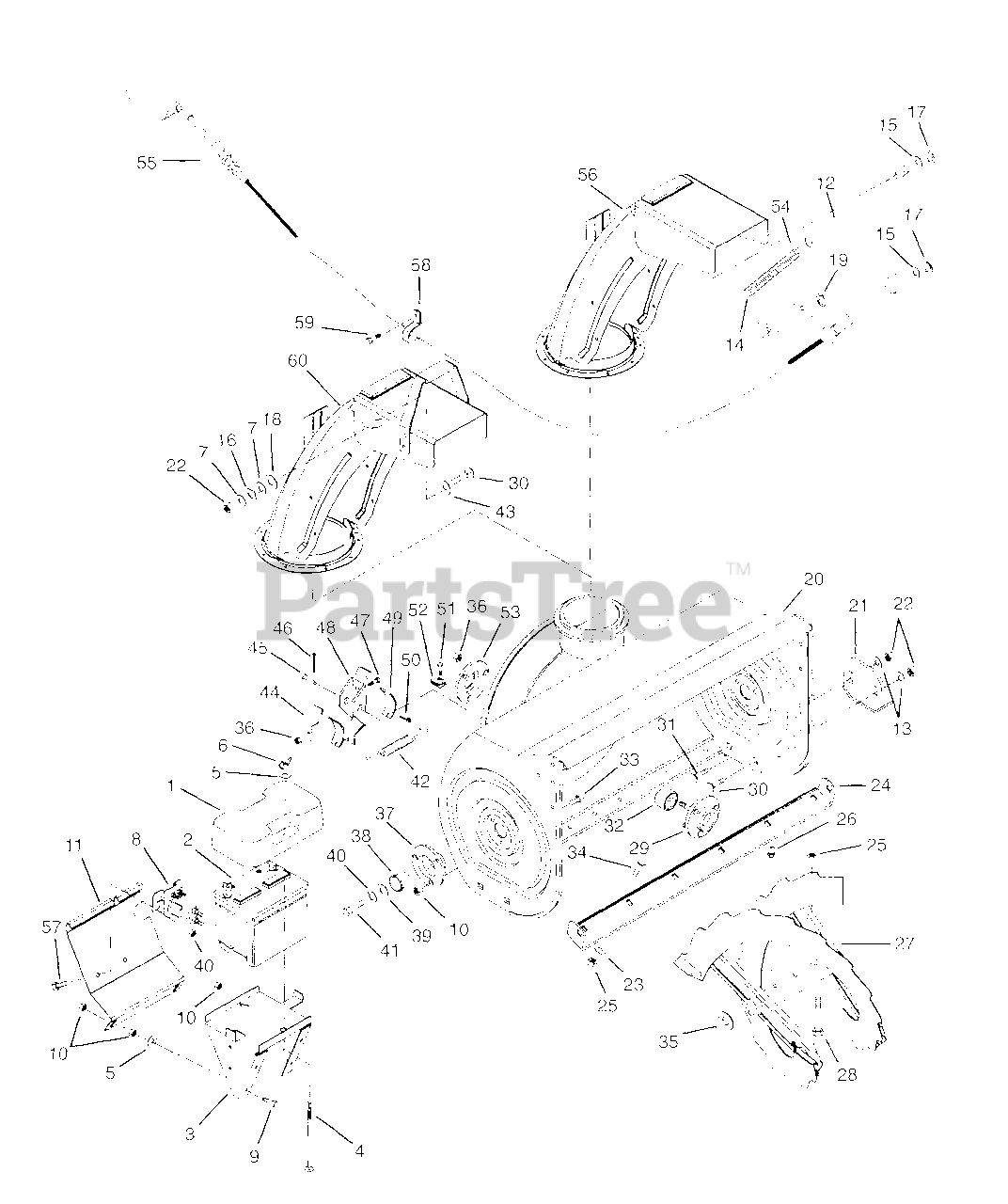

Auger And Battery Parts Diagram

  • Title
1

Ariens 09032300

COVER, BATTERY
(Superseded to 04912900)

Note: For model (500)

$9.45

$

In Stock, Qty 8

0

2

Ariens 03055700

BATTERY
(Superseded to 53123300)

Note: For model (500)

$

$

Not available

3

Ariens 02403159

TRAY, BATTERY

Note: For model (500)

$21.91

$

Usually ships in 4-12 days

0

4

Ariens 06220400

@BLT-RDHDSQNK .25-20X7.00 G2YZ
(Superseded to 06200229)

$4.30

$

In Stock, only 2 left!

0

5

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$1.96

$

In Stock, Qty 20+

0

6

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.42

$

In Stock, Qty 20+

0

7

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: For models (108, 110, 112, 328, 329, 824012)

$2.52

$

In Stock, Qty 20+

0

8

Ariens 03551000

SOLENOID

$18.95

$

Usually ships in 5-11 days

0

9

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.79

$

In Stock, Qty 13

0

10

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.96

$

In Stock, Qty 20+

0

11

Ariens 02477559

COVER, SOLENOID - ARIENS

Note: For model (500)

$

$

Not available

12

Ariens 02479800

ROD, CHUTE

Note: For models (109, 113, 327, 330, 500)

$22.08

$

In Stock, only 3 left!

0

13

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$2.24

$

In Stock, Qty 20+

0

14

Ariens 08335200

SPRING, COMP. .08 X .40 X 7.15

Note: For models (109, 113, 327, 330, 500)

$20.07

$

In Stock, only 1 left!

0

15

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: For models (109, 113, 327, 330, 500)

$1.96

$

In Stock, Qty 20+

0

16

Ariens 01320200

WAVE WASHER .390X.655X.110

Note: For models (108, 110, 112, 328, 329, 824012)

$3.30

$

In Stock, only 2 left!

0

17

Ariens 05718500

RG-RTNG-EXT .218X.035 TYPE E

Note: For models (109, 113, 327, 330, 500)

$3.63

$

In Stock, Qty 12

0

18

Ariens 06416800

WSHR-PLASTIC .390X.875X.062
(Superseded to 06433600)

Note: For models (108, 110, 112, 328, 329, 824012)

$1.40

$

In Stock, Qty 20+

0

19

Ariens 05710600

RG-RTNG-EXT .375X.035 TYP E

$1.96

$

In Stock, Qty 20+

0

20

Ariens 52411700

HOUSING, 24" BLOWER

Note: For models (108, 110, 328)

$

$

Not available

20

Ariens 52412000

HOUSING, 28" BLOWER

Note: For models (112, 329, 824012)

$

$

Not available

20

Ariens 52412100

HOUSING, 28" BLOWER
(Superseded to 52414200)

Note: For model (109)

$635.02

$

Usually ships in 4-12 days

0

20

Ariens 52412400

HOUSING, 32" BLOWER

Note: For models (113, 330)

$

$

Not available

20

Ariens 52412700

HOUSING, 36" BLOWER

Note: For model (500)

$571.52

$

Usually ships in 4-12 days

0

21

Ariens 02459959

RUNNER
(Superseded to 02483859)

Note: For models (108-110, 112, 113, 327-330, 824012)

$17.83

$

In Stock, Qty 20+

0

21

Ariens 03075559

RUNNER - SKID SHOE

Note: For model (500)

$35.72

$

In Stock, only 1 left!

0

22

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$2.24

$

In Stock, Qty 20+

0

23

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: For model (824012)

$2.18

$

In Stock, Qty 20+

0

23

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: For models (113, 330)

$2.18

$

In Stock, Qty 20+

0

23

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: For model (500)

$2.18

$

In Stock, Qty 20+

0

24

Ariens 01016400

SCRAPER BLADE 24"
(Superseded to 01016459)

Note: For models (108, 110, 328)

$30.69

$

In Stock, Qty 19

0

24

Ariens 02479100

BLADE, SCRAPER - 28"
(Superseded to 02479159)

Note: For models (109, 327)

$30.69

$

In Stock, only 1 left!

0

24

Ariens 00620159

BLADE, SCRAPPER - 28"

Note: For models (112, 329, 824012)

$54.06

$

In Stock, only 1 left!

0

24

Ariens 00620859

BLADE, 32" SCRAPPER

Note: For models (113, 330)

$54.06

$

In Stock, only 3 left!

0

24

Ariens 03519259

BLADE, SCRAPPER - 36"

Note: For model (500)

$58.08

$

In Stock, only 3 left!

0

25

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: For models (824012, 108-110, 327-329)

$2.52

$

In Stock, Qty 20+

0

25

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: For models (113, 330)

$2.52

$

In Stock, Qty 20+

0

25

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: For model (500)

$2.52

$

In Stock, Qty 20+

0

26

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC

$3.63

$

In Stock, Qty 16

0

27

Ariens 52410700

RAKE, LEFT-28"(1"ID X 15.75OD)

Note: For models (824012, 112, 329)

$

$

Not available

27

Ariens 52410800

RAKE, RIGHT-28"(1ID X 15.75OD)

Note: For models (824012, 112, 329)

$265.40

$

Usually ships in 4-12 days

0

27

Ariens 52411600

RAKE, RIGHT-24"(1ID X 14.75OD)

Note: For models (108, 110)

$276.84

$

In Stock, only 1 left!

0

27

Ariens 52411500

RAKE, LEFT-24"(1"ID X 14.75OD)

Note: For models (108, 110)

$265.40

$

Usually ships in 4-12 days

0

27

Ariens 52411800

RAKE, LEFT-28"(1"ID X 14.75OD)

Note: For models (109, 327)

$422.60

$

Usually ships in 4-12 days

0

27

Ariens 52411900

RAKE, RIGHT-28"(1ID X 14.75OD)

Note: For models (109, 327)

$307.32

$

Usually ships in 4-12 days

0

27

Ariens 52412200

RAKE, LEFT-32"(1"ID X 15.75OD)

Note: For models (113, 330)

$349.24

$

Usually ships in 4-12 days

0

27

Ariens 52412300

RAKE, RIGHT-32"(1ID X 15.75OD)

Note: For models (113, 330)

$349.24

$

Usually ships in 4-12 days

0

27

Ariens 52412500

RAKE, LEFT-36"(1"ID X 15.75OD)

Note: For model (500)

$

$

Not available

27

Ariens 52412600

RAKE, RIGHT-36"(1ID X 15.75OD)

Note: For model (500)

$

$

Not available

28

Ariens 51001500

SHEAR BOLT SERVICE ASSEMBLY

Note: (Contains Item 30)

$4.42

$

In Stock, Qty 20+

0

29

Ariens 00301700

BEARING FLANGE

Note: For models (108, 109, 110, 112, 327, 328, 824012)

$20.07

$

In Stock, Qty 5

0

29

Ariens 03086200

BEARING FLANGE

Note: For model (500)

$22.08

$

In Stock, only 1 left!

0

30

Ariens 06211800

BLT-RHHDSQSHNK .38-16X.75 G2YZ
(Superseded to 06200336)

$2.80

$

In Stock, Qty 20+

0

31

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$2.80

$

In Stock, Qty 20+

0

32

Ariens 05418200

BRG-BALL1.0X2.0X.56

Note: For model (500)

$29.01

$

In Stock, only 1 left!

0

32

Ariens 05406300

BRG-BALL .750X1.750X.50

Note: For models (108-110, 112, 113, 327-330)

$22.30

$

In Stock, Qty 12

0

33

Ariens 07028600

BLT-SERNK SL .25-20X.50 YWZC

$3.63

$

In Stock, Qty 7

0

34

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

Note: For models (824012, 108-110, 112, 327-329)

$2.46

$

In Stock, Qty 20+

0

34

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

Note: For models (113, 330)

$2.46

$

In Stock, Qty 20+

0

34

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

Note: For model (500)

$2.46

$

In Stock, Qty 20+

0

35

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$2.52

$

In Stock, Qty 20+

0

36

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$2.24

$

In Stock, Qty 20+

0

37

Ariens 02437451

BEARING SUPPORT
(Superseded to 02437400)

$

$

Not available

38

Ariens 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$9.45

$

In Stock, Qty 20+

0

39

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.63

$

In Stock, Qty 20+

0

40

Ariens 06306600

WSHR-LK .500X.151 HVY YWZC
(Superseded to 06300117)

$2.52

$

In Stock, Qty 5

0

41

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.91

$

In Stock, Qty 8

0

42

Ariens 08316400

SG-TENS .062X.56X8.0 WLD 11
(Superseded to 08300538)

$11.12

$

In Stock, Qty 14

0

43

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

Note: For models (824012, 108, 110, 112, 328, 329)

$2.24

$

In Stock, Qty 10

0

44

Ariens 02440500

ARM EXTENSION
(Superseded to 02440551)

Note: For models (108, 109, 110, 327, 328)

$14.48

$

Usually ships in 4-12 days

0

45

Ariens 02448100

PIN-CLEV .371X1.16 YWZC

$3.30

$

Usually ships in 4-12 days

0

46

Ariens 06707500

@PIN-CTR .06X.75 EXTPRSQCT YWZ

$1.40

$

Usually ships in 5-11 days

0

47

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: For models (108, 109, 110, 327, 328)

$1.79

$

In Stock, Qty 13

0

48

Ariens 52404800

BRAKE ARM ASSEMBLY

Note: (Contains Items 49, 50)

$25.77

$

In Stock, only 1 left!

0

49

Ariens 02217800

BRAKE LINING

$8.89

$

In Stock, only 1 left!

0

50

Ariens 06806700

RVT-TBLR .187X.437 RH ST PL

$1.96

$

In Stock, Qty 5

0

51

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$2.80

$

In Stock, Qty 20+

0

52

Ariens 07002600

NUT-RETNR .38-16 TINRMAN

$5.53

$

In Stock, Qty 14

0

53

Ariens 01014200

BEARING FLANGE

Note: For models (824012, 108-110, 112, 113, 327-330)

$12.24

$

In Stock, Qty 11

0

53

Ariens 03086100

BEARING FLANGE

Note: For model (500)

$13.47

$

In Stock, only 1 left!

0

54

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: For models (109, 113, 327, 330, 500)

$2.52

$

In Stock, Qty 20+

0

55

Ariens 06943200

CABLE-DEFLECTOR CONTROL
(Superseded to 06945700)

Note: For models (109, 113, 327, 330, 500)

$74.85

$

In Stock, only 1 left!

0

56

Ariens 02401400

CLEVIS PIN

Note: For models (109, 113, 327, 330, 500)

$

$

Not available

57

Ariens 06712400

@PIN-CTR .06X.50 EXTPRSQCT YWZ

$3.58

$

Usually ships in 4-12 days

0

58

Ariens 06908200

CLAMP, CUSHIONED STEEL

$5.53

$

Usually ships in 4-12 days

0

59

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$2.18

$

In Stock, only 3 left!

0

60

Ariens 52411300

CHUTE, DISCHARGE W/CAP & DECAL
(Superseded to 52410900)

Note: For models (824012, 108, 110, 112, 328, 329)

$64.51

$

Usually ships in 4-12 days

0

61

Ariens 52411400

CHUTE, DISCHARGE W/CAP & DECAL

Note: For models (109, 113, 327, 330, 500)

$

$

Not available

62

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$1.96

$

In Stock, Qty 20+

0
